Growatt MAX Series User Manual

Multiple inverters
GPRS/4G
ShineMaster
Connecting communication cable
router
Connecting communication cable
Connecting
communication
cable
Connecting communication cable
4G/GPRS 4G/GPRS
Computer
Phone
Pad
I n t e r n e t
DB
data storage
RS 485
···n
Computer
39
40

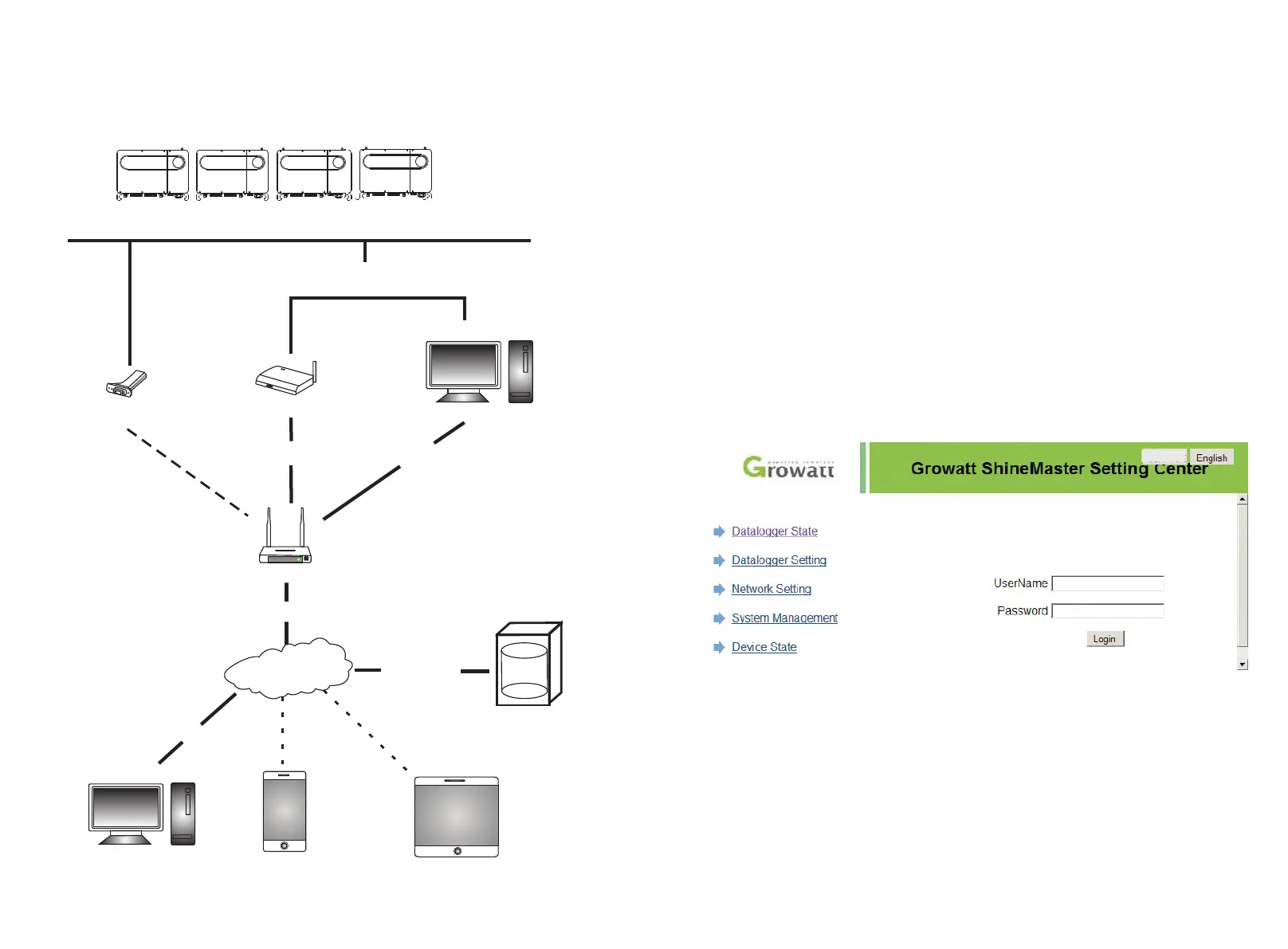

The system framework of communication monitoring is shown in the figure below.
Users can choose the most suitable monitoring method according to the actual
situation.
Fig 8.25
1>ShineMaster IP Address query
A.The PC and shinemaster lan ports are connected to the router's port through the
network cable, so that they are in the same local area network.
B. Go to the router's management page and check the "Internet host list" to query the IP
address of the ShineMaster serial number as the name of the connected device. This IP is
the IP address assigned by the router to the ShineMaster. If you do not know how to do
this, contact your network administrator for operation.
Note: The router needs to enable automatic IP assignment, that is, open the DHCP
function.
C. Enter the shinemaster IP address in the browser to enter the shinemaster built-in page.
2>ShineMaster Built-in page access
Before accessing, check whether the communication cable between the devices is
securely connected. After the check is correct, you can enter the ShineMaster IP address
in the IE browser to access the built-in page of the ShineMaster. As long as the
ShineMaster is on the same network segment as the computer you are accessing, you can
access the ShineMaster built-in server.
A.If the user successfully visits the shinemaster built-in page, they can go directly to the
built-in page login interface, as shown in figure 8.25 below.
B. Enter user name and password, default login username: admin password: admin. click
login after filling in, enter growatt shinemaster system page.
3>ShineMaster Data collector status view
Click on the status of the shinemaster data collector to view shinemaster"system state
information", "serial number," server address, "number of connected devices," and so on.
