41
42
Fig 8.26

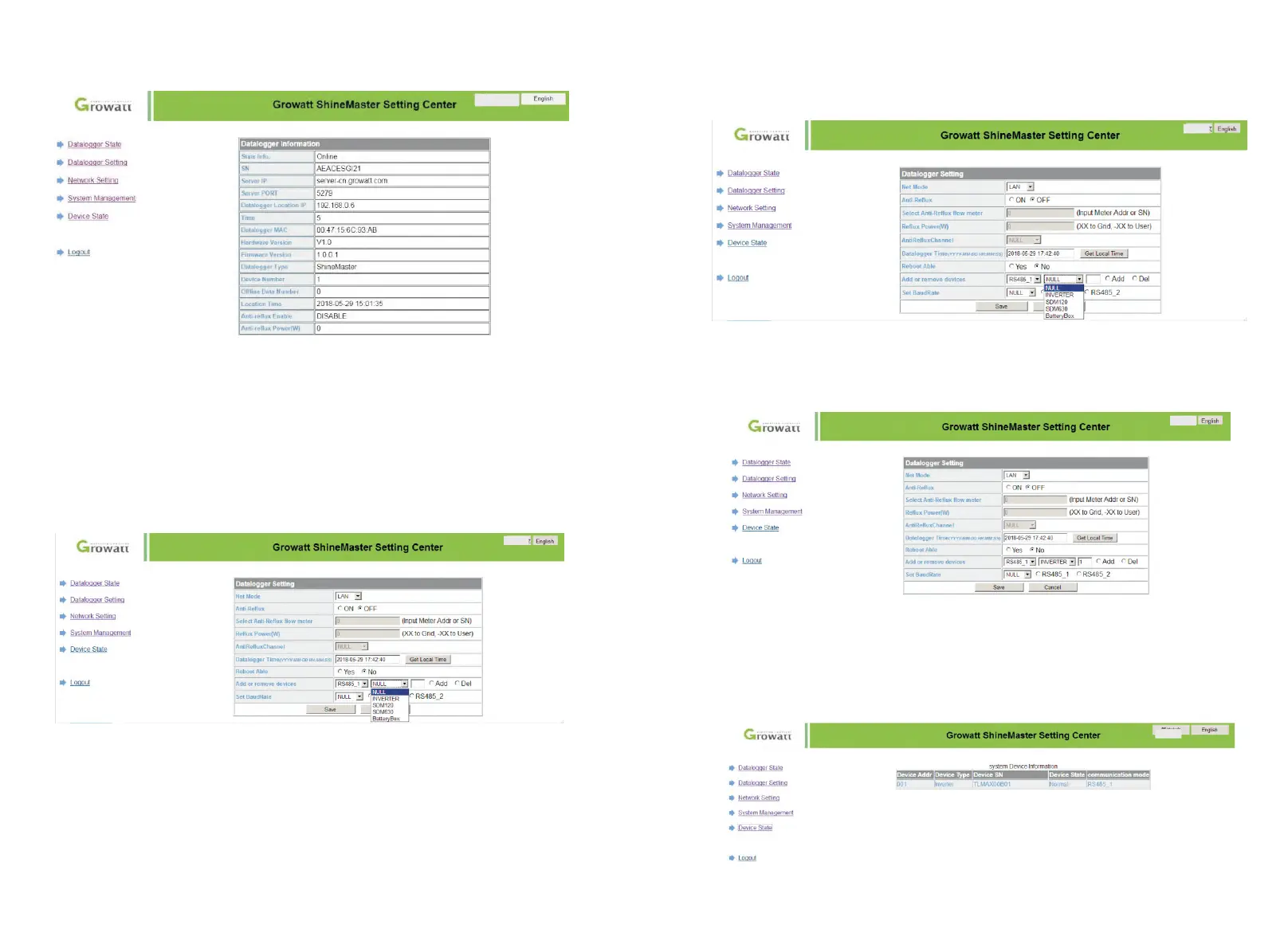

4>ShineMaster Data collector add or delete device
ShineMaster Before monitoring photovoltaic devices, we need to enter the page of the
built-in shinemaster data collector settings to add devices.
A. Add device
1 Select the monitoring mode for monitoring photovoltaic devices in the first drop-
down list of add or remove devices.
Fig 8.27
2Select the type of photovoltaic device monitored in the second drop-down list.
3Fill in the third drop-down list with the photovoltaic device correspondence address.
4Select Add and then click "Save.
5 Go to the device status page after saving success to confirm that the device was
added successfully.
Fig 8.29
Fig 8.30
Fig 8.28
