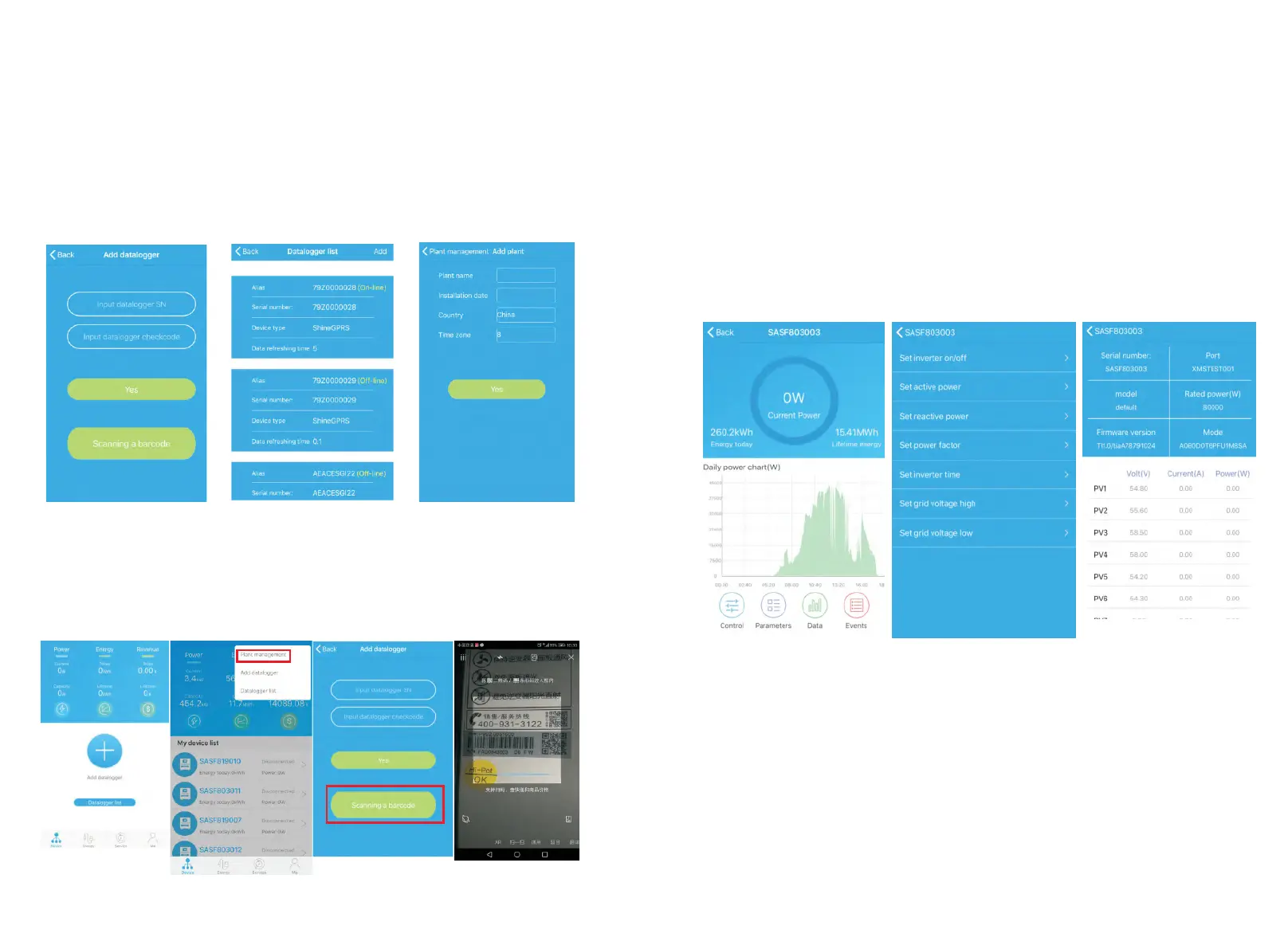

Fig 8.4 add datalogger
Fig 8.5 datalogger list
Fig 8.6 add plant
Datalogger:
1>User can add more datalogger under the particular plant.
Way: Click “+” in the upper right corner of the device page and select “Add Collector
(WiFi/GPRS, etc.)”, as shown in Figure 8.7.
Note: You can choose to manually enter the collector serial number for addition, or you
can add it by scanning the barcode on the nameplate.
Device page:
1>Main page top middle is the name of current plant, user can click the "∨" button to
switch to other plants under this account.
2>User can add datalogger,check datalogger and add plant by click“+”button at the
top right corner.
3>Top half shows current plant power, revenue today and total production.
4>My device list shows current plant device, user can see more details by click the device,
left cross the device to stick the device and edit, edit operation includes change device
alias, icon,and delete device.
Fig 8.7
2>User can add datalogger at the datalogger list page to add a datalogger, edit, delete,
configure etc.
3>User can add more plants with the add Plant function.
Device page and function:
1>Device page: User can click the device to see more details, the device page show
current power and Energy today and daily power chart, user can find more with
control,parameter, data and Events page.
2>Control: user set inverter on/off, set active power, set reactive power, set PF, set
inverter time, set grid voltage high, set grid voltage low. The operation password is
: inverter+date, for example inverter20170722.
3>Parameter: user can see device SN, rated power, firmware version, PV1 voltage,
current, and power etc.
Fig 8.8
Fig 8.9
Fig 8.10
4>Data page: user can see the PV power, voltage, current, R phase power, S phase
power, S phase power, T phase power, output power by day, month, year, by finger up
cross the screen.
5>Events: User can see the fault message if there it is.
