Growatt SPH4000 Installation Manual

Danger to life due to high voltage in SPH
There is residual voltage in SPH, SPH requires 5 minutes to
discharge.
Please wait 5 minutes before you open the upper lid or the DC
lid.
Protective conductor terminal
Direct Current(DC)
Alternating Current(AC)
The machine complies with the requirements of the applicable
CE guidelines
Refer to the operating instructions.
3 Product Description
3.1 SPH TL BL-UP series inverter
Marks of
SPH

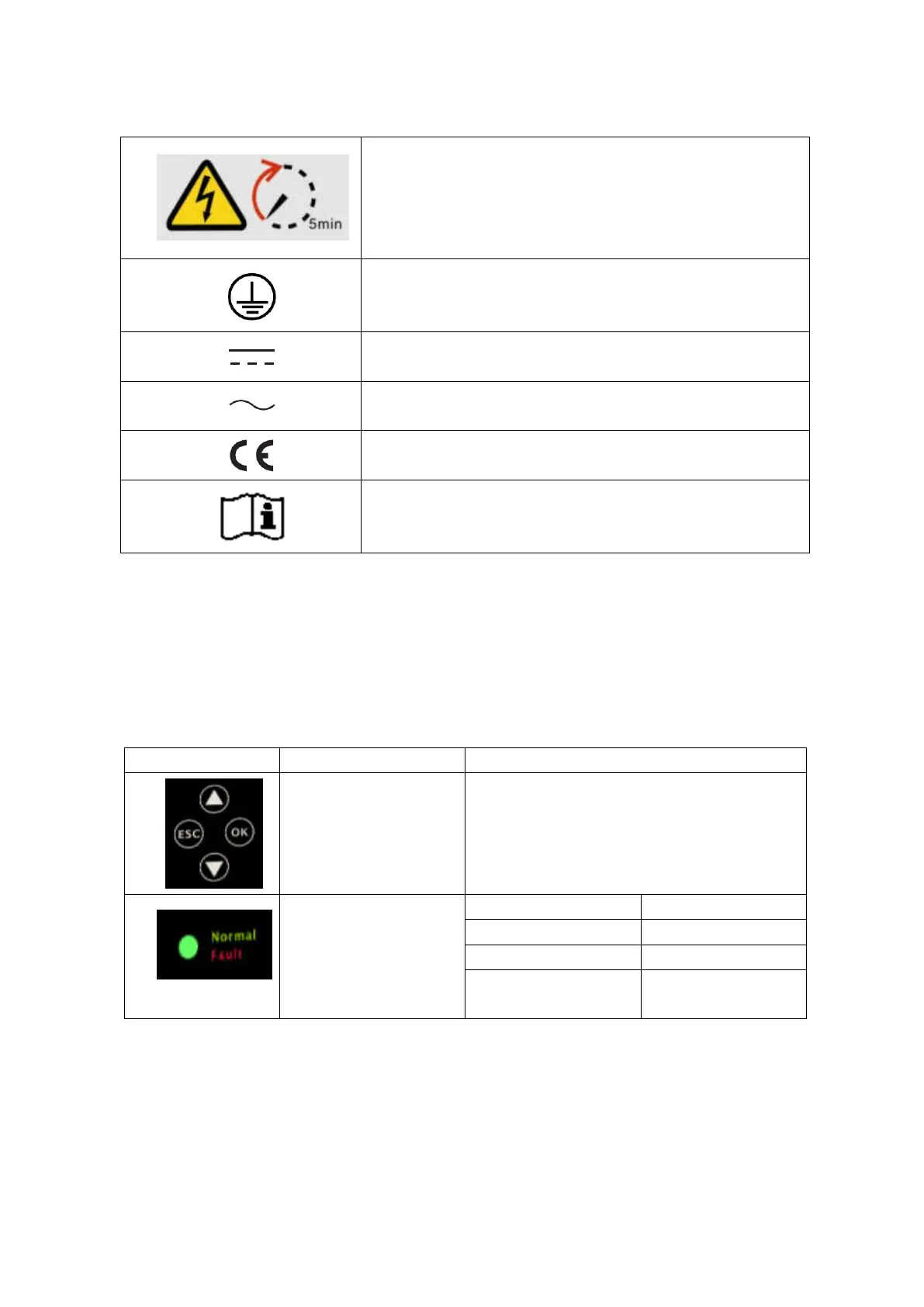

3.2 Label Explanation
Label contains the following information: for example SPH 6000TL BL-UP shows as below:
Mark Description Explanation
Push-button Operation of display screen and set system
Status symbol of SPH
Green light on SPH run normally
Red light on Fault state
Green light blinking 1.Alarm state
Red light blinking
2.Software
updating

Growatt SPH4000 Specifications

General

Model	SPH4000
Category	Inverter
Rated Power	4000 W
Max. DC Voltage	550 V
MPPT Voltage Range	120 V - 500 V
Number of MPPTs	2
AC Output Voltage	230 V
Frequency	50/60Hz
Efficiency	97.5%
Start Voltage	150 V
Nominal DC Voltage	360V
Max. Input Current per MPPT	11 A
AC Nominal Power	4000 W
Max. AC Apparent Power	4000 VA
AC Voltage Range	180 V - 280 V
Power Factor	0.8 leading to 0.8 lagging
THDi	<3%
AC Connection Type	Single phase
Max. Charge/Discharge Power	4000 W
Nominal Battery Voltage	48 V
Communication with BMS	CAN/RS485
Operating Temperature Range	-25°C to +60°C
Protection Degree	IP65
Topology	Transformerless
Weight	25 kg
Max. PV Input Voltage	550 V
Cooling Method	Natural Convection
