Growatt SPH4000 Installation Manual

Chart 5.3
J. Do not install the machine near television antenna or any other antennas and antenna cables
K. Don’t install the machine in the living area
L. Be sure that the machine is out of the children’s reach
M. Taking the battery fixing space into account, about the dimensions please reference user manual
N. The inflammable and explosive dangerous goods must not be placed around battery in case of cause
serious danger.
5.2 Installation requires tools and RJ 45 terminal sequence of the LAN line。

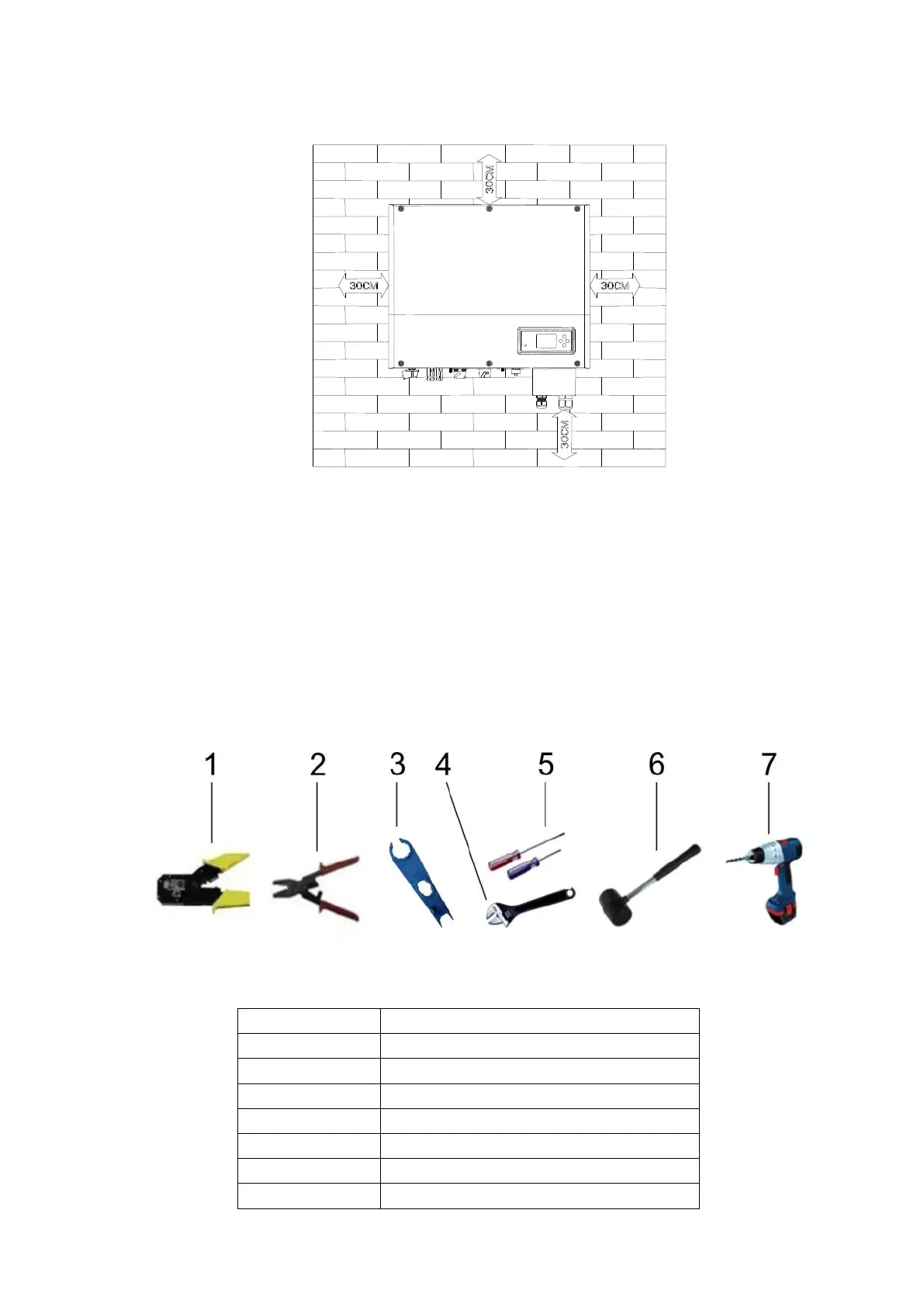

When installing, we need to use tools as follow, prepare the follow tools before installing：
Chart 5.4
No. Description
1 Press the RJ45 terminal
2 Press battery terminal connector
3 Disconnect PV terminal
4 Unscrew nut
5 Unscrew screw
6 Knock explosion bolt
7 Drill holes on the wall

Growatt SPH4000 Specifications

General

Model	SPH4000
Category	Inverter
Rated Power	4000 W
Max. DC Voltage	550 V
MPPT Voltage Range	120 V - 500 V
Number of MPPTs	2
AC Output Voltage	230 V
Frequency	50/60Hz
Efficiency	97.5%
Start Voltage	150 V
Nominal DC Voltage	360V
Max. Input Current per MPPT	11 A
AC Nominal Power	4000 W
Max. AC Apparent Power	4000 VA
AC Voltage Range	180 V - 280 V
Power Factor	0.8 leading to 0.8 lagging
THDi	<3%
AC Connection Type	Single phase
Max. Charge/Discharge Power	4000 W
Nominal Battery Voltage	48 V
Communication with BMS	CAN/RS485
Operating Temperature Range	-25°C to +60°C
Protection Degree	IP65
Topology	Transformerless
Weight	25 kg
Max. PV Input Voltage	550 V
Cooling Method	Natural Convection
