and set again.
The DIP switch is composed of six-digit binary number PINS. The different combination of the six PINS can
represent different inverter’s model, which is corresponding to the local grid standard. Each small white PIN
has two statuses, when set upward to “ON”, its value turns to “1”, when set downward, its value turns to “0”.
Concerning the matching of the PIN status and the country safety standard, please refer to the table below:

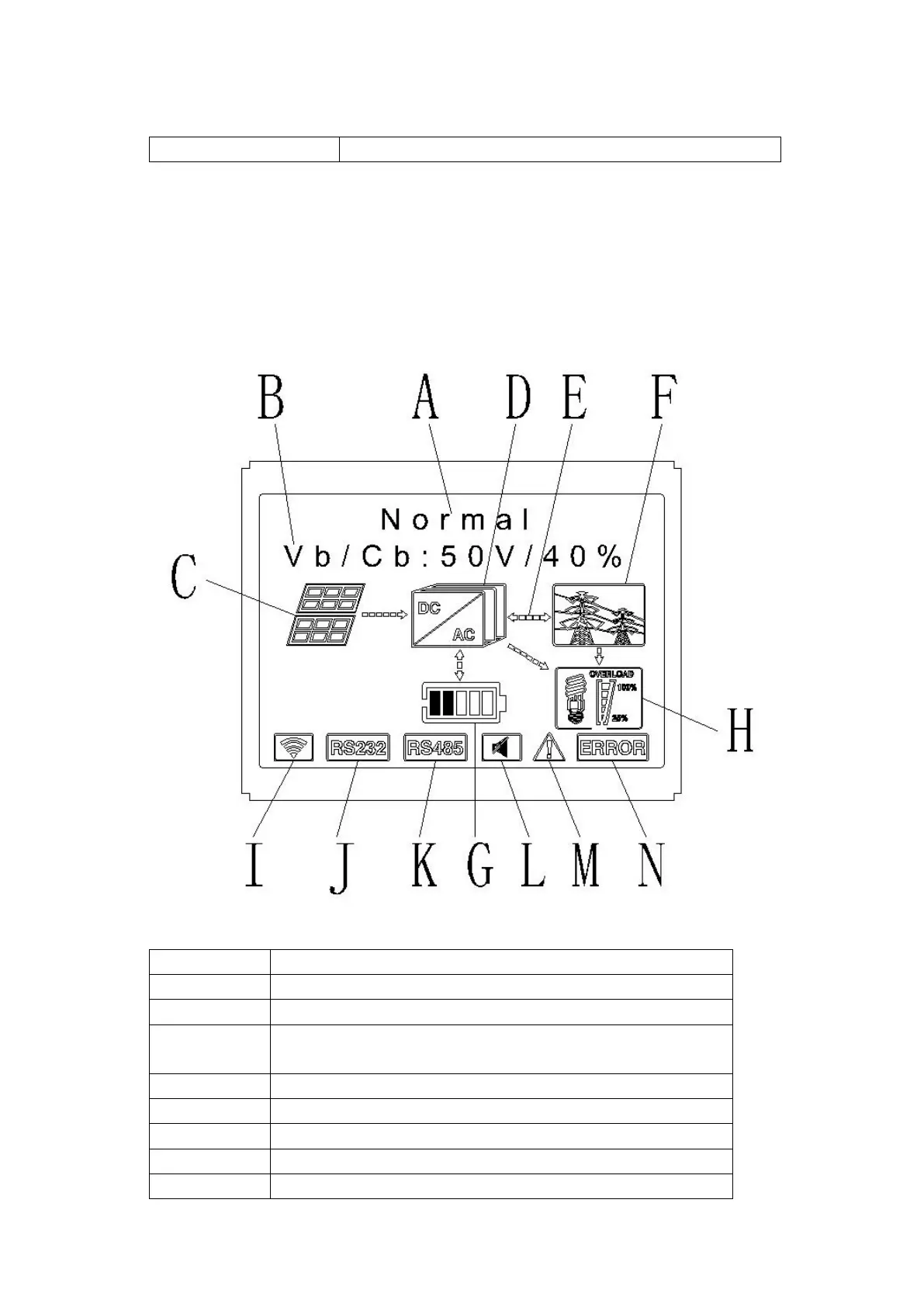

6.4 Display and button
6.4.1 LCD display area
Chart 6.2
Location Description
A State
B Information
C
PV input (If you connect two tracks, it will show two. Otherwise
show one)
D SPH inverter
E Power flow line
F Grid
G Battery (Show the SOC in five grid, Every grid represents 20%)
H Local load

Other manuals for Growatt SPH4000

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Growatt SPH4000 and is the answer not in the manual?

Growatt SPH4000 Specifications

General IconGeneral
ModelSPH4000
CategoryInverter
Rated Power4000 W
Max. DC Voltage550 V
MPPT Voltage Range120 V - 500 V
Number of MPPTs2
AC Output Voltage230 V
Frequency50/60Hz
Efficiency97.5%
Start Voltage150 V
Nominal DC Voltage360V
Max. Input Current per MPPT11 A
AC Nominal Power4000 W
Max. AC Apparent Power4000 VA
AC Voltage Range180 V - 280 V
Power Factor0.8 leading to 0.8 lagging
THDi<3%
AC Connection TypeSingle phase
Max. Charge/Discharge Power4000 W
Nominal Battery Voltage48 V
Communication with BMSCAN/RS485
Operating Temperature Range-25°C to +60°C
Protection DegreeIP65
TopologyTransformerless
Weight25 kg
Max. PV Input Voltage550 V
Cooling MethodNatural Convection
