Growatt SPH4000 Installation Manual

Notice:
1. If you want to use on gird only, please refer to chart 5.17 connect with AC grid and float EPS OUTPUT.
2. If you have no battery now, you can also float BAT terminal, and this hybrid inverter will only work like a
PV inverter.
3. If you want to use both on gird power and backup power, please refer to chart 5.15 and 5.16 connect
with AC grid and EPS OUTPUT like the chart show.
4. On grid terminal and off grid terminal can’t directly connect together.
5. Off Grid terminal can’t connect to grid.
6. If you want to use on gird and off grid, you can use ATS (automatic transfer switch) like chart 5.15 and
5.16 before or ask Growatt for help to connect them.
7. The first start of system needs Grid power.
5.4.3 Connection of battery terminal
Install battery cable steps are as follows:
1. Unscrew the swivel nut from the cable gland.
2. Thread the swivel nut over the battery cable.

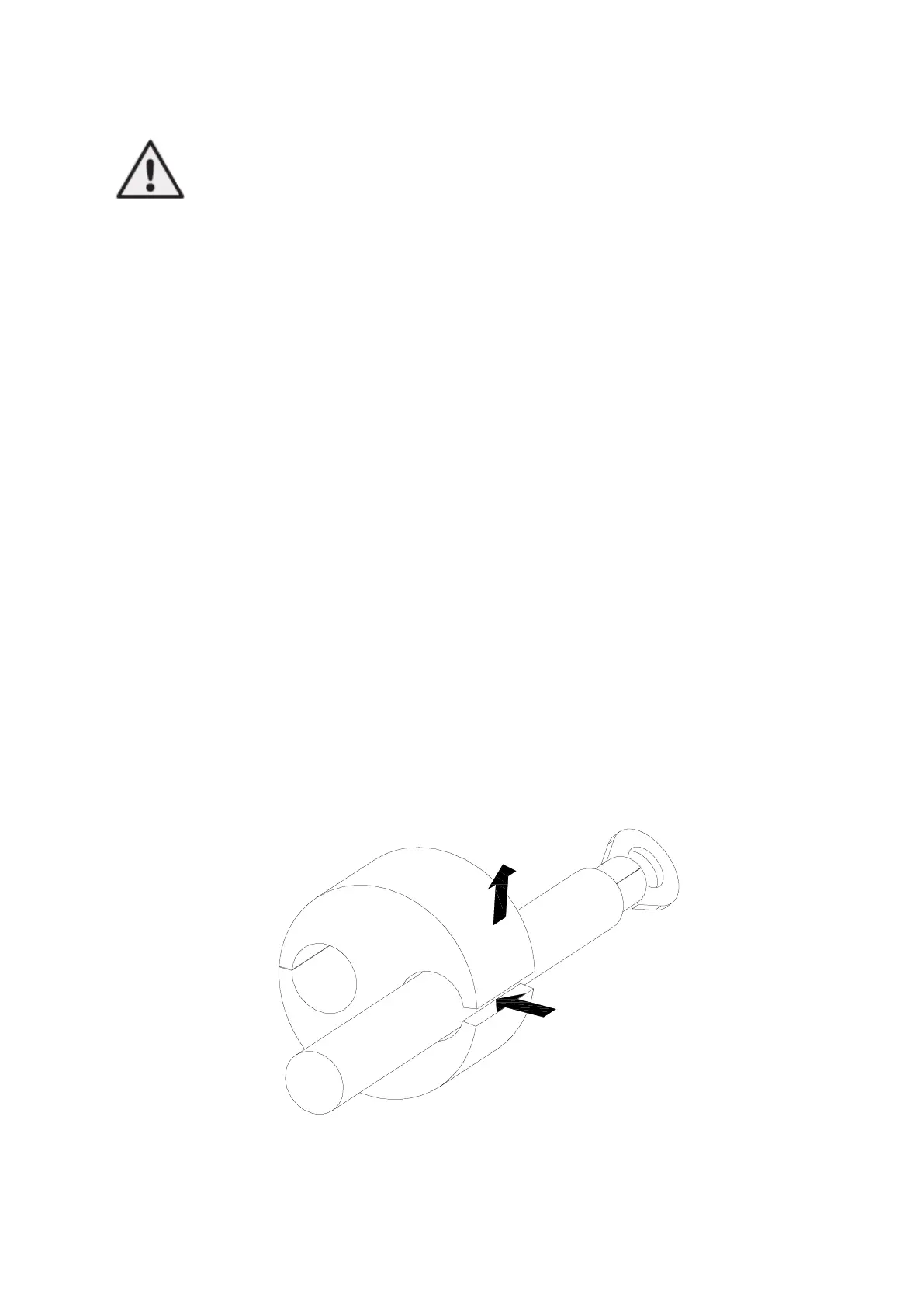

3. Press the cable support sleeve out of the cable gland.
4. Remove the filler plug from the cable support sleeve.
5. Route the network cable through an opening in the cable support sleeve.
6. Thread the network cable through the cable gland.
7. Thread cables into connection terminal, then press the terminal by relevant tools and make sure battery
cables are firmly (Growatt lithium battery contains a battery cable in the original packing).
8. Connect positive pole (+) of battery cable to battery positive terminal (+) of the inverter, connect
negative pole (-) of battery cable to battery negative terminal (-).
9. Continue to install other cables.
Chart 5.18

Growatt SPH4000 Specifications

General

Model	SPH4000
Category	Inverter
Rated Power	4000 W
Max. DC Voltage	550 V
MPPT Voltage Range	120 V - 500 V
Number of MPPTs	2
AC Output Voltage	230 V
Frequency	50/60Hz
Efficiency	97.5%
Start Voltage	150 V
Nominal DC Voltage	360V
Max. Input Current per MPPT	11 A
AC Nominal Power	4000 W
Max. AC Apparent Power	4000 VA
AC Voltage Range	180 V - 280 V
Power Factor	0.8 leading to 0.8 lagging
THDi	<3%
AC Connection Type	Single phase
Max. Charge/Discharge Power	4000 W
Nominal Battery Voltage	48 V
Communication with BMS	CAN/RS485
Operating Temperature Range	-25°C to +60°C
Protection Degree	IP65
Topology	Transformerless
Weight	25 kg
Max. PV Input Voltage	550 V
Cooling Method	Natural Convection
