Growatt SPH4000 Installation Manual

electricity meter, please refer to section 6.3.3 for details.
2. If the cable such as “CT” cable is not used, please do not remove the filler plug from the cable support
sleeve.
Remark:
CT wire (5m in length) specification: RJ45, standard LAN line (one end with 8P modular plug, the other
connected with transformer). But if the length is not enough, customer can add cable, so the length can be
increased to 15m max, the operation is as follow chart:

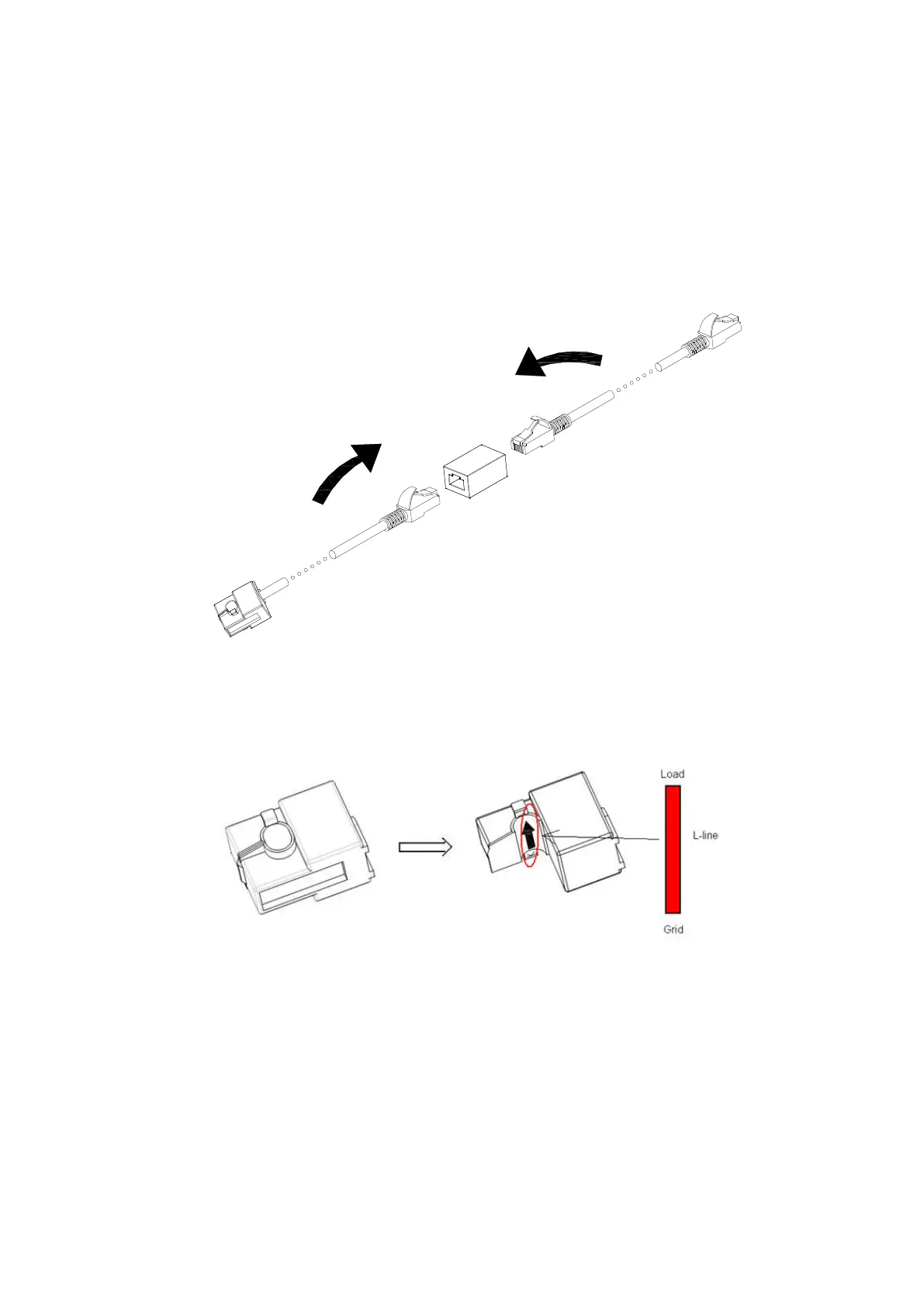

Chart 5.24
During the actual operation, please pay attention to the installation of current transformer as the diagram
shows below:
Chart 5.25
As illustrated above, open the current transformer and you can see an arrow labeled on it indicating the
direction of current. Put the live wire among the under-detection wires onto the current transformer. After
latching the current transformer, the installation has been finished
Notice:
The direction (from K to L) of the arrow on the current transformer is corresponding to the direction of the
current in live wire from Grid to Load. Sensor needs to be placed in the power distribution cabinet.

Growatt SPH4000 Specifications

General

Model	SPH4000
Category	Inverter
Rated Power	4000 W
Max. DC Voltage	550 V
MPPT Voltage Range	120 V - 500 V
Number of MPPTs	2
AC Output Voltage	230 V
Frequency	50/60Hz
Efficiency	97.5%
Start Voltage	150 V
Nominal DC Voltage	360V
Max. Input Current per MPPT	11 A
AC Nominal Power	4000 W
Max. AC Apparent Power	4000 VA
AC Voltage Range	180 V - 280 V
Power Factor	0.8 leading to 0.8 lagging
THDi	<3%
AC Connection Type	Single phase
Max. Charge/Discharge Power	4000 W
Nominal Battery Voltage	48 V
Communication with BMS	CAN/RS485
Operating Temperature Range	-25°C to +60°C
Protection Degree	IP65
Topology	Transformerless
Weight	25 kg
Max. PV Input Voltage	550 V
Cooling Method	Natural Convection
