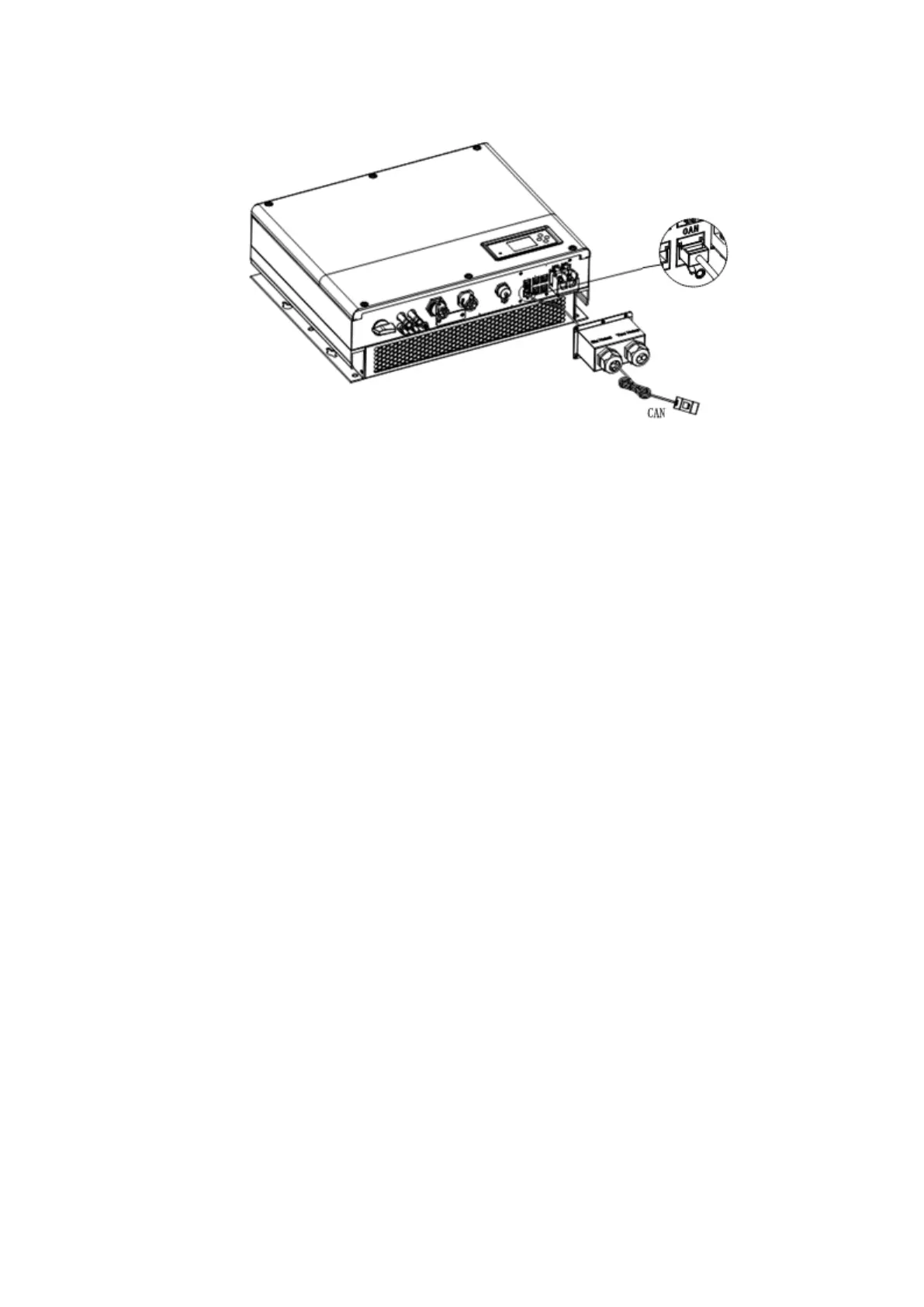

Chart 5.29
Note:
1. If you are using a lead-acid battery, you do not need to install this communication cable.
2. The CAN battery communication and 485-2 battery communication can’t be installed at same time,
please select the correct communication method according to the battery manual.
3. If the cable such as “485-2” cable or “CAN” cable is not used, please do not remove the filler plug from
the cable support sleeve.
5.4.7 Connection of communication terminal for lithium battery (RS485)
When using lithium batteries which need to connect BMS system of the battery, connect lithium battery
terminal (RJ45) steps as follows:
1. Unscrew the swivel nut from the cable gland.
2. Thread the swivel nut over the “RS485” cable.
3. Press the cable support sleeve out of the cable gland.
4. Remove the filler plug from the cable support sleeve.
5. Route the “RS485” cable through an opening in the cable support sleeve.
6. Thread the “RS485” cable through the cable gland.
7. Insert the RJ45 plug of the network cable into the “RS485-2pin connector on the inverter until it snaps
into place.
8. If no other cables need to be installed, lock the waterproof cover to the inverter with screws.
9. Screw the swivel nut onto the waterproof cover.

Other manuals for Growatt SPH4000

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Growatt SPH4000 and is the answer not in the manual?

Growatt SPH4000 Specifications

General IconGeneral
ModelSPH4000
CategoryInverter
Rated Power4000 W
Max. DC Voltage550 V
MPPT Voltage Range120 V - 500 V
Number of MPPTs2
AC Output Voltage230 V
Frequency50/60Hz
Efficiency97.5%
Start Voltage150 V
Nominal DC Voltage360V
Max. Input Current per MPPT11 A
AC Nominal Power4000 W
Max. AC Apparent Power4000 VA
AC Voltage Range180 V - 280 V
Power Factor0.8 leading to 0.8 lagging
THDi<3%
AC Connection TypeSingle phase
Max. Charge/Discharge Power4000 W
Nominal Battery Voltage48 V
Communication with BMSCAN/RS485
Operating Temperature Range-25°C to +60°C
Protection DegreeIP65
TopologyTransformerless
Weight25 kg
Max. PV Input Voltage550 V
Cooling MethodNatural Convection
