Growatt SPH5000 Installation Manual

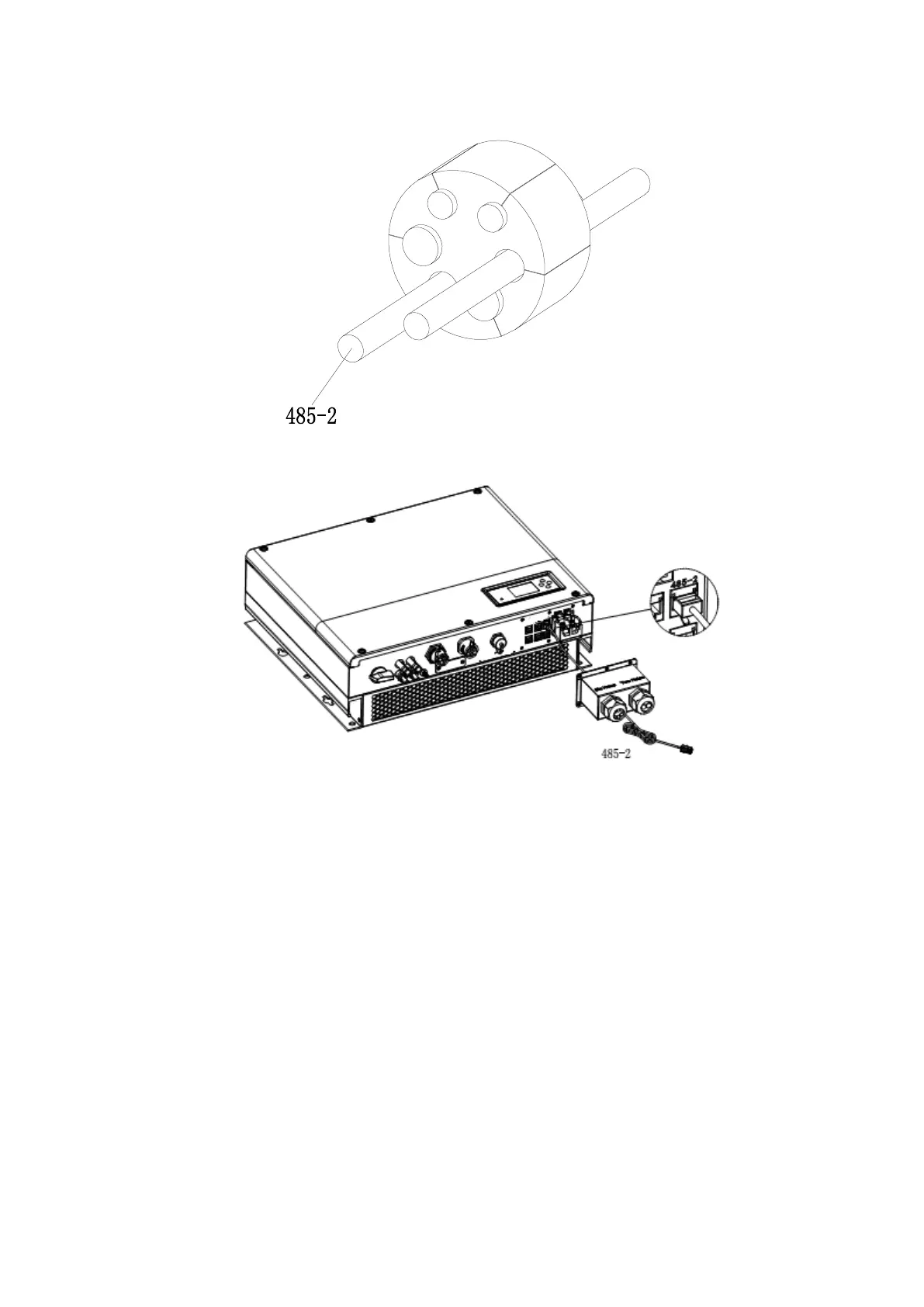

Chart 5.30
Chart 5.31
Note:
1. If you are using a lead-acid battery, you do not need to install this communication cable.
2. The CAN battery communication and 485-2 battery communication can’t be installed at same time,
please select the correct communication method according to the battery manual.
3. If the cable such as “485-2” cable or “CAN” cable is not used, please do not remove the filler plug from
the cable support sleeve.
5.4.8 Connection of DRMS terminal (Australia only)
When SPH is applied to Australia, the DRMS terminals need to be connected, the connection way appears
as follows:
1. Unscrew the swivel nut from the cable gland.
2. Thread the swivel nut over the “DRMS” cable.
3. Press the cable support sleeve out of the cable gland.
4. Remove the filler plug from the cable support sleeve.
5. Route the “DRMS” cable through an opening in the cable support sleeve.
6. Thread the “DRMS” cable through the cable gland.

Growatt SPH5000 Specifications

General

Model	SPH5000
Type	Hybrid Inverter
Rated Power	5000 W
Max. DC Voltage	550 V
Max. Output Current	22 A
Weight	25 kg
Max. DC Power	6000 W
Start Voltage	150 V
Nominal DC Voltage	360 V
Number of MPP Trackers	2
AC Nominal Power	5000 W
Max. AC Apparent Power	5000 VA
AC Nominal Voltage	230 V
AC Voltage Range	180-280V
Nominal Grid Frequency	50/60Hz
Total Harmonic Distortion (THDi)	<3%
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
DC Injection Current	<0.5% In
Switching Time	<10 ms
Max. Charge/Discharge Power	5000 W
Max. Charge/Discharge Current	100 A
Protection degree	IP65
Max. PV Input Voltage	550 V
Cooling Method	Natural Convection
Communication with BMS	CAN
Operating Temperature Range	-25°C to 60°C
MPPT Voltage Range	120 V - 550 V
