Growatt SPH5000 Installation Manual

WorkMode WorkMode
Language
WorkMode
English
Italian
German
WorkMode
System time
WorkMode
xxD/xxM /xxxxY
WorkMode
Lead-acid CV
WorkMode
58.0 V
WorkMode
Lead-acid CC
WorkMode
60 A
Press “enter” key more
than 1 seconds to make sure
Press “down” key
to the next item
Press “enter” key more
than 1 seconds to make sure
Range from 55 to 60V,
and the accuracy is 0.1V
Range from 0 to 60A, and
the accuracy is 0.1A
WorkMode
Lead-acid LV
WorkMode
48V
Range from 42 to 50V,
and the accuracy is 0.1V
Basic Parameter
Only display when
battery type is lead-acid
Only display when
battery type is lead-acid
Only display when
battery type is lead-acid
Chart 6.7
In the basic Parameter, you can set language (English, Italian, German), system time, lead-acid cell charging
voltage (default is 58V), discharge low voltage (default is 48V) and lead-acid constant current (default is 60A).

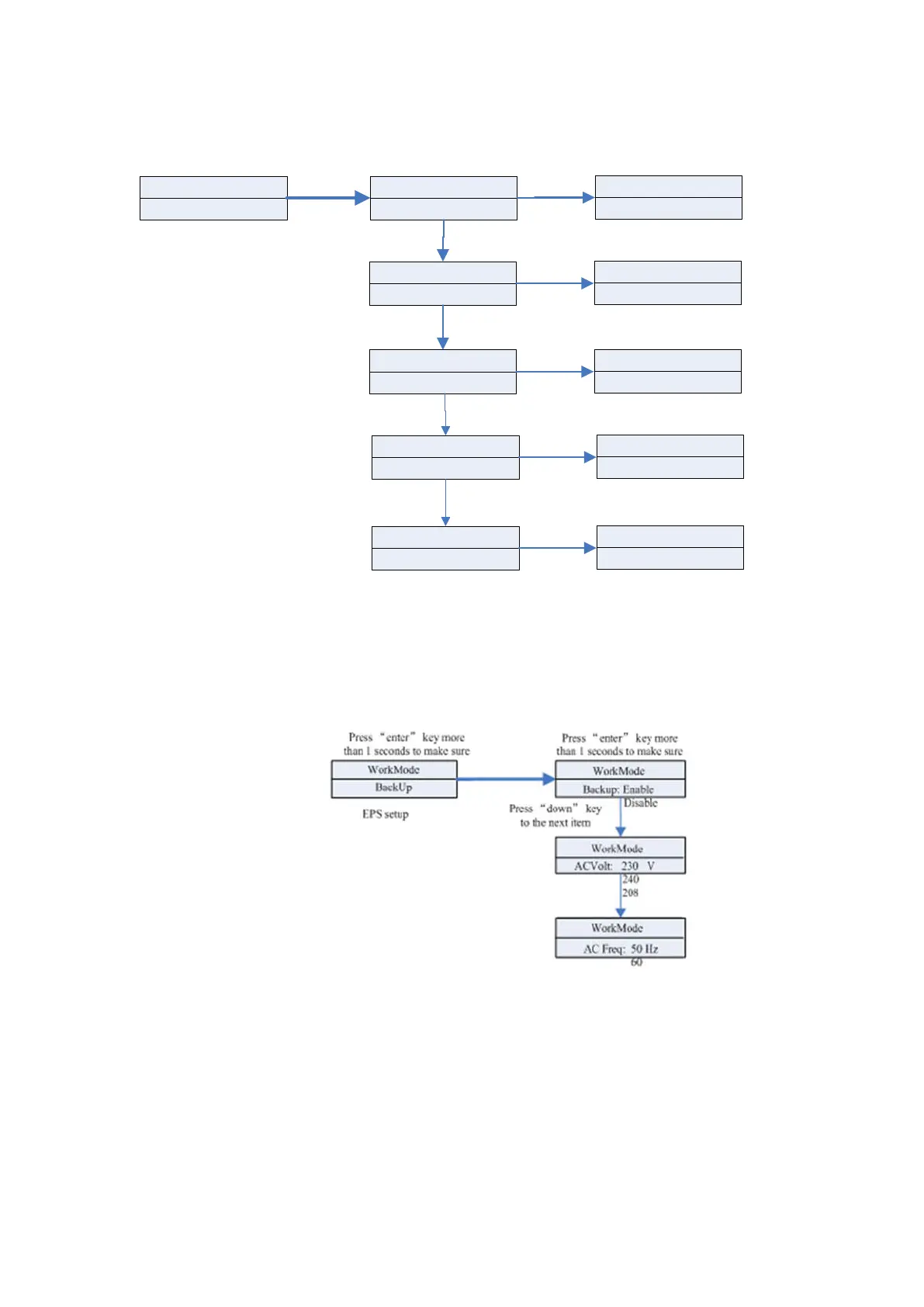

2. Under the Back Up, you can see the setup options below after pressing Enter for 1S:
Chart 6.8
In the back up you can set EPS, including enable or disable (default is enable), AC voltage(default is 230V) and
frequency (default site 50HZ).
3. Under the Priority, you can see the setup options below after pressing Enter:

Growatt SPH5000 Specifications

General

Model	SPH5000
Type	Hybrid Inverter
Rated Power	5000 W
Max. DC Voltage	550 V
Max. Output Current	22 A
Weight	25 kg
Max. DC Power	6000 W
Start Voltage	150 V
Nominal DC Voltage	360 V
Number of MPP Trackers	2
AC Nominal Power	5000 W
Max. AC Apparent Power	5000 VA
AC Nominal Voltage	230 V
AC Voltage Range	180-280V
Nominal Grid Frequency	50/60Hz
Total Harmonic Distortion (THDi)	<3%
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
DC Injection Current	<0.5% In
Switching Time	<10 ms
Max. Charge/Discharge Power	5000 W
Max. Charge/Discharge Current	100 A
Protection degree	IP65
Max. PV Input Voltage	550 V
Cooling Method	Natural Convection
Communication with BMS	CAN
Operating Temperature Range	-25°C to 60°C
MPPT Voltage Range	120 V - 550 V
