Growatt SPH5000 Installation Manual

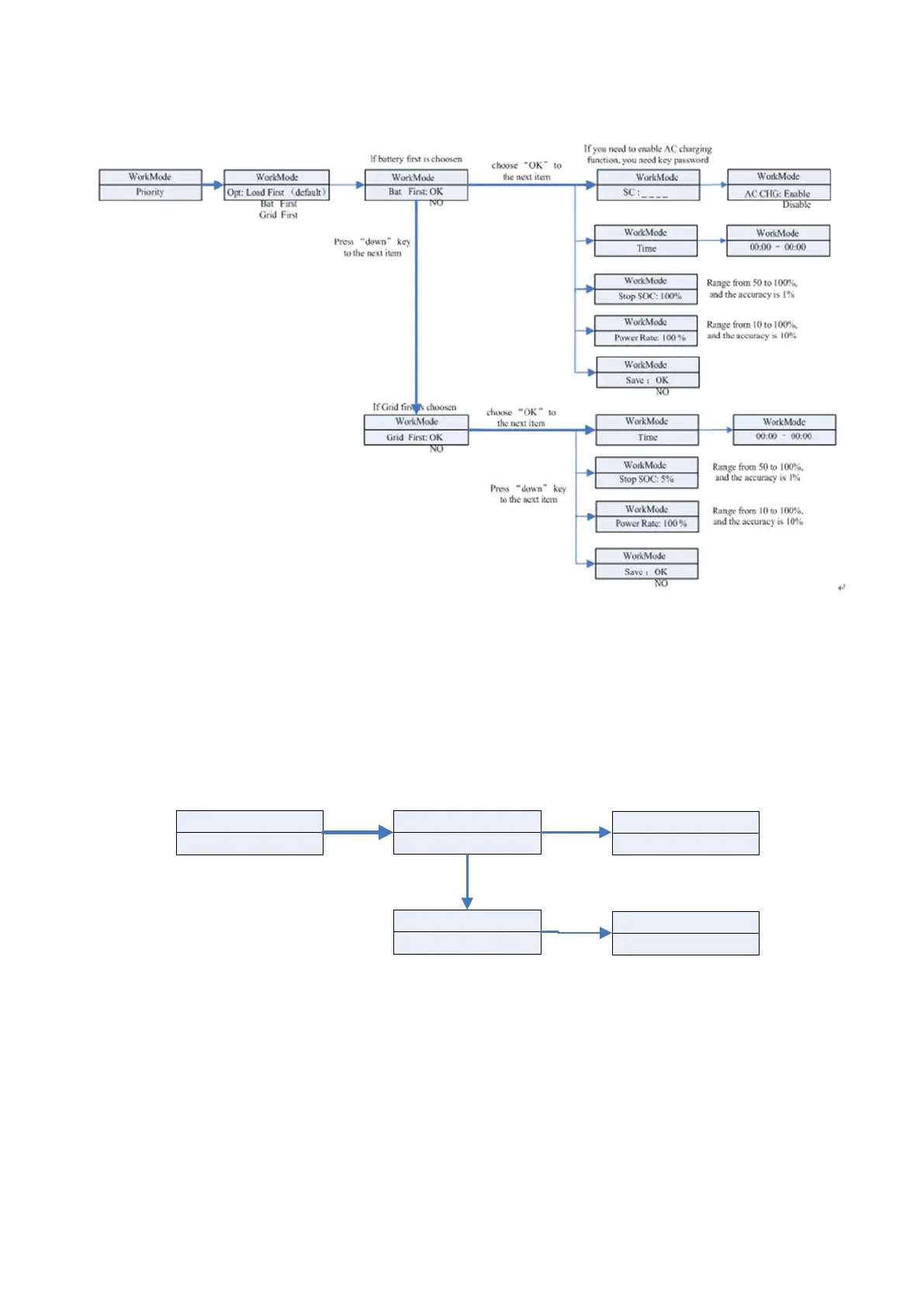

Chart 6.9
Note:
1. “Power Rate” is used to set up power of battery. So different battery may have the different power,
customer need to check the max power of battery.
2. Time setting is 24-hour.If the end time is less than beginning time, it defaults to spanning days.
4. Under the MODE Change, you can see the setup options below after pressing Enter:
MODE Change
WorkMode
Sensor
WorkMode
Cable CT
WorkMode
Meter
SP-CT
Battery Type
WorkMode
Lithium
WorkMode
Lead-acid
Press “enter” key to
make sure
Press “down” key
to the next item
Press “enter” key
to make sure
Chart 6.10
The MODE change has two options what are sensor and battery type, sensor is cable CT (default), meter and
SP-CT(wireless RF transfer). In the battery type, you can choose lithium battery or lead-acid battery.
5. Under the ExportLimit, you can see the setup options below after pressing Enter:

Growatt SPH5000 Specifications

General

Model	SPH5000
Type	Hybrid Inverter
Rated Power	5000 W
Max. DC Voltage	550 V
Max. Output Current	22 A
Weight	25 kg
Max. DC Power	6000 W
Start Voltage	150 V
Nominal DC Voltage	360 V
Number of MPP Trackers	2
AC Nominal Power	5000 W
Max. AC Apparent Power	5000 VA
AC Nominal Voltage	230 V
AC Voltage Range	180-280V
Nominal Grid Frequency	50/60Hz
Total Harmonic Distortion (THDi)	<3%
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
DC Injection Current	<0.5% In
Switching Time	<10 ms
Max. Charge/Discharge Power	5000 W
Max. Charge/Discharge Current	100 A
Protection degree	IP65
Max. PV Input Voltage	550 V
Cooling Method	Natural Convection
Communication with BMS	CAN
Operating Temperature Range	-25°C to 60°C
MPPT Voltage Range	120 V - 550 V
