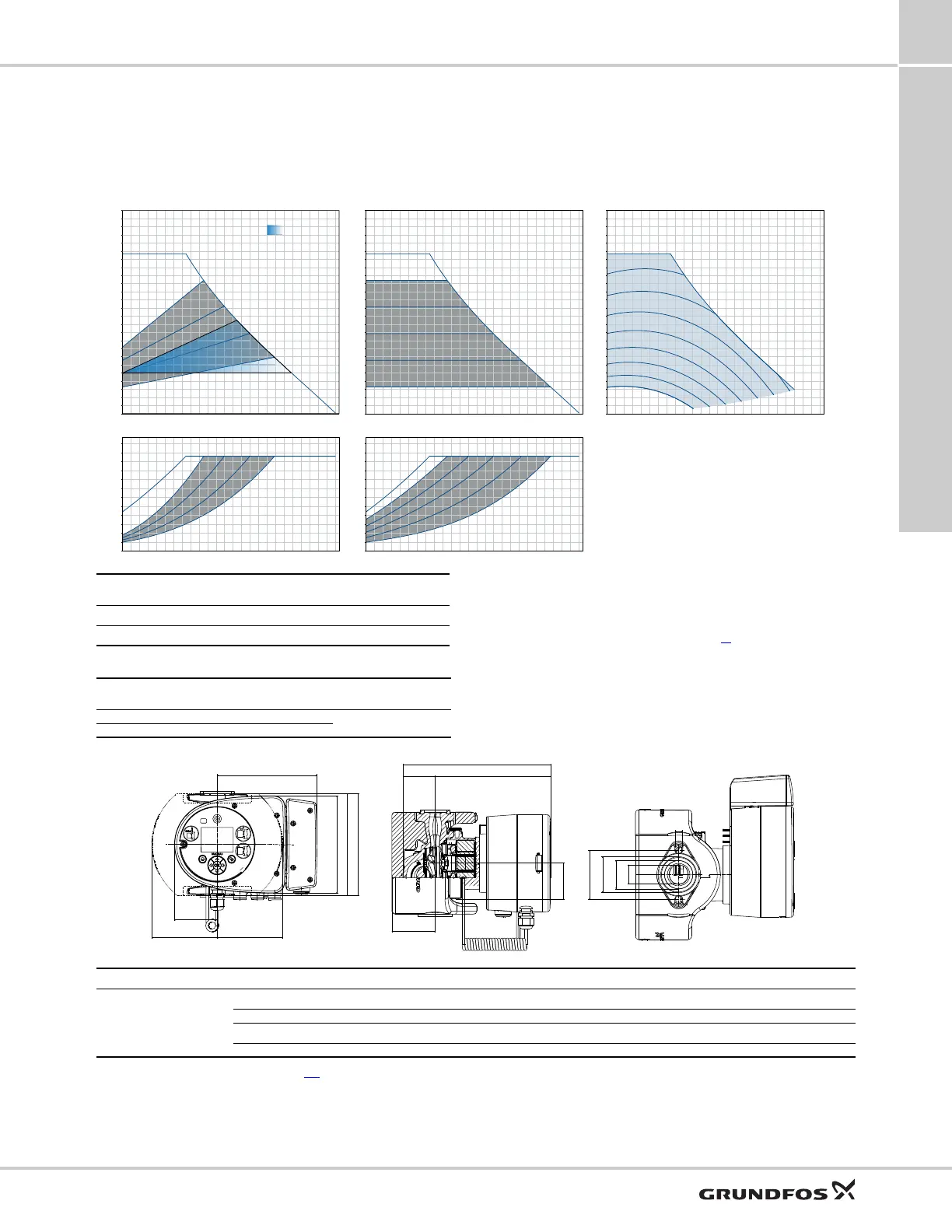

Performance curves and technical data
9
43
MAGNA3 Performance curves and technical data
MAGNA3 32-60 F (N) 1 x 115, 230 V, 60 Hz
For product numbers, see page 62.
H
[ft]
0
2
4
6
8
10
12
14
16
18
20
22
Q [US gpm]0 4 8 12 16 20 24 28 32 36 40
P1
[W]
0
10
20
30
40
50
60
70
80
90
100
110
H
[ft]
0
2
4
6
8
10
12
14
16
18
20
22
Q [US gpm]0 4 8 12 16 20 24 28 32 36 40
2 V
3 V
4 V
5 V
6 V
7 V
8 V
9 V
10 V
H
[ft]
0
2
4
6
8
10
12
14
16
18
20
22
Q [US gpm]0 4 8 12 16 20 24 28 32 36 40
P1
[W]
0
10
20
30
40
50
60
70
80
90
100
110
AUTOADAPT
Proportional pressure Constant pressure 0-10 volts*
Speed
P1 [W]
115 V
I
1
[A]
115 V
P1 [W]
230 V
I
1
[A]
230 V
Min. 8.5 0.28 9 0.09
Max. 106 1.01 106 0.91
The pump incorporates overload protection.
Model
Net weights
[lb (kg)]
Ship. vol.
[ft
3
(m
3
)]
32-60 13.2 (6.0)
0.76 (0.03)
32-100 13.9 (6.3)
* External setpoint influence shown with a
setpoint of H
max
Connections: GF15/26/40/43 flanges.
See Pipe connections, page 61.
System pressure: Max. 175 psi (1.2 MPa) (12 bar).
Liquid temperature: 14 to 230 °F (-10 to +110 °C) (TF 110).
Also available with: Stainless-steel pump housing, type N.
Specific EEI:
0.20 (115 V)
0.19 (230 V)
TM07 1509 1518
L1
B2
B4
B6 B7
L5
B2
L6
H3
H2H1
B1
H4
D4
D3
D2
D1
D5
Pump type Dimensions [inches (mm)]
MAGNA3 32-60 F (N)
L1 L5 L6 B1 B2 B4 B6 B7 D1
6.50 (165) 6.23 (158) 6.62 (168) 2.29 (58) 6.39 (162) 2.72 (69) 4.18 (106) 4.18 (106) 1.26 (32)
D2 D3 D4 D5 H1 H2 H3 H4
1.82 (46) 2.29 (58) 3.15 (80) 0.46 (11.5) 2.13 (54) 7.37 (187) 9.49 (241) 2.76 (70)
