English (US)

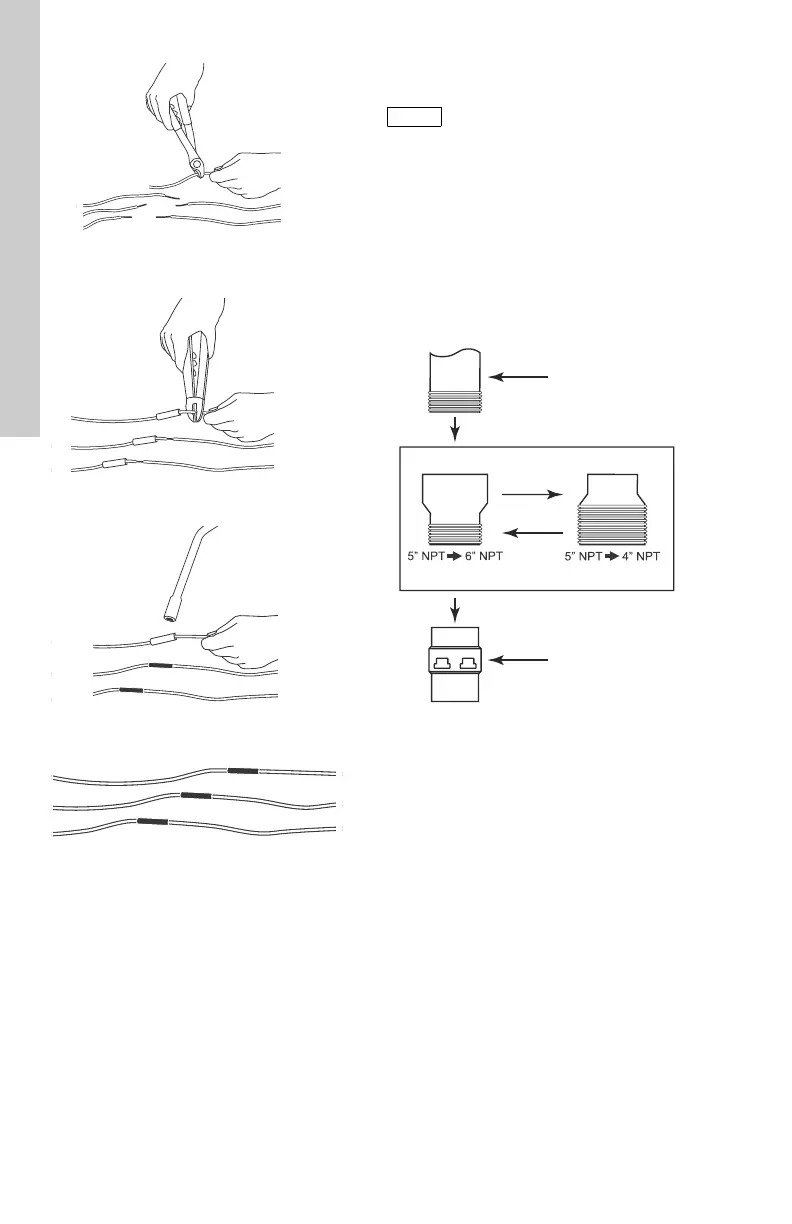

Fig. 6 Cutting and stripping the motor

leads

Fig. 7 Crimping the connectors

Fig. 8 Applying heat to the connector

Fig. 9 Completed splices

6.6 Riser pipe

6.6.1 If an adapter is required

We recommend that you first install the riser

pipe to the pipe adapter. Then install the riser

pipe with the adapter to the pump outlet port.

Use a back-up wrench when attaching the riser

pipe to the pump. Make sure that the pump is

gripped only by the flats on the top of the outlet

chamber. The body of the pump, cable guard or

motor must not be gripped under any

circumstance.

Fig. 10 Pipe adapters

TM05 0032 0611

TM05 0033 0611

TM05 0034 0611

TM05 0035 0611

Note

Make sure that the riser pipe or hose

are properly sized and selected on

the basis of estimated flow rates and

friction-loss factors.

TM05 0036 2013

475S 385S

Riser pipe

Pipe adapters

Pump outlet
