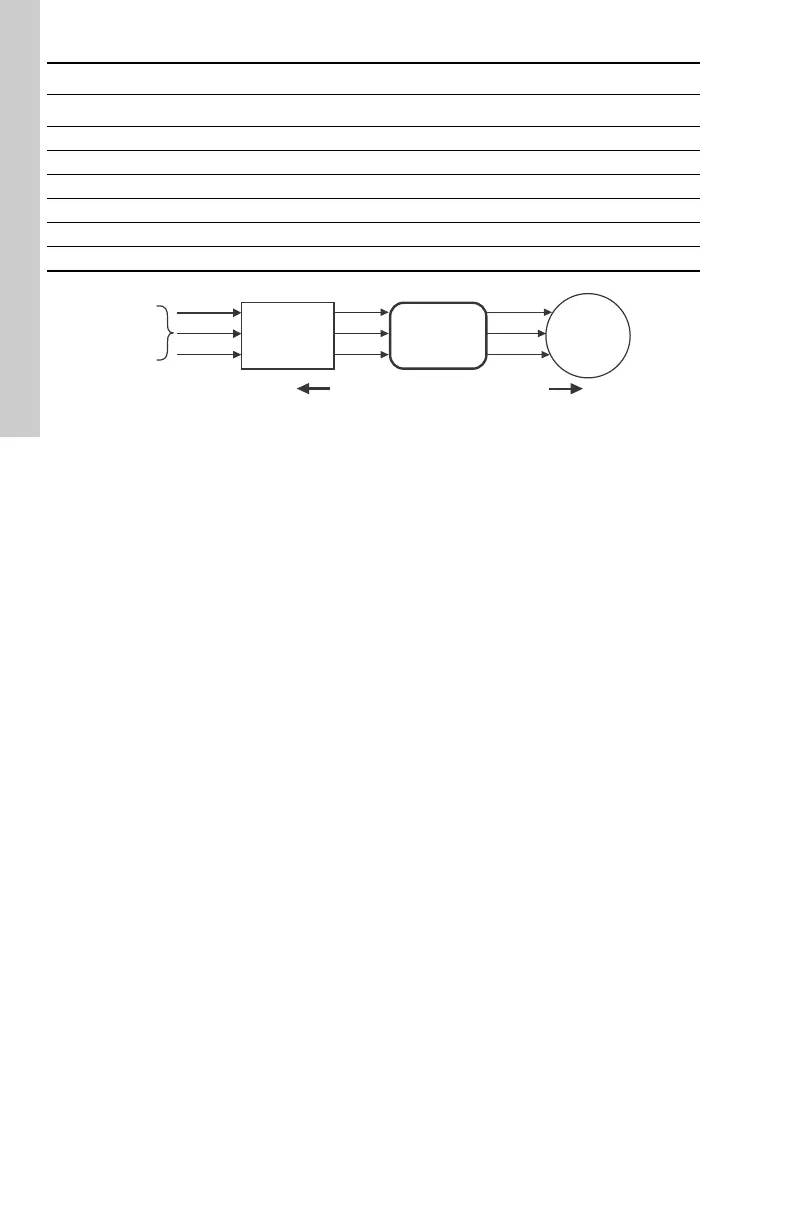

Fig. 13 Location of the sine-wave filter in the system
For further details, contact your VFD supplier or
Grundfos.
Maximum peak voltage and dU/dt for Grundfos submersible motors
Motor series Maximum U
peak
voltage Maximum dU/dt
MS 402 650 V phase-phase 2000 V/micro s.
MS 4000 850 V phase-phase 2000 V/micro s.
MS6 / MS 6000C 850 V phase-phase 2000 V/micro s.
MMS6 / MMS 6000 850 V phase-ground 500 V/micro s.
MMS 8000 850 V phase-ground 500 V/micro s.
MMS 10000 850 V phase-ground 500 V/micro s.
TM06 6056 0516
Sine-wave
filter
Motor
VFD
379 V or
greater
incoming
power
Cable length from VFD to motor
0 to 1500 ft (0 to 457 m)

Grundfos SP Specifications

General

Material	Stainless Steel
Pump Type	Submersible
Application	Irrigation
Motor Range	0.37 kW to 4 kW
Liquid Temperature	0 °C to 40 °C
Series	SP
Power Range	0.37 kW to 4 kW
Frequency	50 Hz, 60 Hz
Head	Up to 200 m
Discharge Size	1 inch to 4 inches
