Grundig DTR 1560 MICRO - Connection and Preparation; Connecting the Antenna; Connecting the Television

8

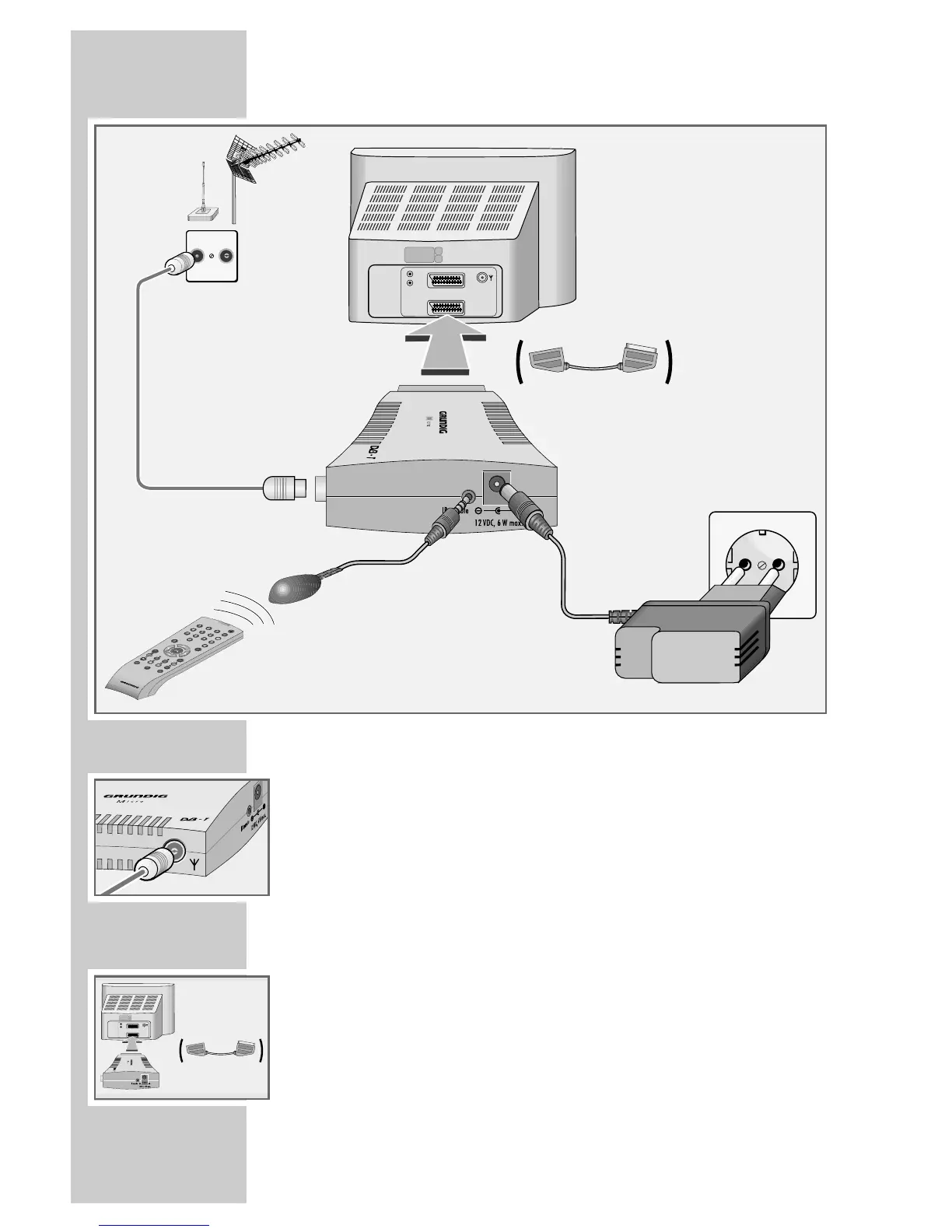

Connecting the antenna
1 Connect the cable of the indoor or outdoor antenna to the »
ÉÉ
« socket on
the digital receiver.
Note:
When connecting an indoor antenna you may have to try it out at
different positions until you get the best reception.
Connecting the television
1 Plug the digital receiver into the corresponding Euro AV socket (e.g.
EURO-AV, SCART) of the television (use the Euro AV extension if
required).
