8. Dimensions
PNEG-2343 U-Trough Free Flow Unloading System 55
Concrete Knock-Out Installation
Knock-out in the foundation must be 10" (216 mm) past the center point as shown in Figure 8H.
This is important to ensure that the pivot point of the sweep is centered in the bin once the system has
been installed.
Cross section below shows the width and depth of the knock-out. Note this detail assumes planking is
1-1/2" (38 mm) high.
Knock-out must be level. (See note on Page 54).

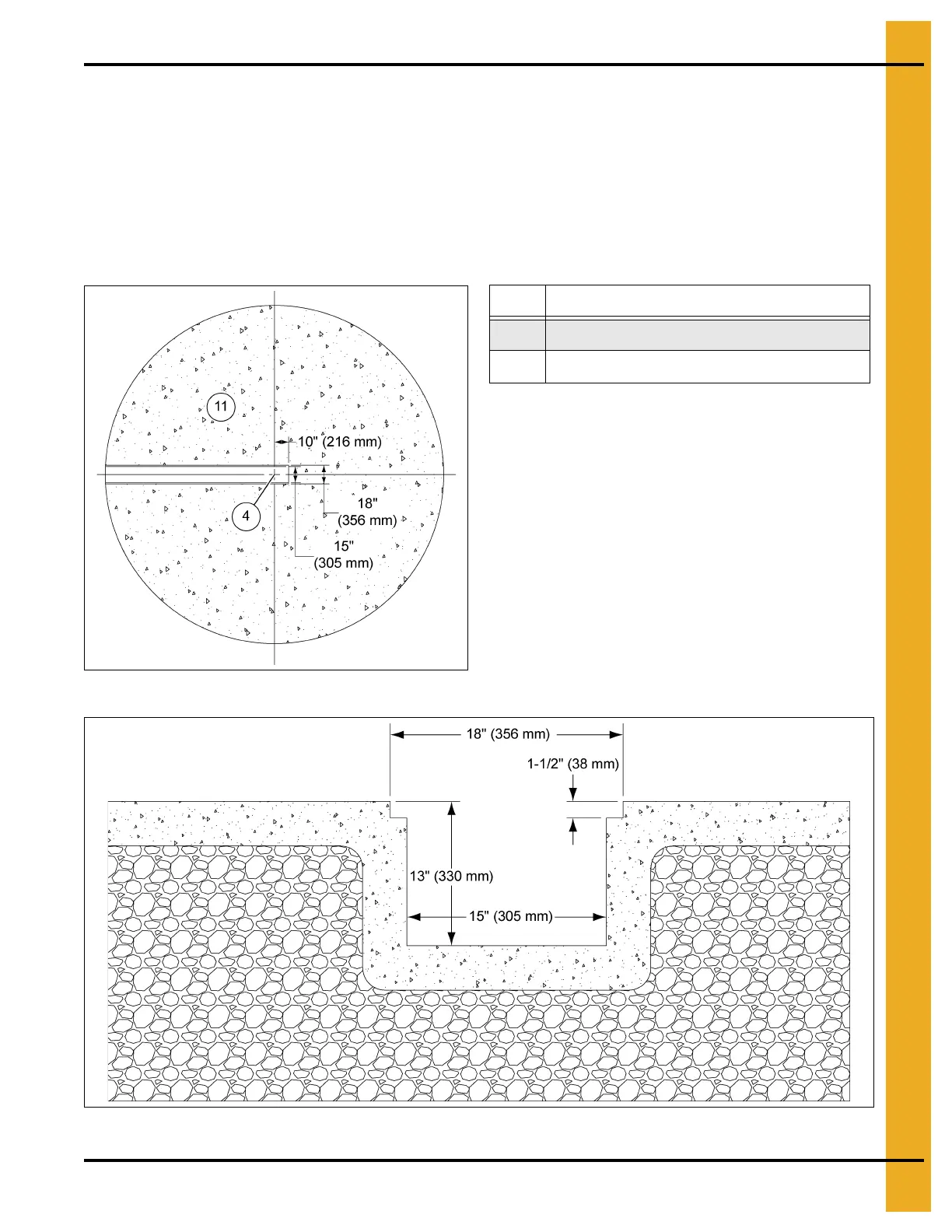

Figure 8H Top View of Foundation Knock-Out
Figure 8I Cross Section of Foundation Knock-Out
Ref # Description
4 Center of Bin
11 Concrete Bin Foundation
