GTO PRO 2000 - Accessory Hookups

26
15 15
RED BLK GRN ORG BLU RED BLK GRN WHT BLU ORG GRN RED BLK GRN ORG BLU RED BLK RED BLK
FIRST OPERATOR SECOND OPERATOR POWER IN ACCESSORY GTO RECEIVER
15 15
PRO 2000 Board
Terminal Blocks
TRANSFORMER
SOLAR
Low Voltage Wire
from Doorbell Button
15 15
RED BLK GRN ORG BLU RED BLK GRN WHT BLU ORG GRN RED BLK GRN ORG BLU RED BLK RED BLK
FIRST OPERATOR SECOND OPERATOR POWER IN ACCESSORY GTO RECEIVER
15 15
PRO 2000 Board
Terminal Blocks
TRANSFORMER
SOLAR
Low Voltage Wire
from Entry Devices
15 15
RED BLK GRN ORG BLU RED BLK GRN WHT BLU ORG GRN RED BLK GRN ORG BLU RED BLK RED BLK
FIRST OPERATOR SECOND OPERATOR POWER IN ACCESSORY GTO RECEIVER
15 15
PRO 2000 Board
Terminal Blocks
TRANSFORMER
SOLAR
Low Voltage Wire
from Safety Loops

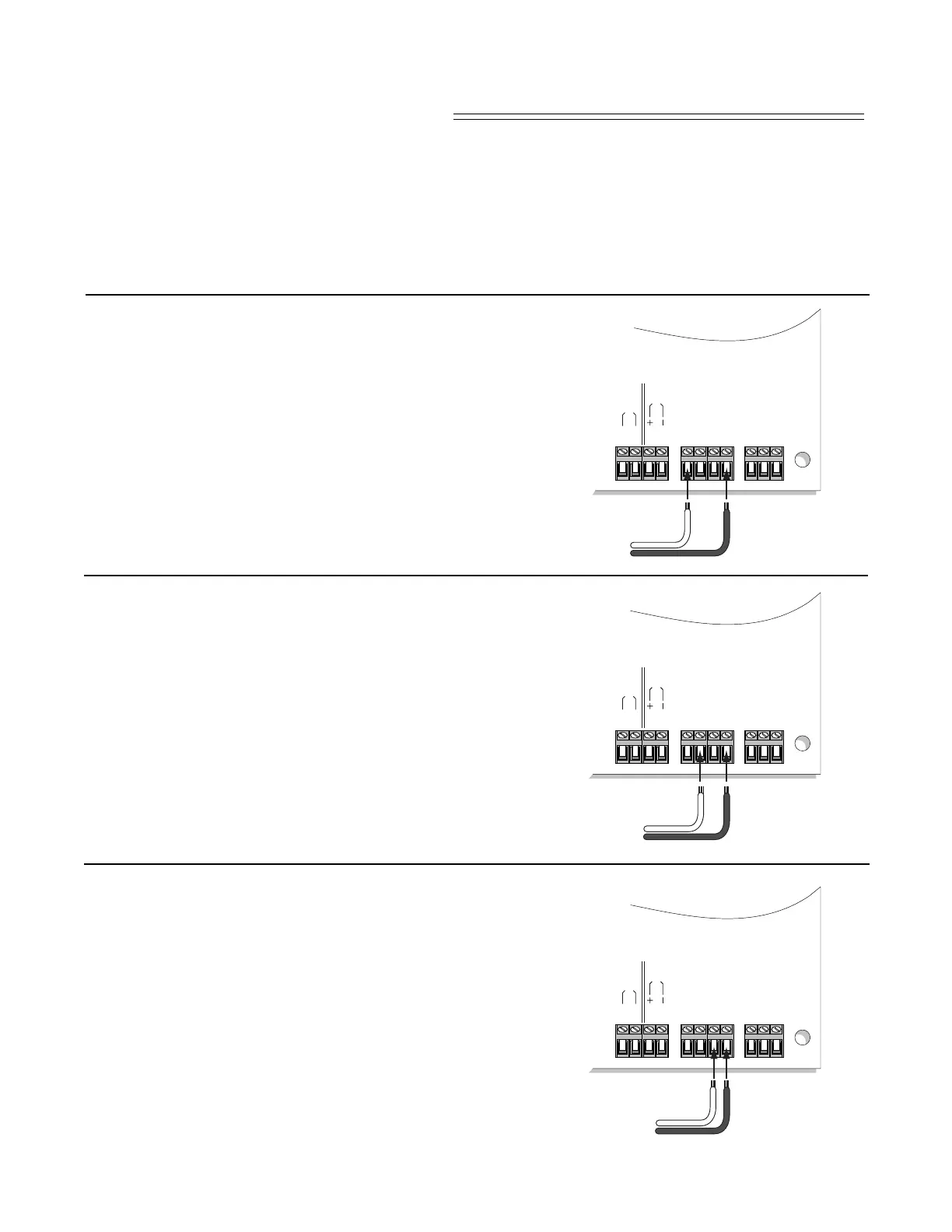

Accessory Hookups
The terminal marked GREEN is the common ground for all accessories. It is used in conjunction with the following terminals
for the use of accessories.
IMPORTANT: Be sure wires are twisted and inserted into terminal connections with no loose strands touching other
wires or terminal connections. Tighten set screws against exposed end of wires. A dab of household petroleum jelly on each
terminal will help prevent corrosion.
WHITE used with GREEN:
This is the most commonly used combination for a doorbell button.
This is a normally open contact.
First contact will start the gate.
Second contact will stop the gate.
Third contact will reverse the gate.
NOTE: When using a doorbell button, make certain the button
does not have a light, as it will drain the battery and cause it to
fail.
BLUE used with GREEN:
This combination is commonly used for an exit or entry device.
First contact will open the gate.
NOTE: If the gate is in the open position and it starts to close, the
contact of this accessory will reopen the gate. In some communities
the use of a emergency entry device is mandatory; this accessory
should be connected here.
ORANGE used with GREEN:
This combination is used for safety loops.
This contact will not open the gate; it works only while the
gate is in use. When this connection is made, the gate will
remain open or reopen if closing.
