GTO PRO 2000 - Push-to-Open Instructions; Determining The Mounting Position of The Post Bracket Assembly

31
Clearance
Open Position
Closed Position
Determining The Mounting Position of The Post Bracket Assembly
Push-to-Open Instructions
A "Push-to-Open" gate opens out toward the street (away from the property). The operator is installed on this type of gate
while in the closed (not open) position. Because every gate installation varies, the push-to-open installation of the GTO/PRO
2000 and GTO/PRO 2200 will need to be customized. In most cases this only requires drilling two new holes in the post
bracket.
Step P1:
The operator and brackets are installed on the gate post in the same way as pull-to-open installations. The post bracket is
mounted at the inside edge of the post. The post pivot brackets are attached with one bolt at the pivot point and the
operator(s) is attached at the rear mount. See pages 10-12, Step 1-9 for details.
Step P2:

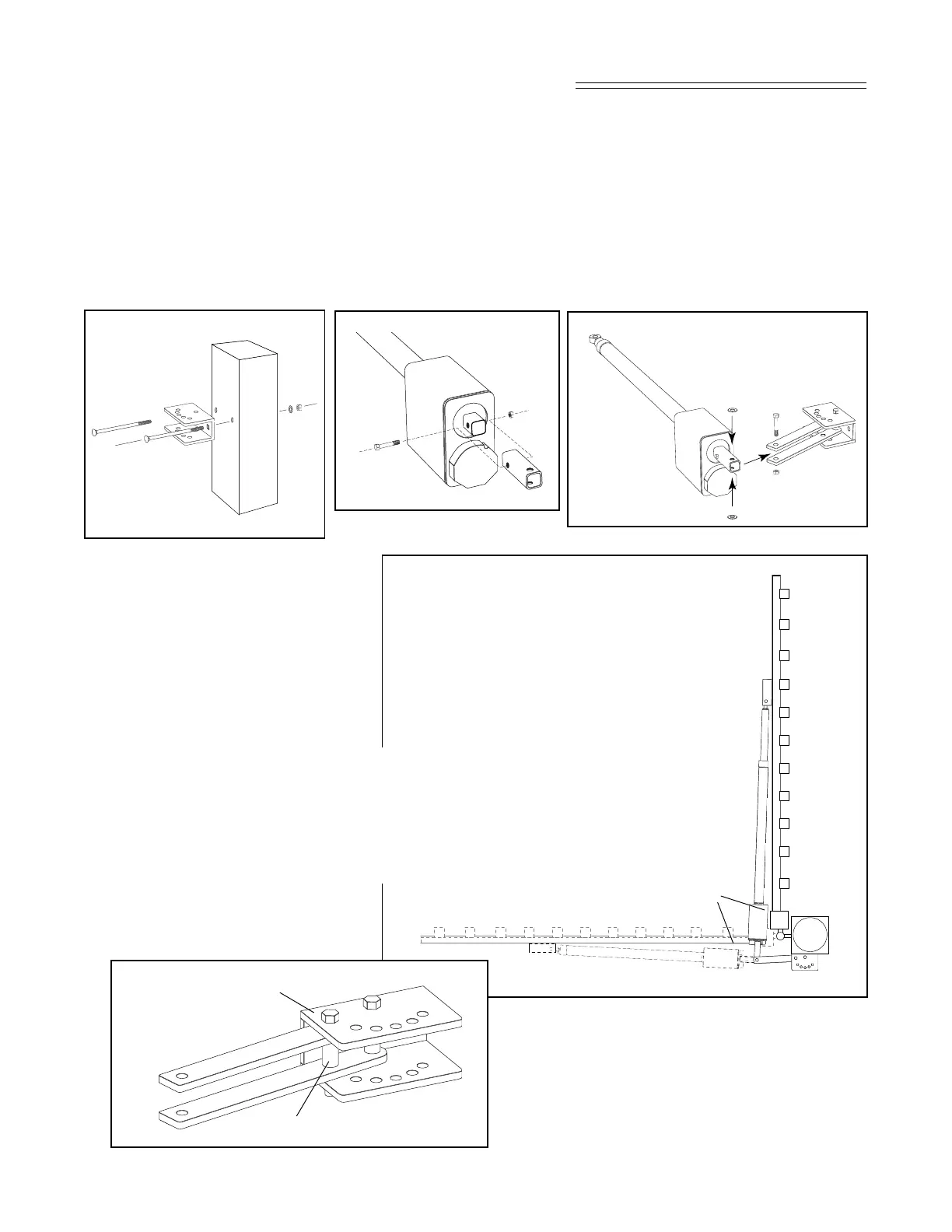

Find a position for the post pivot brackets where the operator has clearance in both the
open and closed positions and clamp operator into position (see examples of clearance on
page 13). Mark the point on the post pivot bracket where the
1
/
2
" holes will need to be
drilled. Drill the holes then secure the post pivot bracket using the
1
/
2
" bolt, spacer,
washer and lock nut.
New Hole Position
Spacer
