3-7

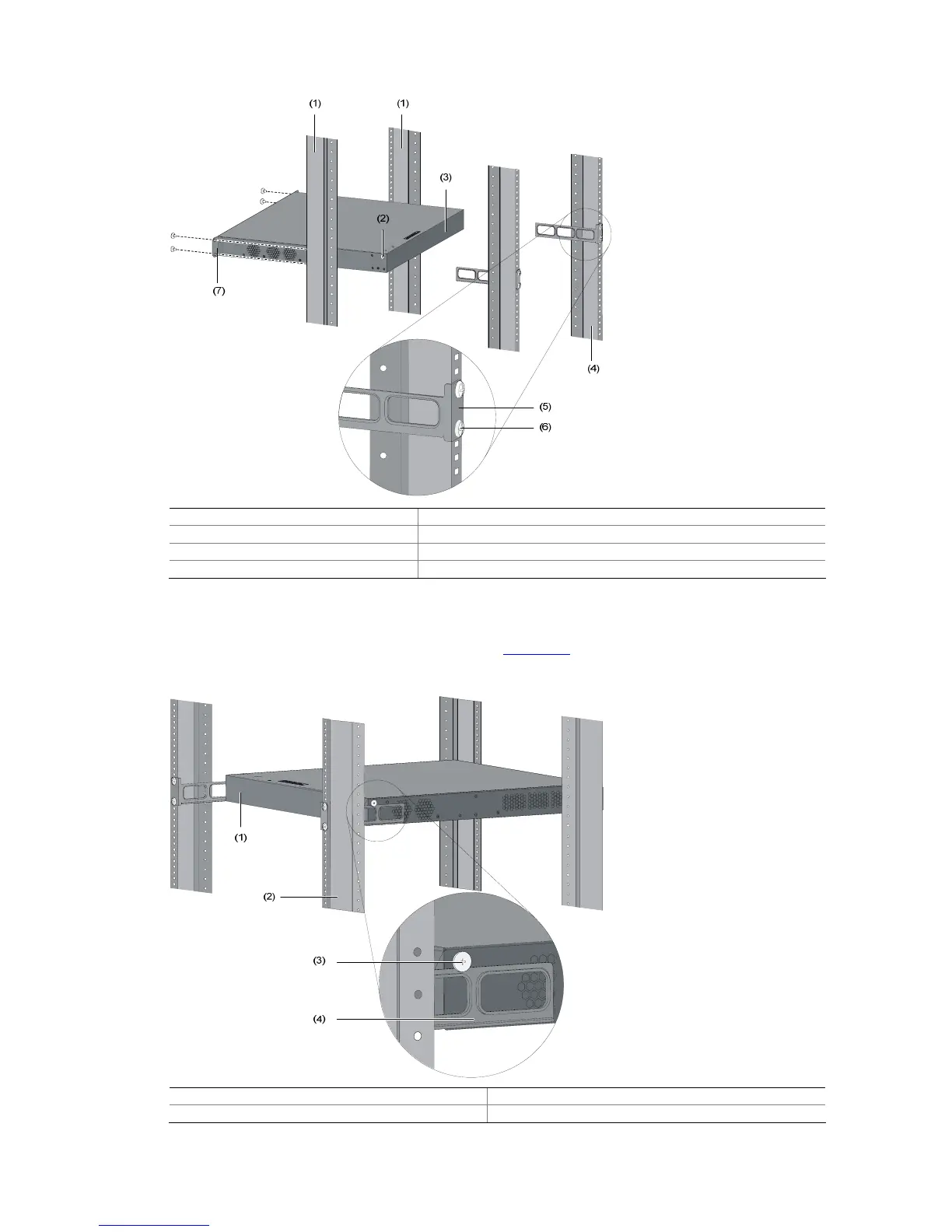

Figure 3-8 Fix front and rear mounting ears
(1) Front square-holed bracket (2) Load-bearing screw: Used to bear the weight
(3) Rear panel (4) Rear square-holed bracket
(5) Rear mounting ear (6) Screw used to fix rear mounting ears to rear brackets
(7) Front mounting ear
After the switch is pushed into the cabinet, ensure that the upper edge of rear mounting ears is tightly
contacted with the load-bearing screw, as shown in
Figure 3-9.
Figure 3-9 Effect diagram of front and rear mounting ear installation (1)
(1) Rear panel (2) Rear square-holed bracket
(3) Load-bearing screw (4) Rear mounting ear
