3-6

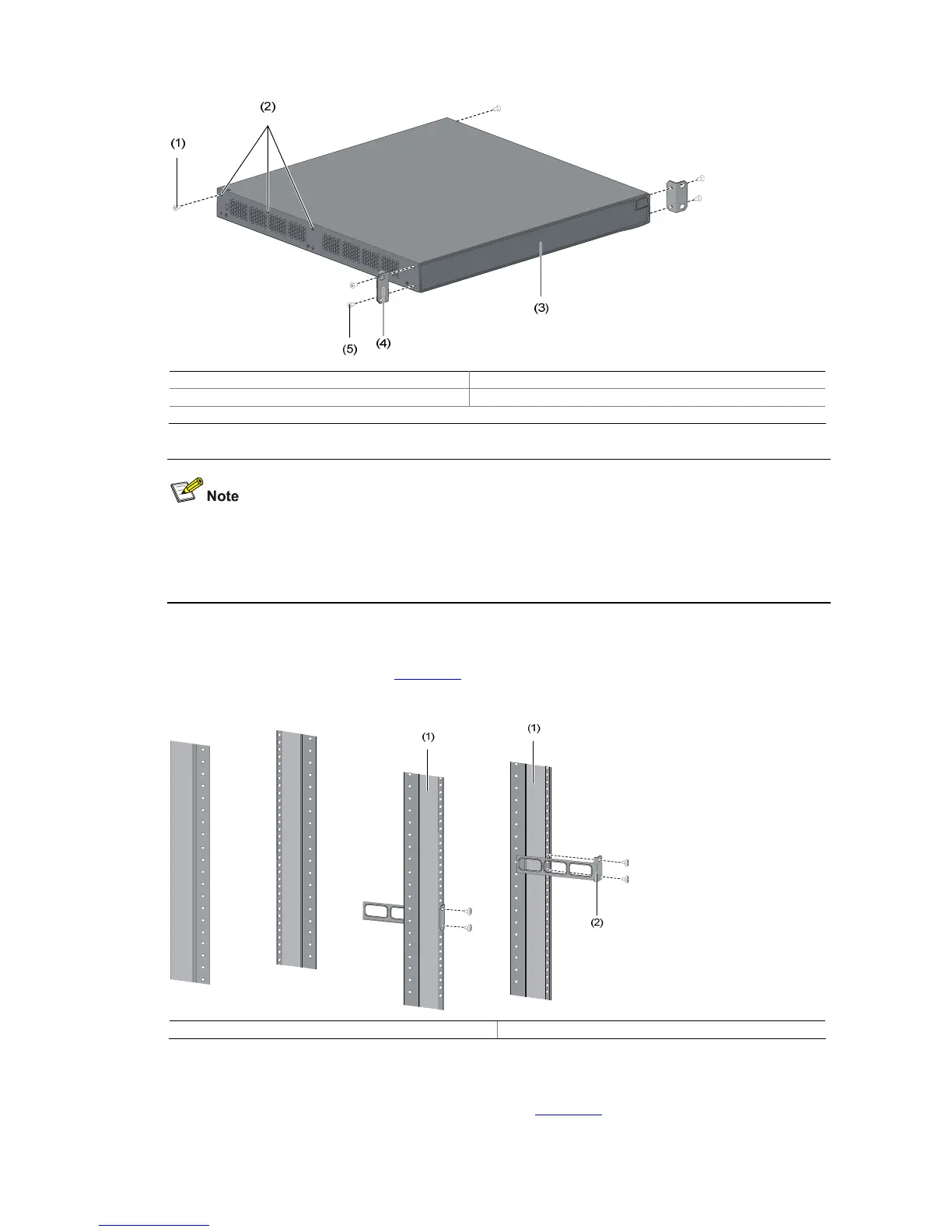

Figure 3-6 Fix front mounting ears and load-bearing screws
(1) Load-bearing screw (2) Optional positions for Load-bearing screw
(3) Front panel (4) Front mounting ear
(5) Screw used to fix front mounting ears to the switch
There are three positions to mount a load-bearing screw on both sides of a switch. You should select a
proper position according to the actual requirements. The rear mounting ears tightly contacted with the
load-bearing screws can support the switch.
4) Select a position to install the switch and fix the rear mounting ears to the rear brackets with screws
and captive nuts, as shown in
Figure 3-7.
Figure 3-7 Fix rear mounting ears
(1) Rear square-holed bracket (2) Rear mounting ear
5) Hold the bottom of the switch with one hand and the front part of the switch with the other hand, and
push the switch into the cabinet gently, as shown in
Figure 3-8.
