3-5

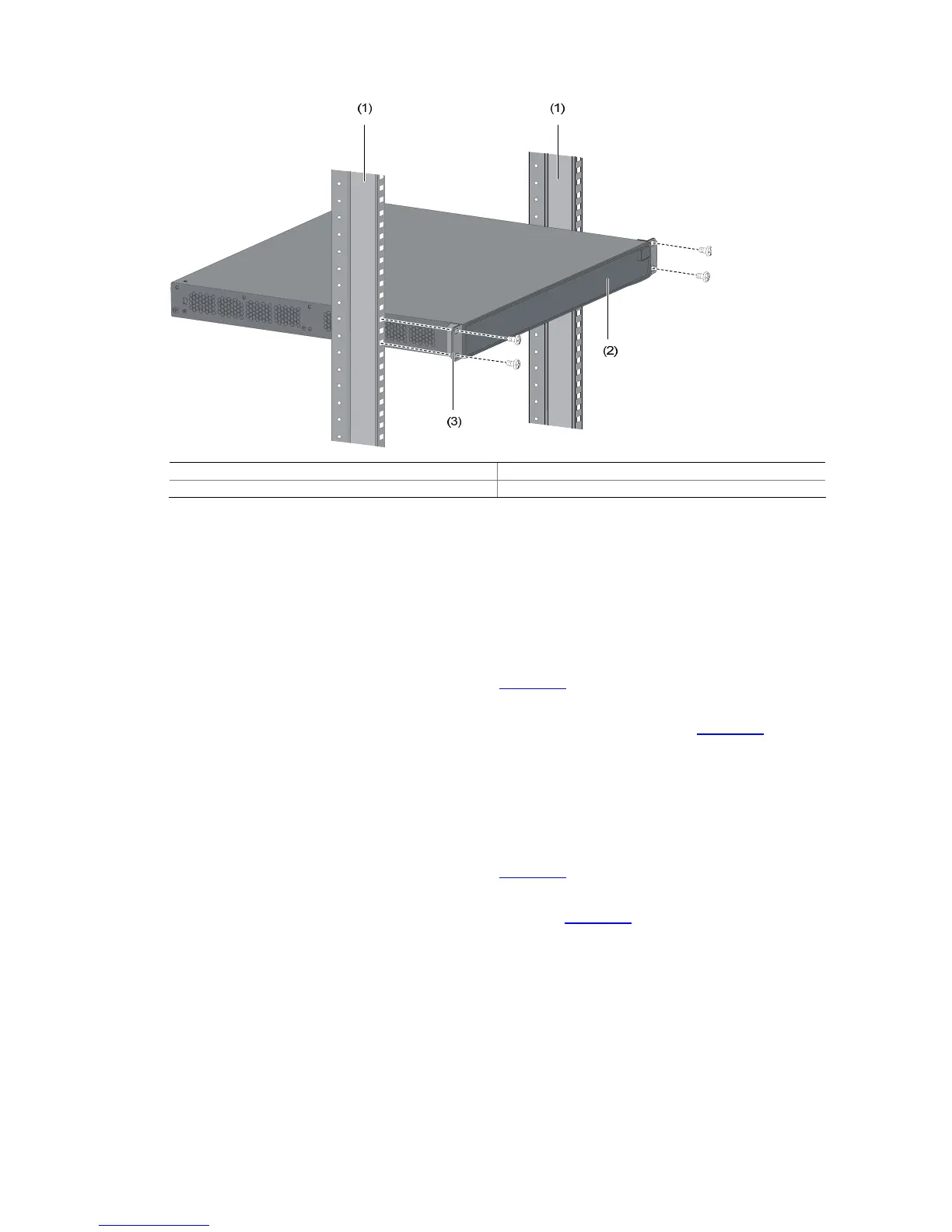

Figure 3-5 Fix front mounting ears (2)
(1) Front square-holed bracket (2) Front panel
(3) Front mounting ear
Use front mounting ears and a tray to install a switch
Follow these steps to install a switch into a 19-inch standard cabinet:
1) Wear an ESD-preventive wrist strap to check the grounding and stability of the cabinet.
2) Fix the delivered tray horizontally in a proper position.
3) Take out the screws which are packed together with the front mounting ears, and fix one end of the
front mounting ears to the switch, as shown in
Figure 3-4.
4) Place the switch on the tray horizontally, slide the tray into the cabinet, and fix the other end of
mounting ears to the front brackets with crews and captive nuts, as shown in
Figure 3-5.
Use front and rear mounting ears to install a switch
Follow these steps to install a switch into a 19-inch standard cabinet:
1) Wear an ESD-preventive wrist strap to check the grounding and stability of the cabinet.
2) Take out the screws which are packed together with the front mounting ears, and fix one end of the
front mounting ears to the switch, as shown in
Figure 3-4.
3) Take out the load-bearing screws (packed together with the rear mounting ears) and place them in
a proper position on the sides of the switch, as shown in
Figure 3-6.
