5-6

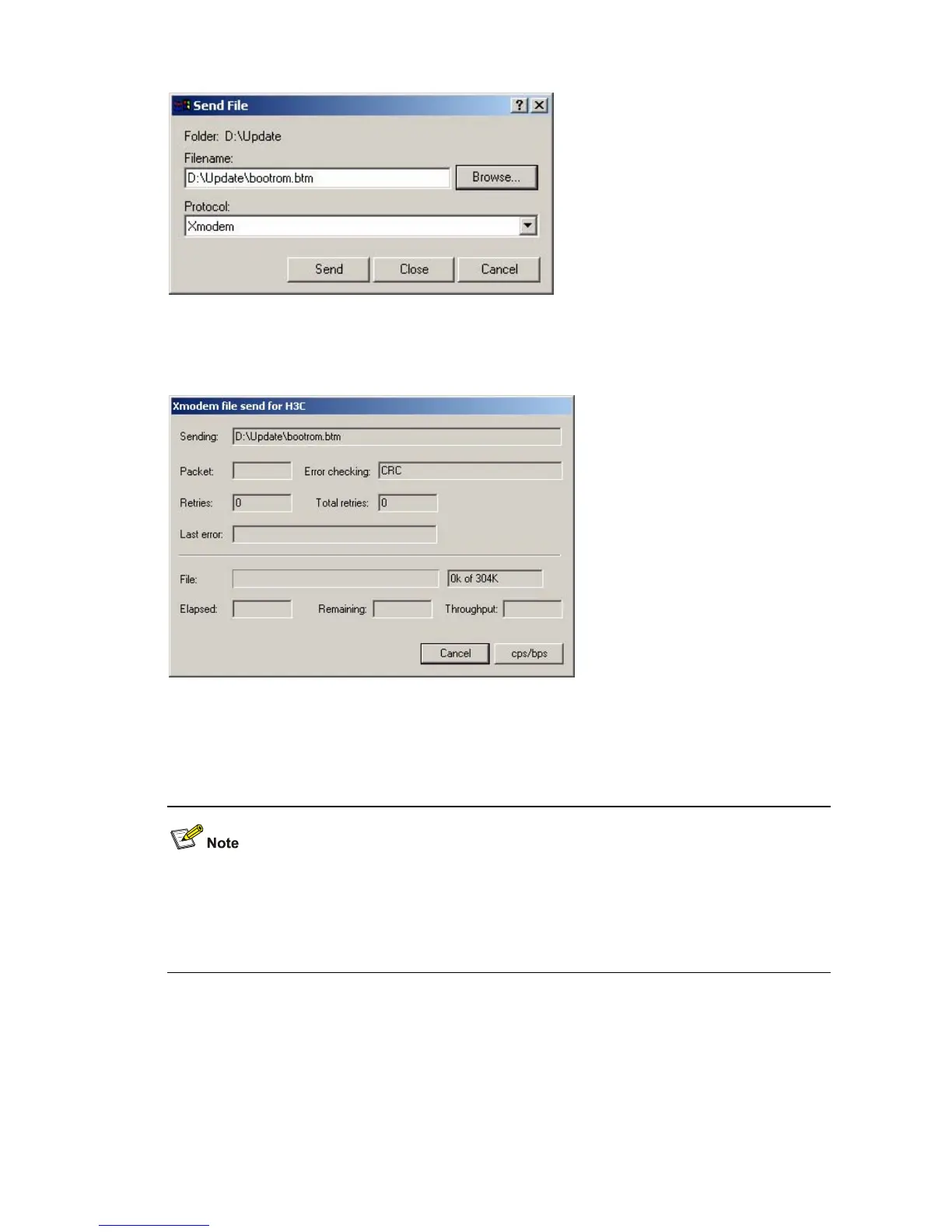

Figure 5-4 Send file dialog box
Step 8: Click <Send>. The system displays the following page.
Figure 5-5 Sending file page
After the download completes, the system displays the following information:
Loading ...CCCCCCCCCC done!
You do not need to reset the HyperTerminal’s bits per second and can skip the last step if you have
chosen 9600 bps. In this case, the system displays the prompt “BootROM is updating
now.....................................done!” instead of the prompt "Your baudrate should be set to 9600 bps
again! Press enter key when ready".
Step 9: Reset HyperTerminal’s bits per second to 9600 bps (refer to Step 4 and 5). Then, press any key
as prompted. The system will display the following information when it completes the loading.
Bootrom is updating now.....................................done!
Loading host software
Follow these steps to load the host software:
