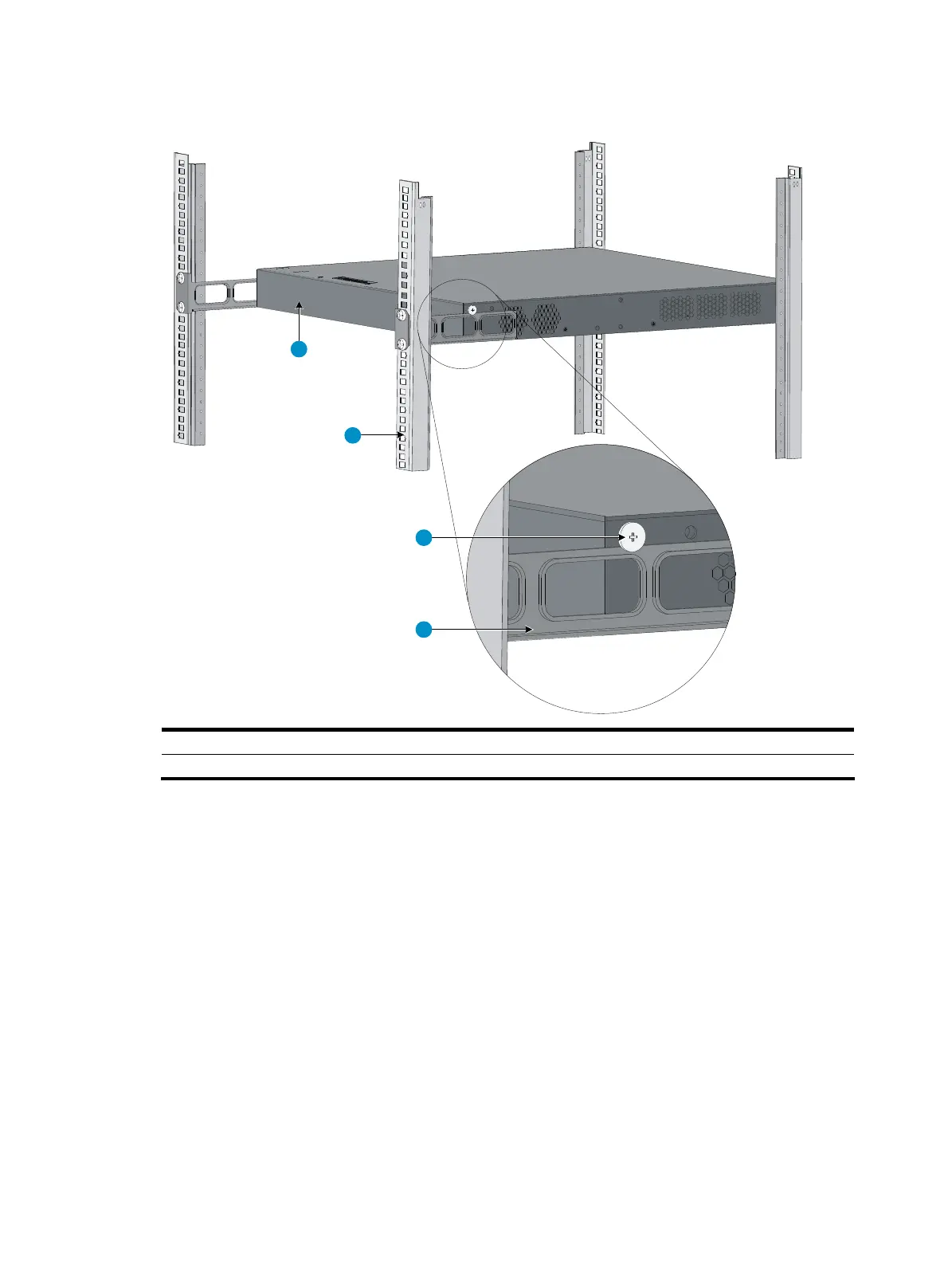

Figure 28 Mount the switch to the rack by using front and rear mounting brackets
1
2
3
4
(1) Switch rear panel (2) Rear rack post
(3) Load-bearing screw (4) Rear mounting bracket
Step8 Have another person to fix the front mounting brackets to the front rack posts by using the M6 screws,
making sure that the front and rear mounting brackets can fix the switch steadily into the rack, as shown
in Figure 29.
