38
Follow these steps to set terminal parameters:

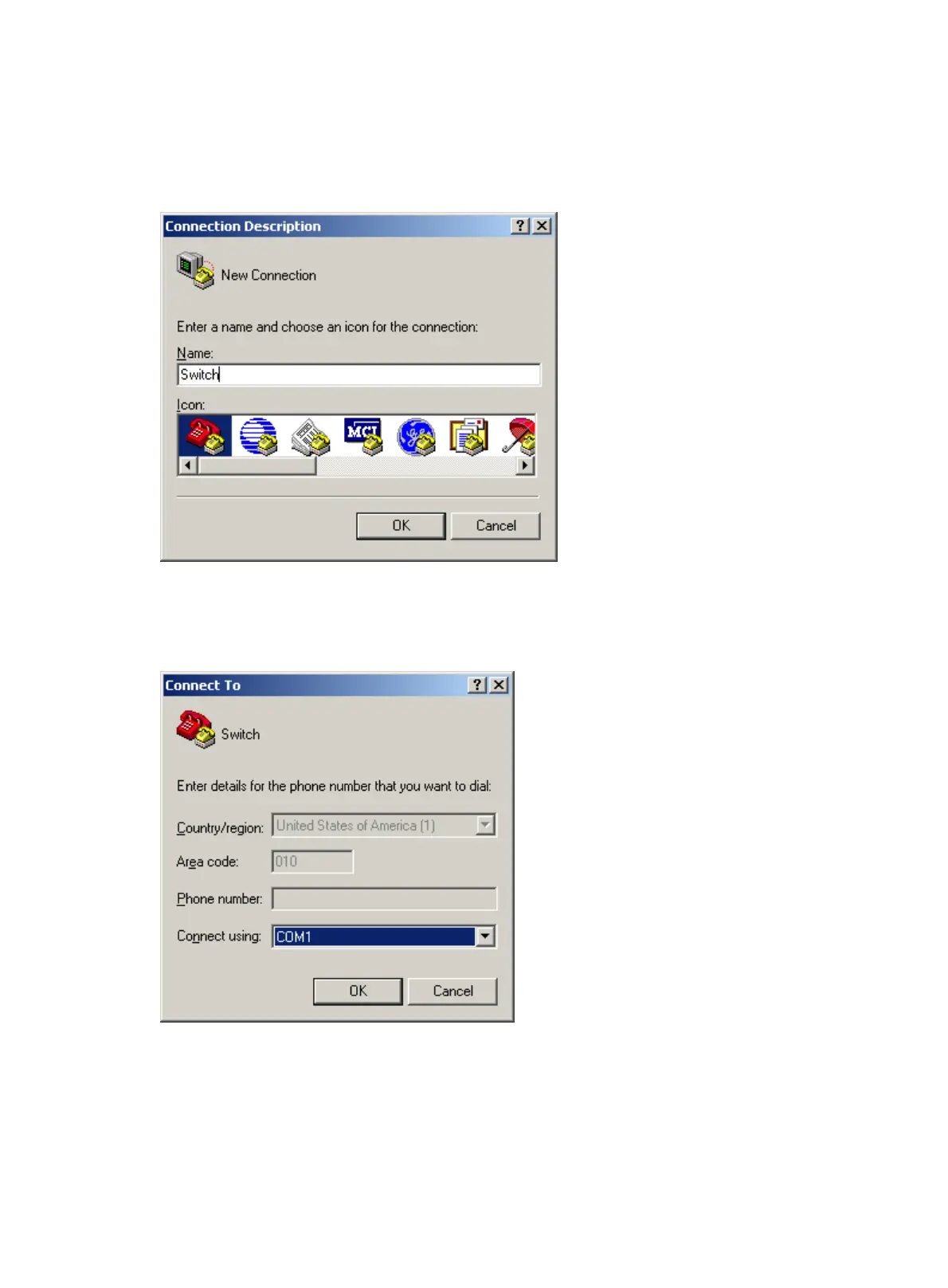

Step1 Select Start > All Programs > Accessories > Communications > HyperTerminal to enter the
HyperTerminal window. The Connection Description dialog box appears, as shown in Figure 50.
Figure 50 Connection description
of the HyperTerminal
Step2 Type the name of the new connection in the Name text box and click OK. The following dialog box
appears. Select the serial port to be used from the Connect using drop-down list.
Figure 51 Set the serial port used by the HyperTerminal connection
Step3 Click OK after selecting a serial port and the following dialog box appears. Set Bits per second to 9600,
Data bits to 8, Parity to None, Stop bits to 1, and Flow control to None.
