H3C S5500-EI Series Installation Manual

1-23
z You are recommended to use XFP transceivers of H3C on the S5500-EI series.
z The types of XFP transceivers may vary over time. Consult H3C marketing personnel or technical
support personnel to obtain the latest information about XFP transceivers.
z For specifications of XFP transceivers, refer to H3C Low End Series Ethernet Switches Pluggable
Module Manual.
One-port 10 GE XFP Interface Module

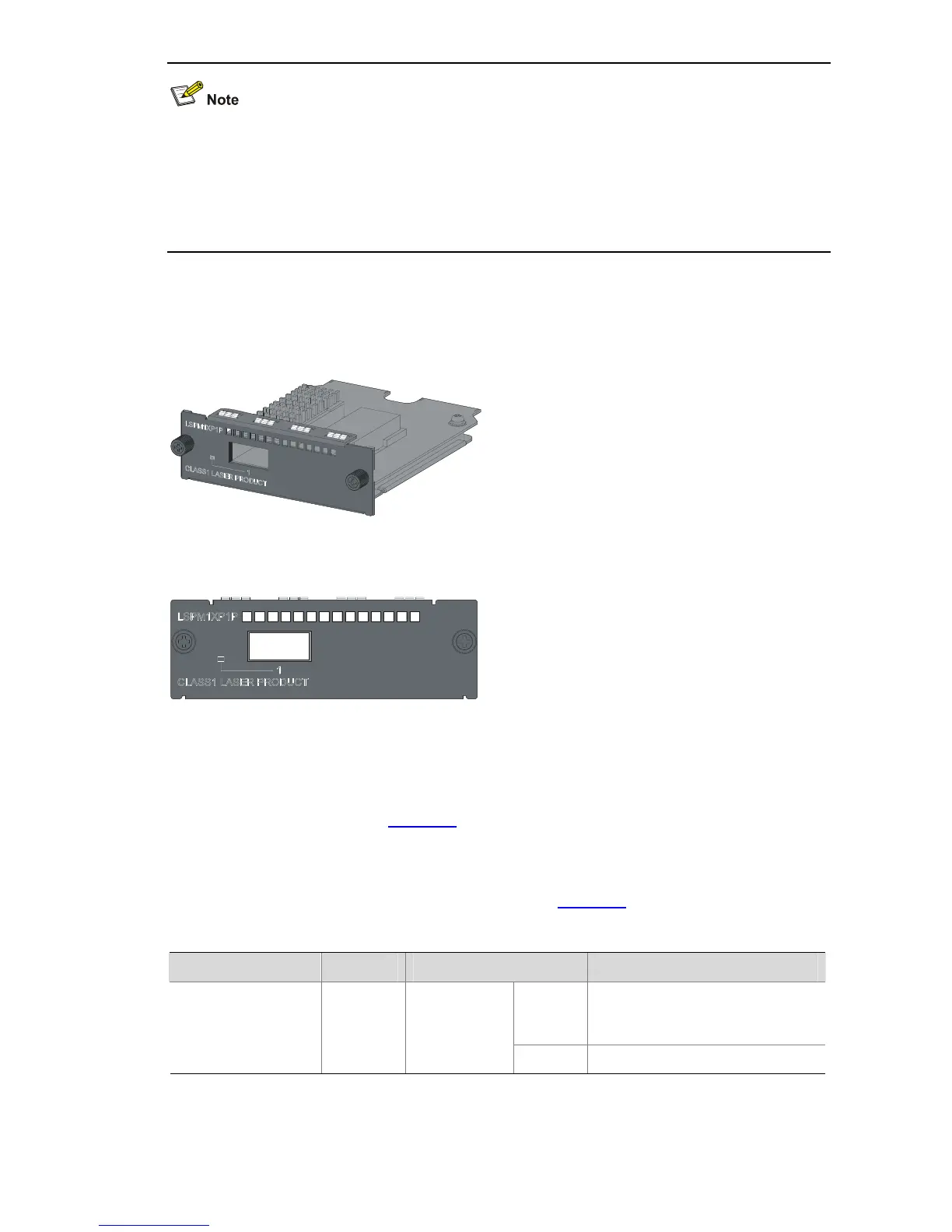

Figure 1-22 One-port 10 GE XFP interface module
Figure 1-23 Front panel of one-port 10 GE XFP interface module
This module provides one 10 Gbps XFP optical interface. You can select the following XFP transceivers
as required. A one-port 10 GE XFP interface module provides one 10 Gbps XFP optical port. You can
insert an XFP transceiver into the port to connect it to another XFP port through an optical fiber. You can
select the XFP transceivers list in
Table 1-20 as required.
Description of LEDs of Interface Modules
There is a LED for each port on the interface module panel. Table 1-21 describes the LEDs.
Table 1-21 Description of LEDs on interface modules
LED Mark Status Description
On
The port is normally connected.
The LED blinks quickly when the
port is sending or receiving data.
Port LED of an
interface module
—
This LED is
not affected
by the mode
button.
Off The port is not up.
