3-18

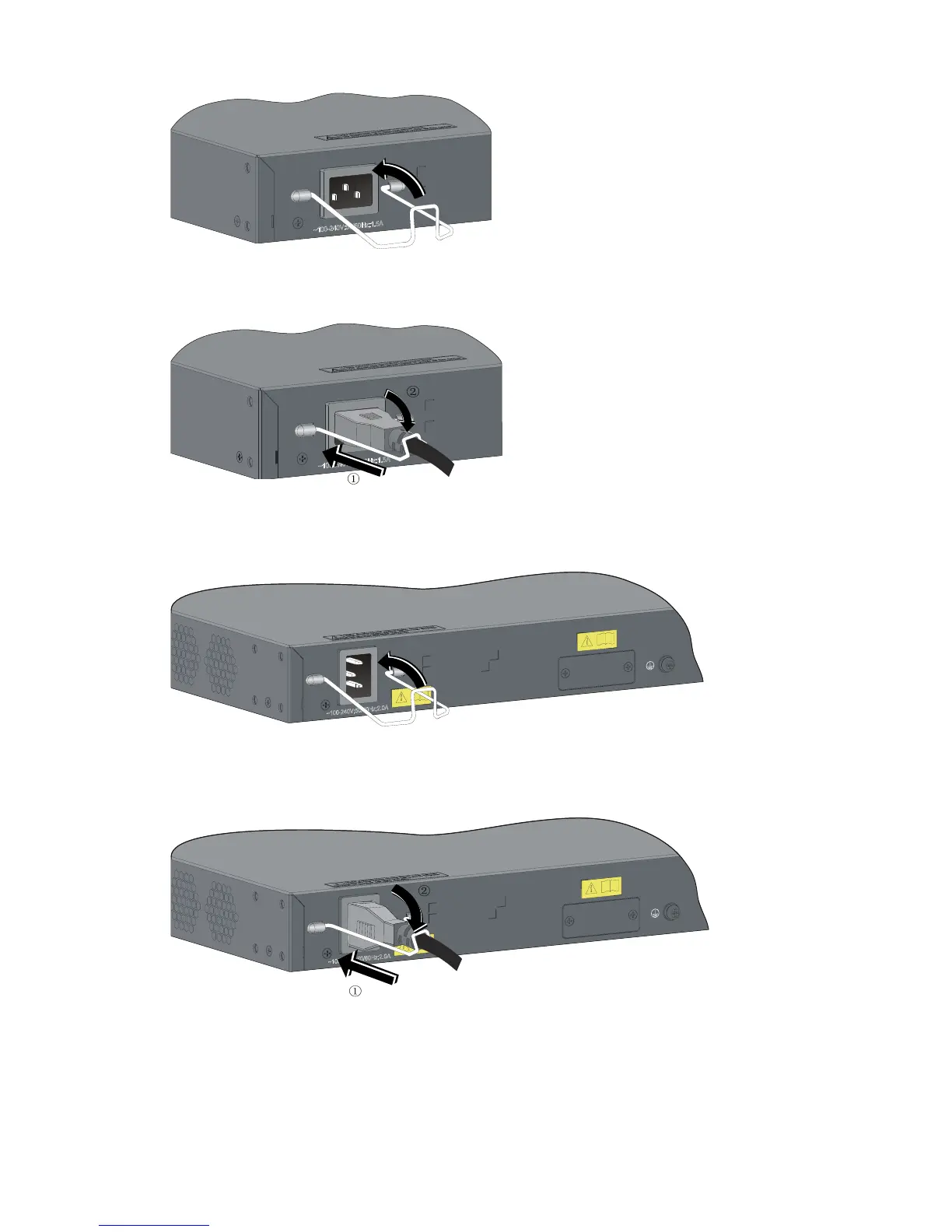

Figure 3-21 Connect an AC power cord to a horizontal AC power socket (1)
Figure 3-22 Connect an AC power cord to a horizontal AC power socket (2)
Figure 3-23 Connect an AC power cord to a vertical AC power socket (1)
Figure 3-24 Connect an AC power cord to a vertical AC power socket (2)
Connecting the -48V DC Power Cord
Both the S5500-28C-EI-DC and PSR150-D of the S5500-28F-EI have a –48 VDC power receptacle,
allowing the use of the –48 VDC power supply in the equipment room.
