H3C S5500-EI Series Installation Manual

4-5
Step5 Click Properties in the HyperTerminal window to enter the Switch Properties dialog box. Click the
Settings tab, set the emulation to VT100, and then click OK.

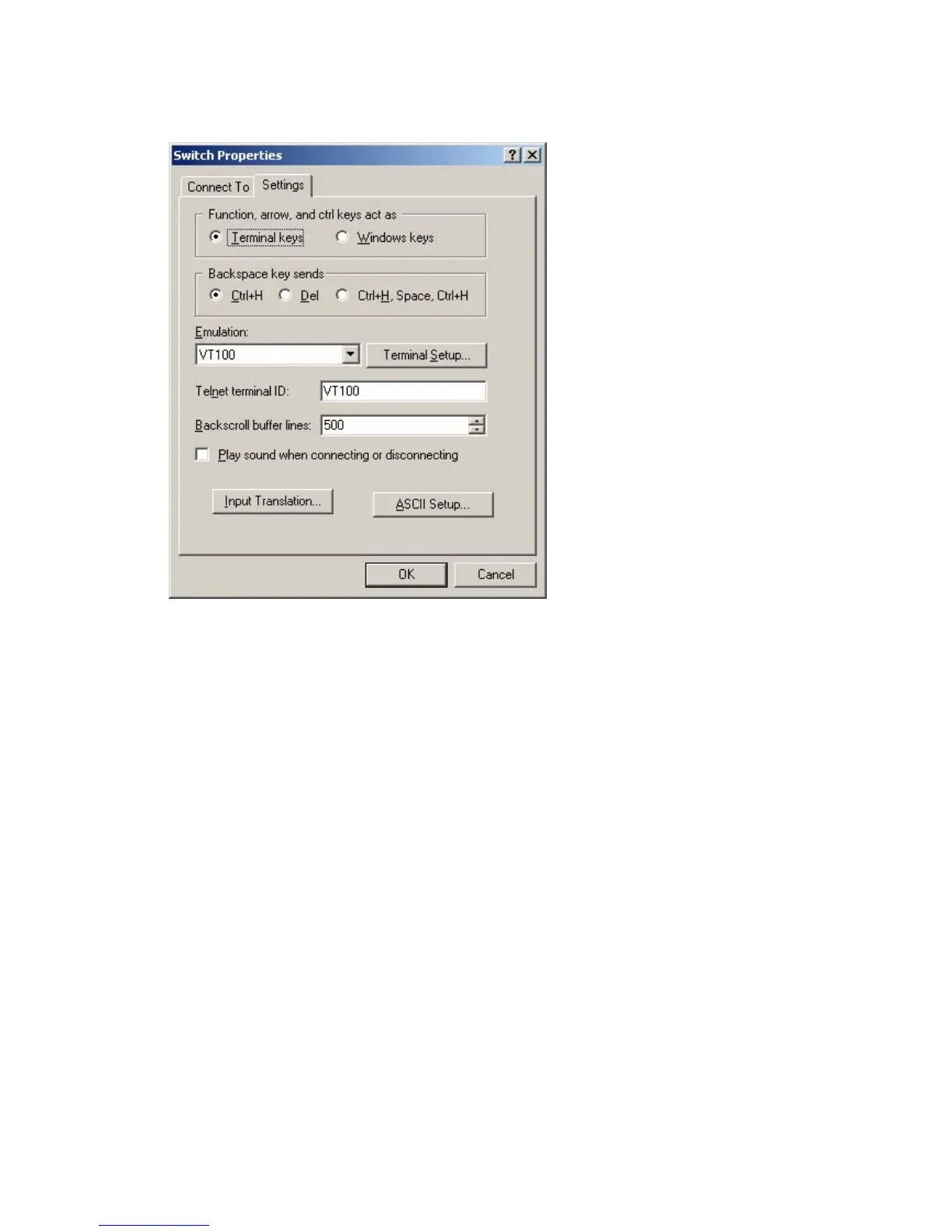

Figure 4-7 Set terminal emulation in Switch Properties dialog box
Booting the Switch
Checking before Powering on the Switch
Before powering on the switch, verify that:
z The power cord and ground cable are properly connected.
z The power supply voltage is consistent with that required by the switch.
z The console cable is properly connected; the terminal (which can be a PC) used for configuration
has been started; and the configuration parameters have been set.
Powering on the Switch
All the S5500-EI series Ethernet switches have the same Boot ROM display style. This document uses
the Boot ROM display of S5500-28F-EI as an example:
Starting......
***********************************************************
* *
* H3C S5500-28F-EI BOOTROM, Version 510 *
* *
***********************************************************
Copyright (c) 2004-2009 Hangzhou H3C Tech. Co., Ltd.
