H3C S5500-EI Series Installation Manual

4-4

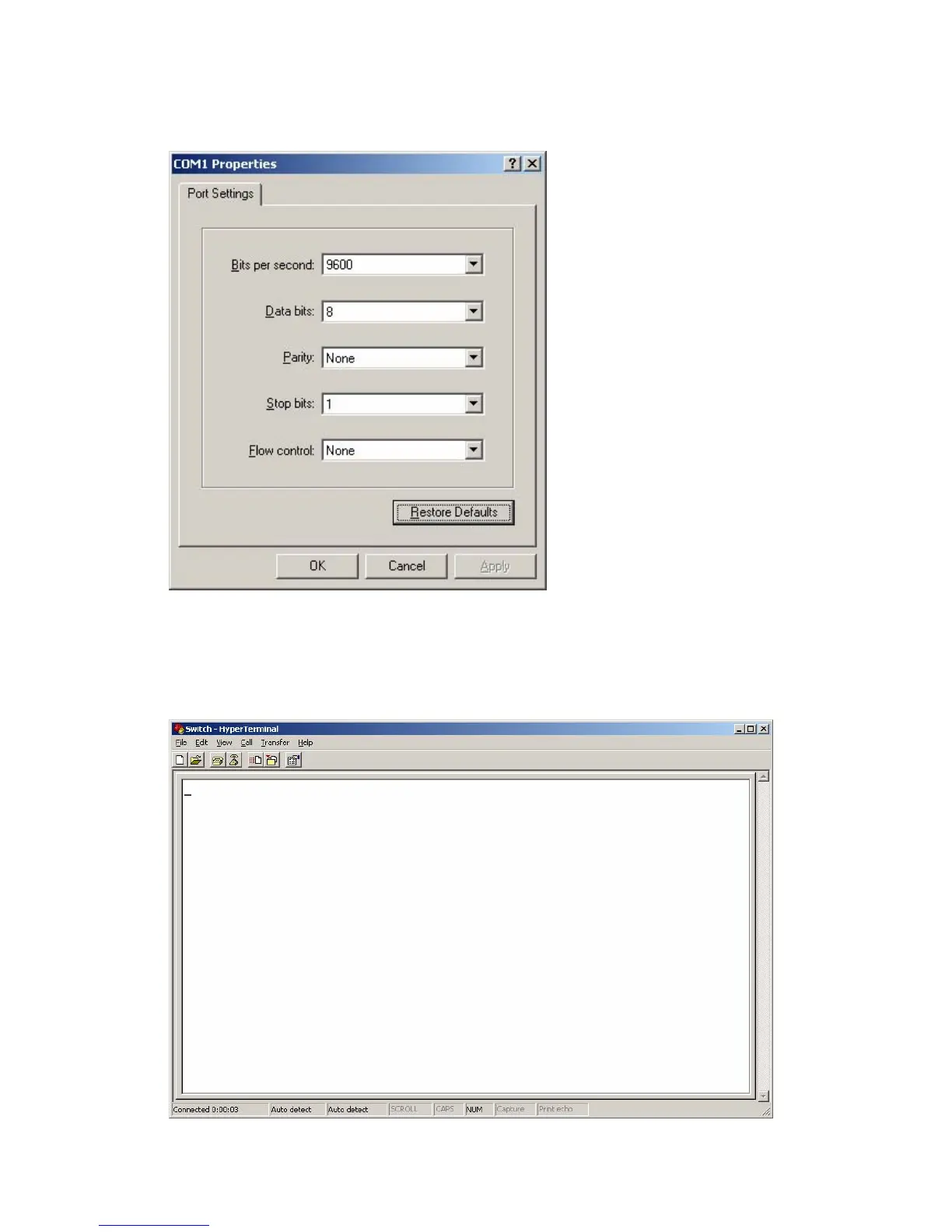

Step3 Click OK after selecting a serial port. The following dialog box appears. Set Bits per second to 9600,
Data bits to 8, Parity to None, Stop bits to 1, and Flow control to None.
Figure 4-5 Set the serial port parameters
Step4 Click OK after setting the serial port parameters and the system enters the HyperTerminal window
shown below.
Figure 4-6 HyperTerminal window
