14

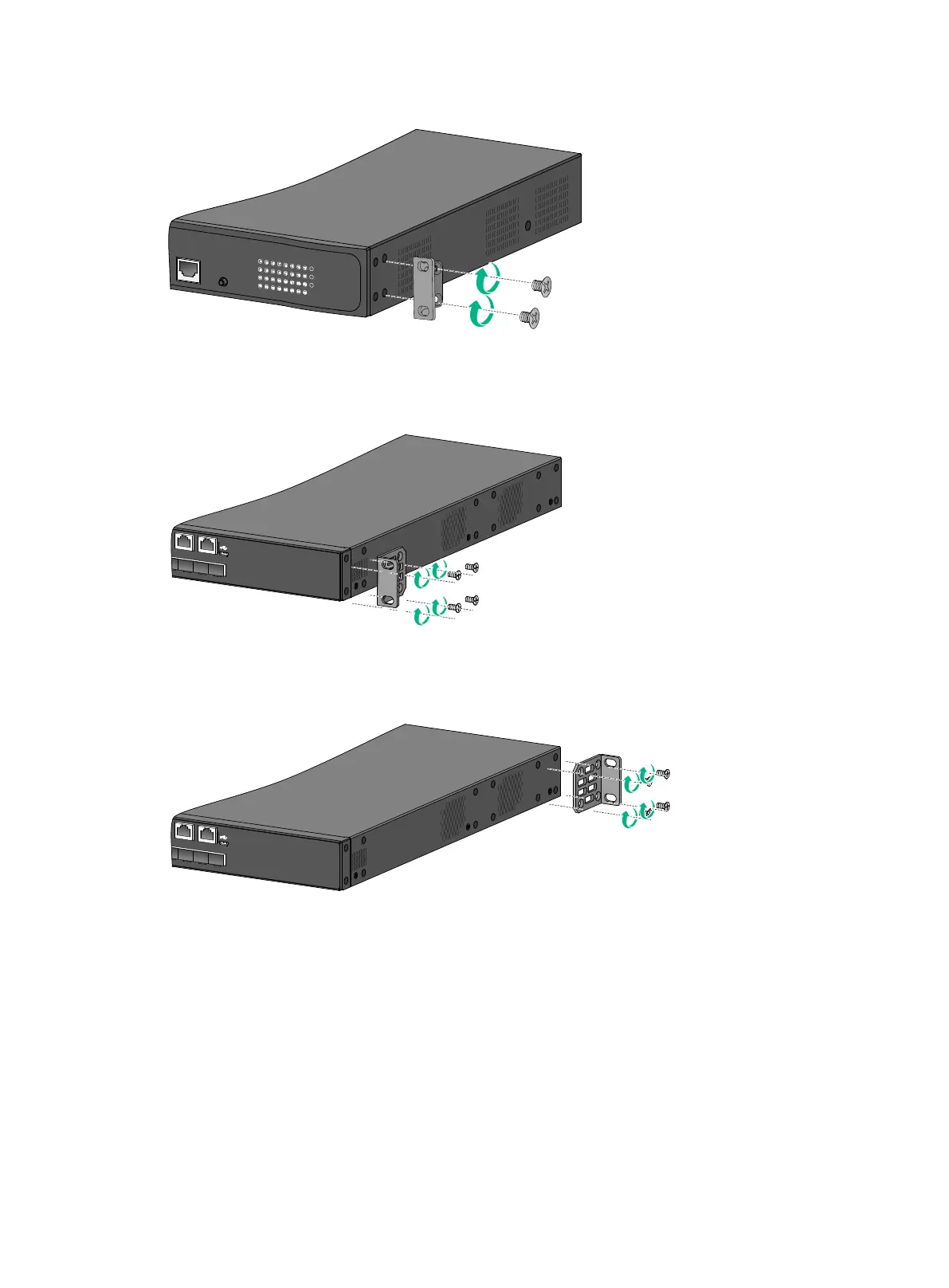

Figure 3 Attaching mounting bracket A (S5120V2-28P-HPWR-LI switch)
Figure 4 Attaching mounting bracket B (mounting position near the port side, S5560S-28F-SI
switch)
Figure 5 Attaching mounting bracket B (mounting position near the power supply side,
S5560S-28F-SI switch)
