27
If you orient the DC power cord connector upside down, you cannot insert the plug into the
power receptacle.
2. Use a flat-head screwdriver to fasten the screws on the power cord connector, as shown in
Figure 26.
3. Connect the other end of the power cord to an RPS.

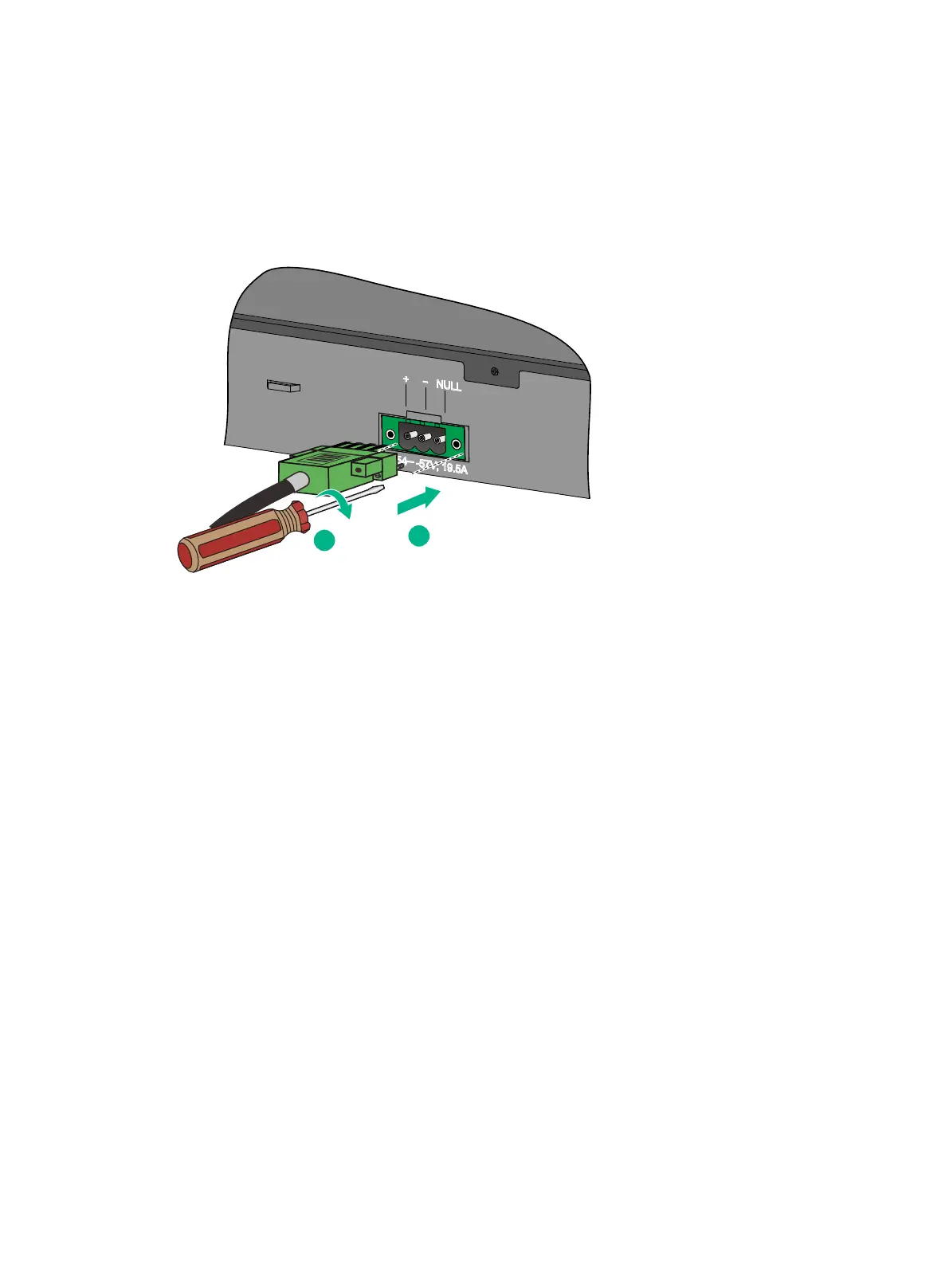

Figure 26 Connecting the DC power cord for the fixed DC power supply
(S5120V2-28P-HPWR-LI switch)
Connecting the power cord for a CA-70A12 or PSR75-12A
power supply
The power cord connection procedure is similar for the CA-70A12 and PSR75-12A power supplies.
The following procedure connects the power cord for a PSR75-12A power supply.
To connect the power cord for a PSR75-12A power supply:
1. Wear an ESD wrist strap. Make sure the wrist strap makes good skin contact and is reliably
grounded.
2. Install the power cord retainer clip. Insert the two ends of the clip into the holes in the brackets
on the left of the power receptacle.
3. Pull the power cord retainer clip leftward, as shown in Figure 27.
4. Connect the female connector of the power cord to the power receptacle on the power supply.
See callout 1 in Figure 28.
5. Pull the power cord retainer clip rightward to secure the connector to the power receptacle. See
callout 2 in Figure 28.
6. Connect the other end of the power cord to an AC power source or a high-voltage DC power
source.
