H3C S5560S-SI Series User Manual

41
NOTE:
The following figures use the SFP+ ports on
S5120V2-28P-HPWR-LI switches as an example.
For
the ports that can be used for IRF connections, see Table 15.

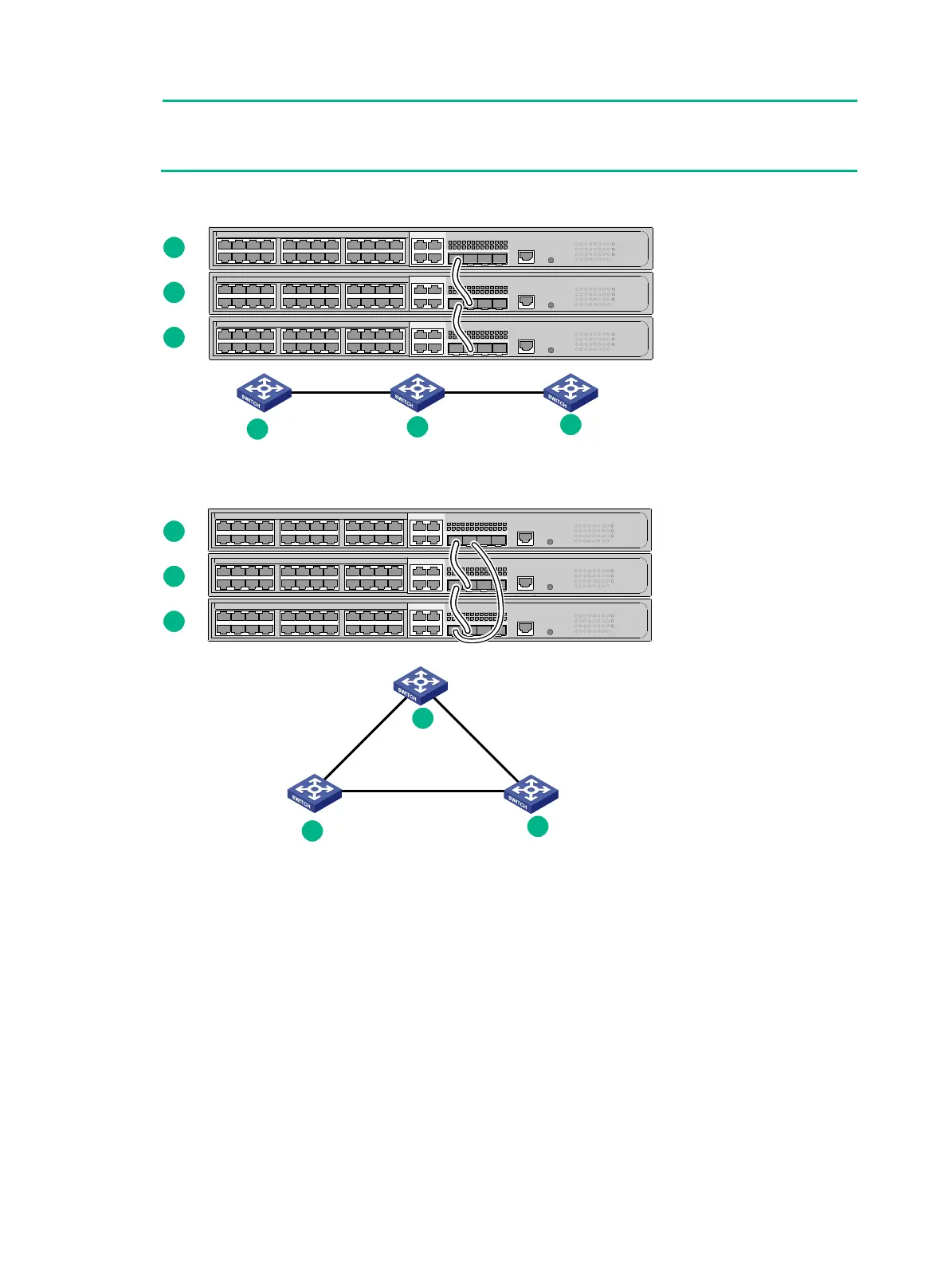

Figure 38 IRF fabric in daisy chain topology
Figure 39 IRF fabric in ring topology
Identifying IRF physical ports on the member switches
Identify the IRF physical ports on the member switches according to your topology and connection
scheme.
To uses physical ports on a switch in the S5500V3-SI switch series (excluding the S5500V3-24P-SI
and S5500V3-48P-SI) for IRF connection, obey the following rules as a best practice:
•
Use four highest numbered SFP+ ports if the switch has six SFP+ ports.
•
Use two highest numbered SFP+ ports if the switch has four SFP+ ports.
With these ports as IRF physical ports, the IRF packets are placed in queues of higher forwarding
priorities, ensuring smooth IRF packet forwarding in the event of large amounts of data packets and
avoiding IRF splitting and other faults.
Table 15 shows the physical ports that can be used for IRF connection and the port use restrictions.
1
2
3
IRF
-
port1
IRF-
port2
IRF-port
1
IRF
-port
2
1
2
3
1
2
3
IRF-port1
IRF-port2
IRF-
port1
IRF-port1
IRF-port
2
IRF-port2
1
2
3
