32

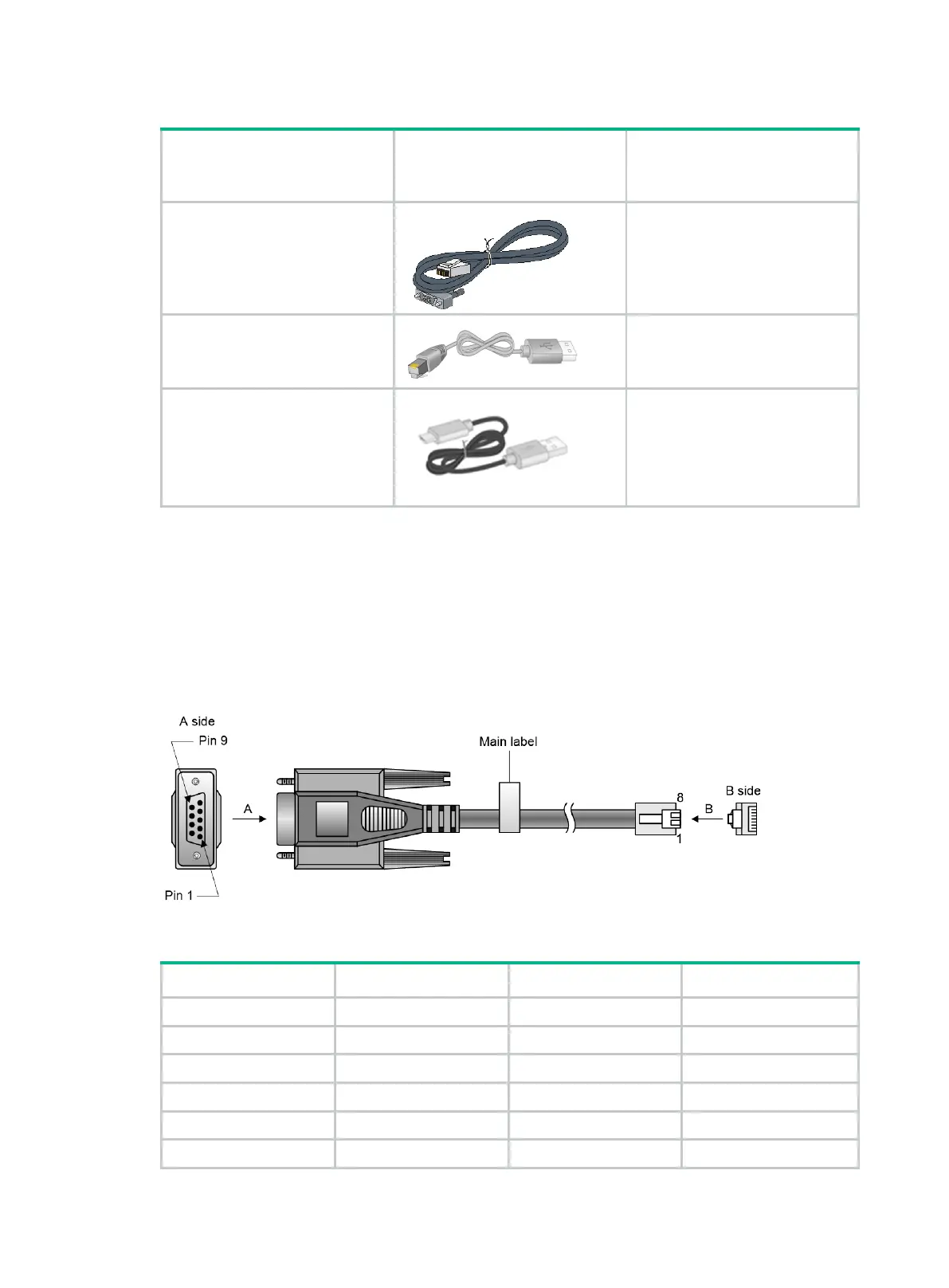

Table 12 Console cable views
Console cable type Console cable view
Product code for the
recommended H3C console
cable
DB9-to-RJ45 console cable
04042967
USB-to-RJ45 console cable
0404A1EE
Micro USB console cable
User supplied,
Connecting a console cable
Connecting a DB9-to-RJ45 console cable
A DB9-to-RJ45 console cable is an 8-core shielded cable, with a crimped RJ-45 connector at one
end for connecting to the serial console port of the switch, and a DB-9 female connector at the other
end for connecting to the serial port on the configuration terminal.
Figure 31 DB9-to-RJ45 console cable
Table 13 DB9-to-RJ45 console port signaling and pinout
RJ-45 Signal DB-9 Signal
1 RTS 8 CTS
2 DTR 6 DSR
3 TXD 2 RXD
4 SG 5 SG
5 SG 5 SG
6 RXD 3 TXD
