7. Connect the RJ-45 connector of the cable to the console port of the switch.
Connecting a micro USB console cable
To connect the switch to the configuration terminal through a micro USB console cable:
1. Connect the standard USB connector to the USB port of the PC or configuration terminal.
2. Connect the micro USB connector to the micro USB console port on the switch.
3. Click the following link, or copy it to the address bar on the browser to download the USB
console driver.
http://www.h3c.com/en/home/USB_Console/
4. Select a driver program according to the operating system you use:
 XR21V1410_XR21B1411_Windows_Ver1840_x86_Installer.EXE—32-bit operating
system.
 XR21V1410_XR21B1411_Windows_Ver1840_x64_Installer.EXE—64-bit operating
system.
5. Click Next on the installation wizard.

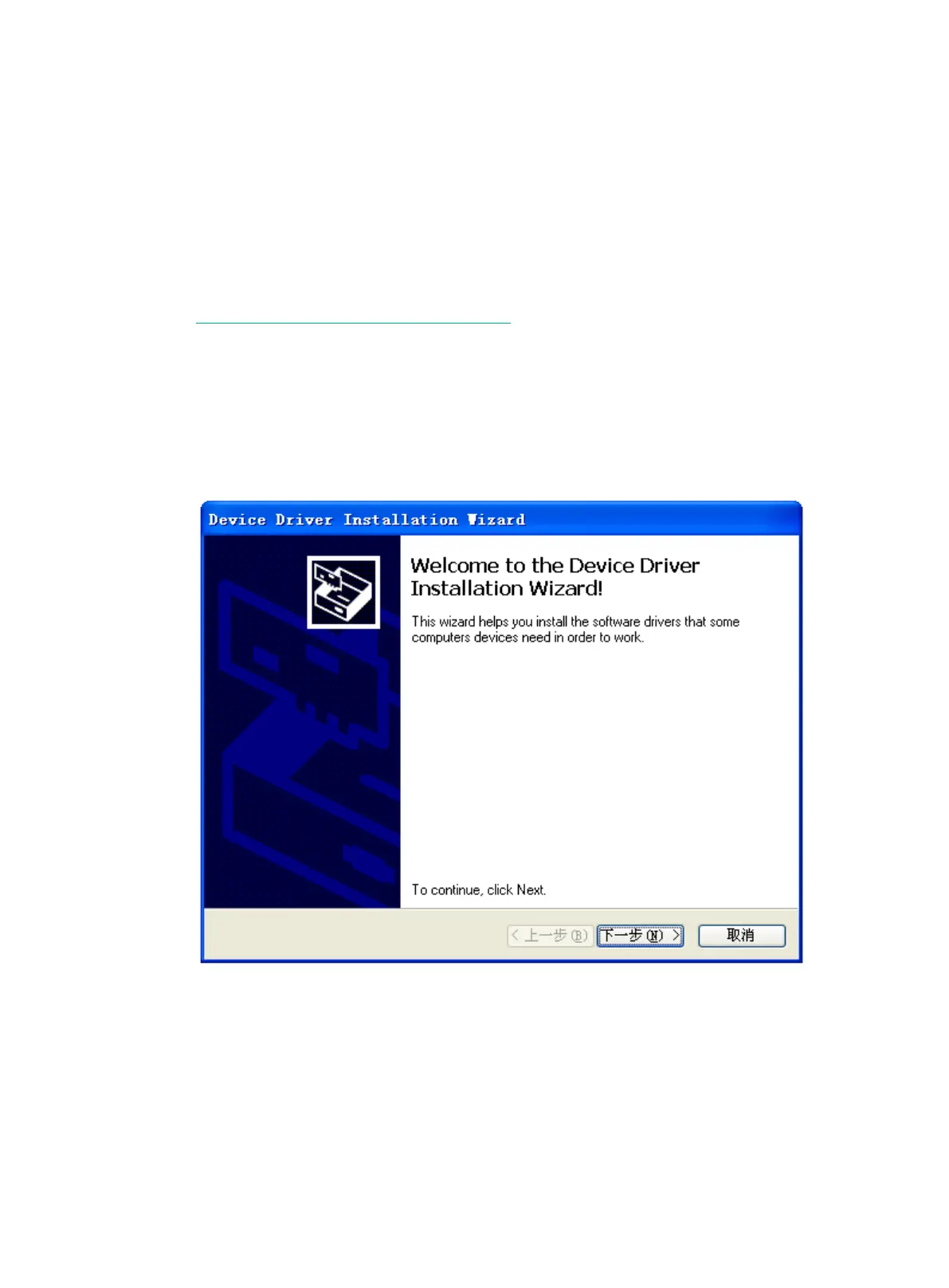

Figure 34 Device Driver Installation Wizard
6. Click Continue Anyway if the following dialog box appears.
