Connecting the AC power cord for the fixed AC power supply
1. Connect the female connector of the AC power cord to the AC-input power receptacle on the
switch. See Figure 24.
2. Use a cable tie to secure the power cord to the handle near the AC-input power receptacle. See
Figure 25.
3. Connect the other end of the power cord to an AC power source.

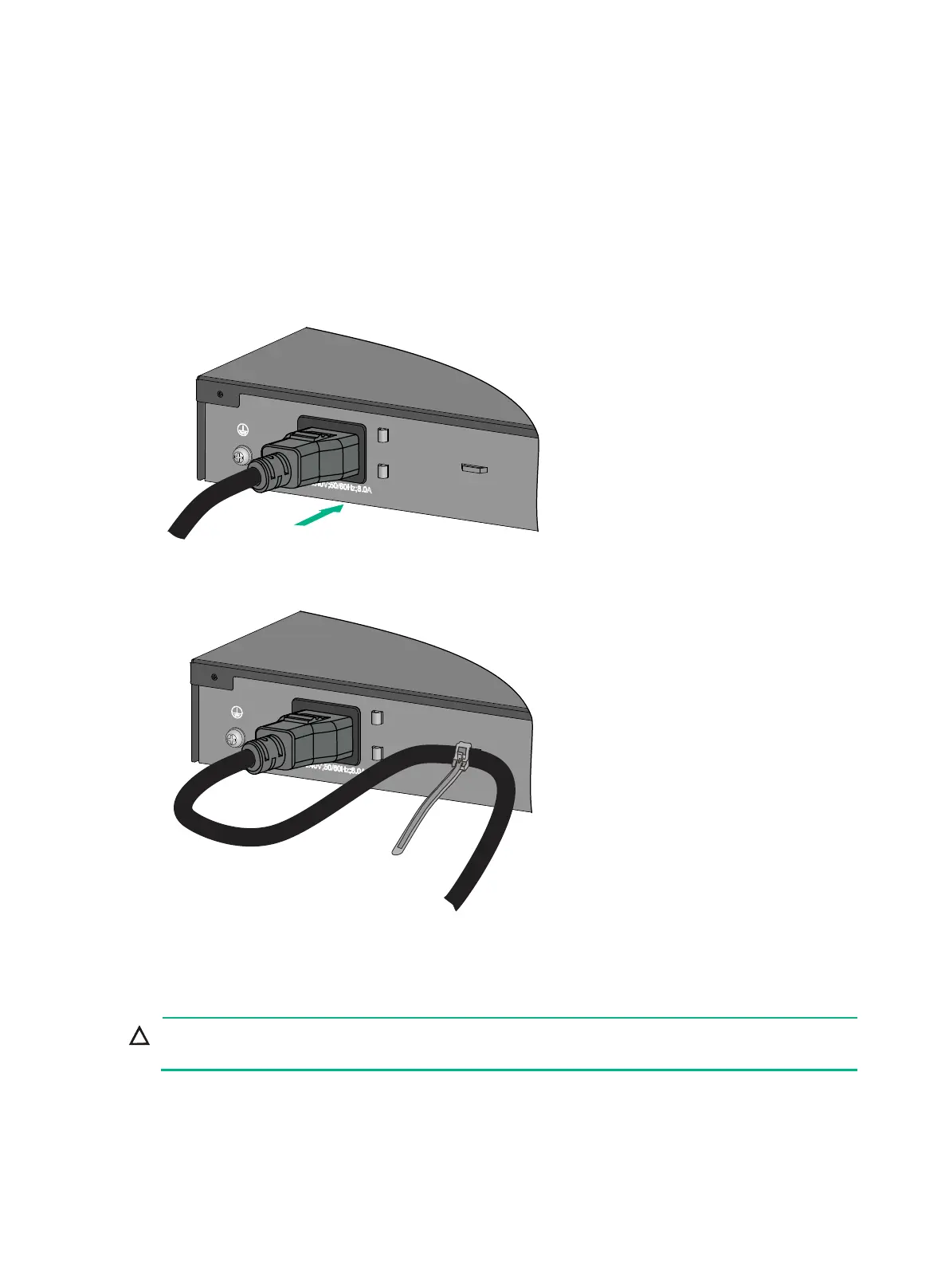

Figure 24 Connecting the AC power cord for the fixed AC power supply (1)
Figure 25 Connecting the AC power cord for the fixed AC power supply (2)
Connecting the DC power cord for the fixed DC power supply
To connect to an H3C recommended RPS, use a power cord compatible with the RPS.
To connect the DC power cord for the fixed DC power supply:
1. Correctly orient the DC power cord connector and insert the connector into the power
receptacle on the power supply.
