42

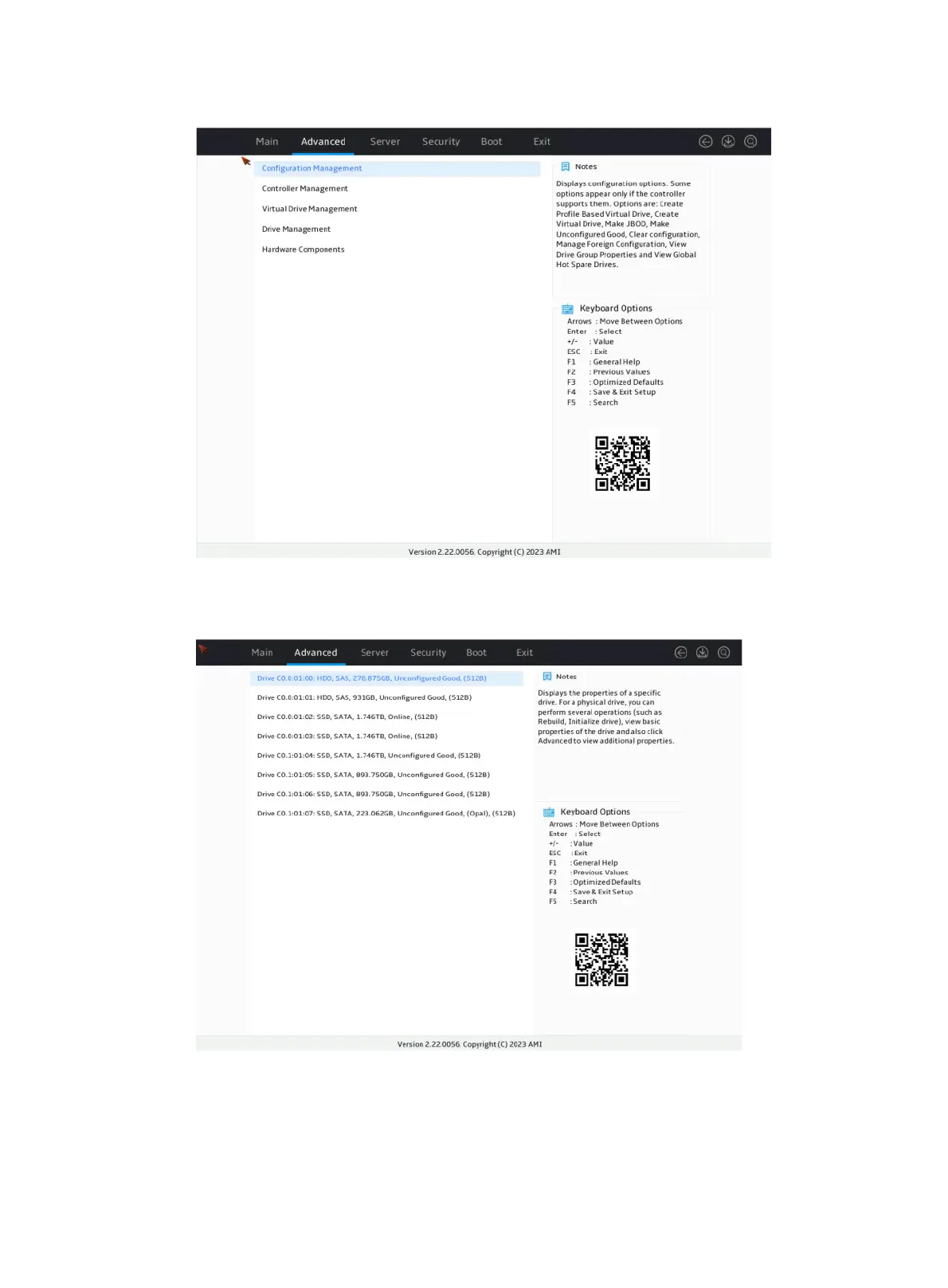

Figure 71 Storage controller configuration screen
2. On the screen as shown in Figure 72, select the target drive and press Enter.
Figure 72 Drive Management screen
3. On the screen as shown in Figure 73, select Operation and press Enter. On the dialog box
that appears, select Assign Global Hot Spare Drive and press Enter.
