133

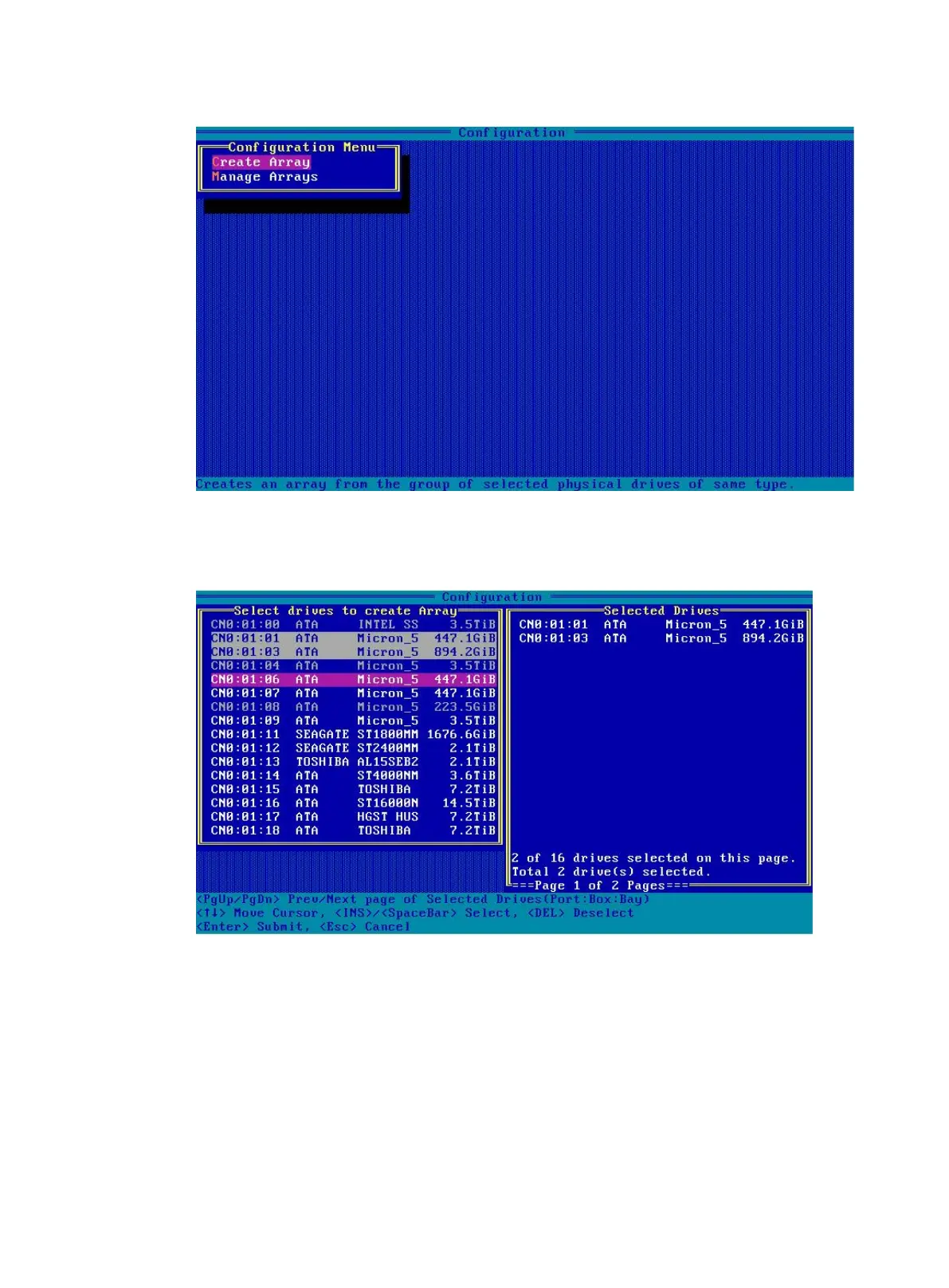

Figure 194 Array Configuration screen
3. On the screen as shown in Figure 195, navigate to the target drive and press Insert or the
space bar to select it. Repeat this step to add more drives, and press Enter.
Figure 195 Selecting the target drive
4. On the screen as shown in Figure 196, set the values for RAID Level, Logical Drive Name,
Strip/Full Stripe Size, Parity Group Count, Build Method, Size, and Acceleration Method.
Then, select Done and then press Enter. For more information about the parameter
description, see Table 6.
