140

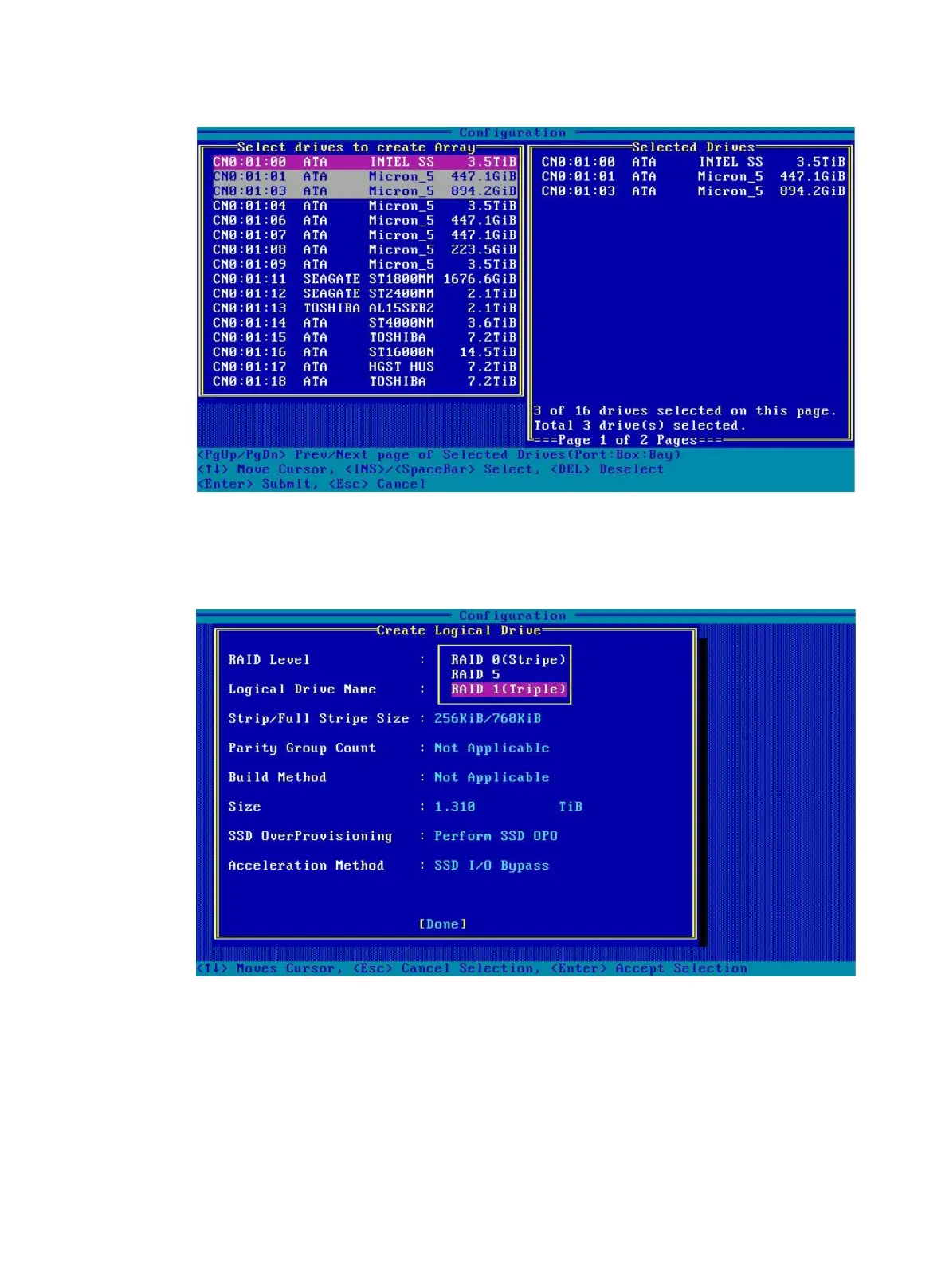

Figure 207 Selecting drives
4. Set the values for RAID Level, Logical Drive Name, Strip/Full Stripe Size, Parity Group
Count, Build Method, Size, and Acceleration Method. Then, select Done and then press
Enter. For more information about the parameter description, see Table 6.
Figure 208 Configuring RAID1 ADM parameters
5. Select Manage Arrays and press Enter.
