149

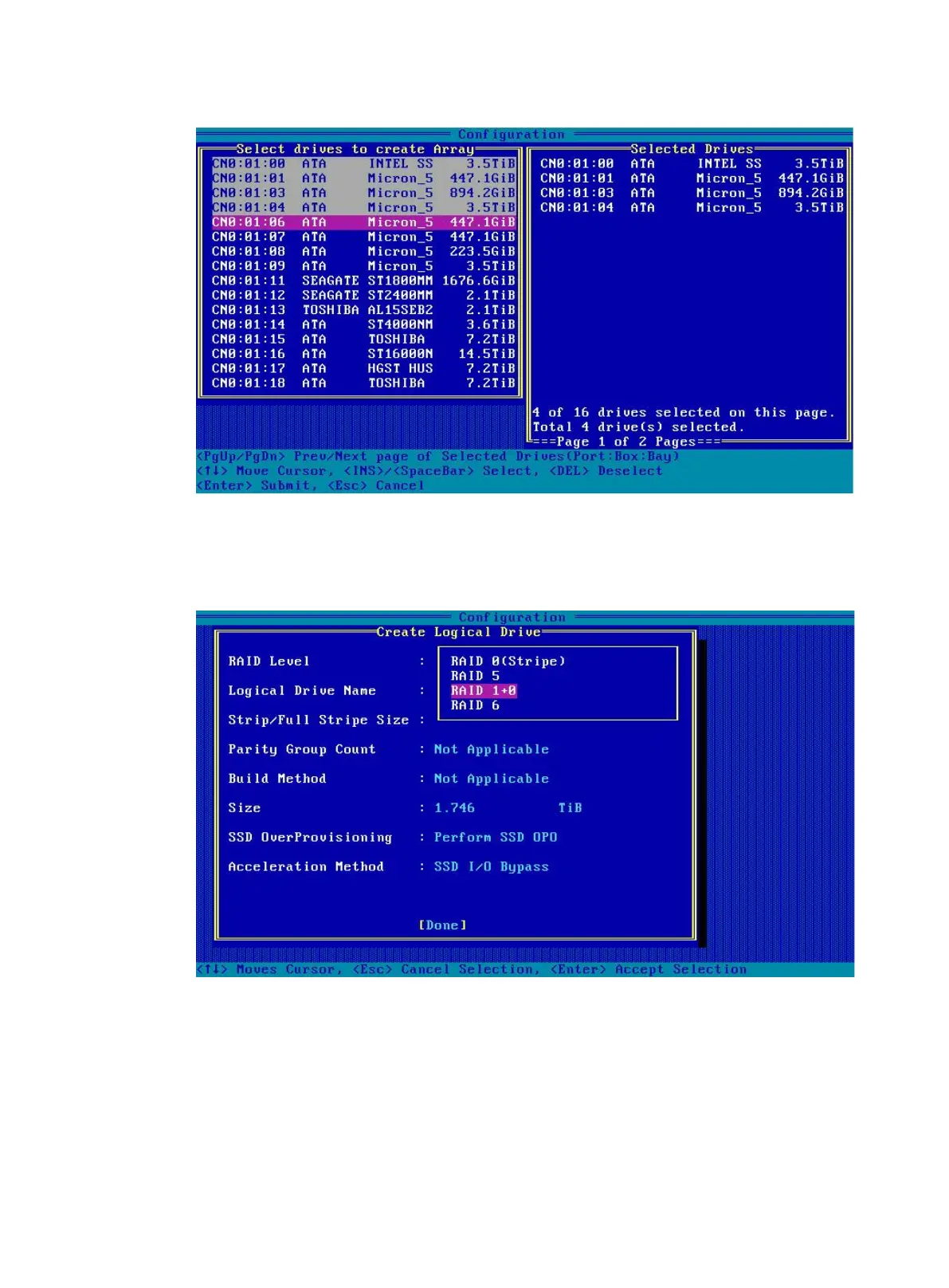

Figure 225 Selecting drives
4. Set the values for RAID Level, Logical Drive Name, Strip/Full Stripe Size, Parity Group
Count, Build Method, Size, and Acceleration Method. Then, select Done and then press
Enter. For more information about the parameter description, see Table 6.
Figure 226 Configuring RAID10 parameters
5. Select Manage Arrays and press Enter.
