406
maximum number of users allowed in high-priority access categories, which is 10 in this example, the
request is allowed. The system decreases the priority of the packets from the clients exceeding the
maximum number of high-priority clients.
Static rate limiting configuration example
Network requirements
As shown in Figure 433, two clients access the WLAN through a SSID named service1.
Limit the maximum bandwidth per client to 128 kbps on the AP.

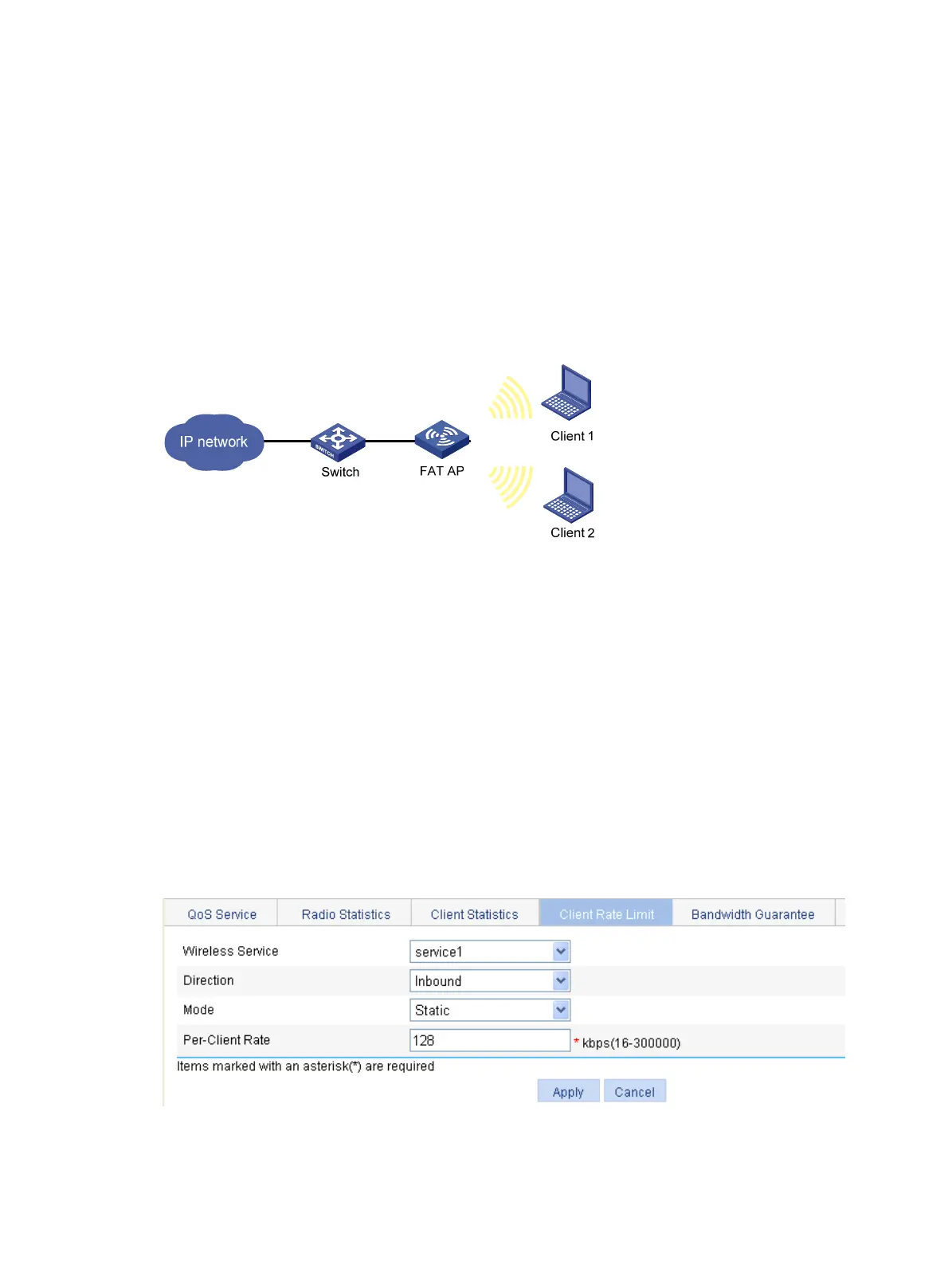

Figure 433 Network diagram
Configuration procedure
1. Configure the wireless service.
For the configuration procedure, see "Configuring wireless service." You can follow the related
configuration example to configure the wireless service.
2. Configure static rate limiting:
a. Select QoS > Wireless QoS from the navigation tree.
b. Click the Client Rate Limit tab.
c. Click Add to enter the page for configuring rate limit settings for clients.
d. Select service1 from the wireless service list. Select Inbound from the Direction list. Select Static
from the Mode list. Enter 128 in the Per-Client Rate field.
e. Click Apply.
Figure 434 Configuring static rate limiting
Verifying the configuration
• Client1 and Client2 access the WLAN through an SSID named service1.
