1. When only Client1 accesses the WLAN through SSID service2, its traffic can pass through at a rate
as high as 8000 kbps.
2. When both Client1 and Client2 access the WLAN through SSID service2, their traffic flows can
each pass through at a rate as high as 4000 kbps.
Bandwidth guarantee configuration example
Network requirements
As shown in Figure 437, three clients use wireless services research, office, and entertain to access the
wireless network.
To make sure that the enterprise network works properly, guarantee the office service 20% of the
bandwidth, the research service 80%, and the entertain service none.

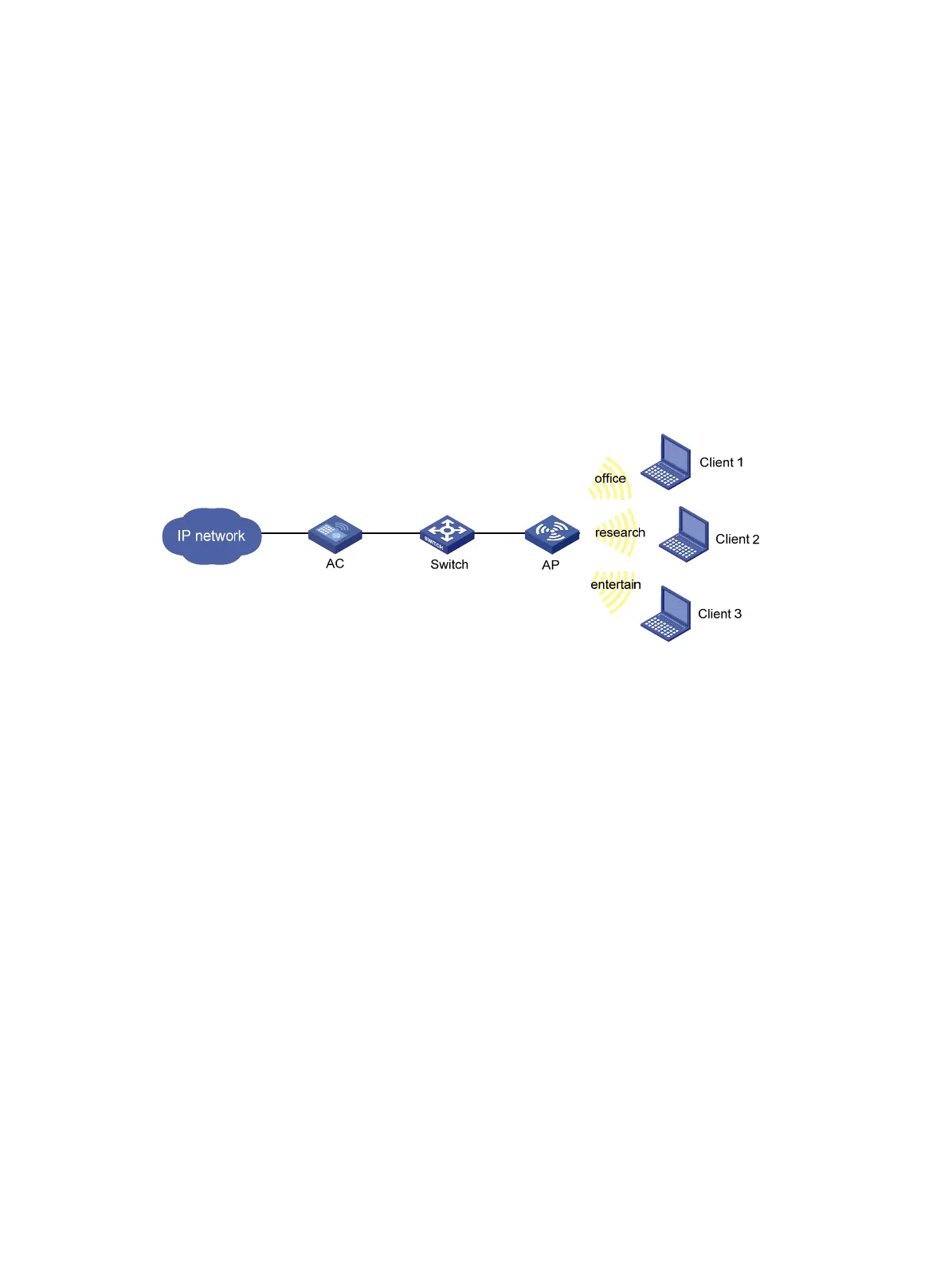

Figure 437 Network diagram
Configuration procedure
1. Configure the wireless services.
For the configuration procedure, see "Configuring wireless service." You can follow the related
configuration example to configure the wireless services.
2. Configure bandwidth guaranteeing:
a. Select QoS > Wireless QoS from the navigation tree.
b. Click the Bandwidth Guarantee tab to enter the page for configuring bandwidth guarantee.
c. Use the default reference radio bandwidth for 802.11a.
d. Click Apply.
