Hach sc100 1720E User Manual

10
Installation

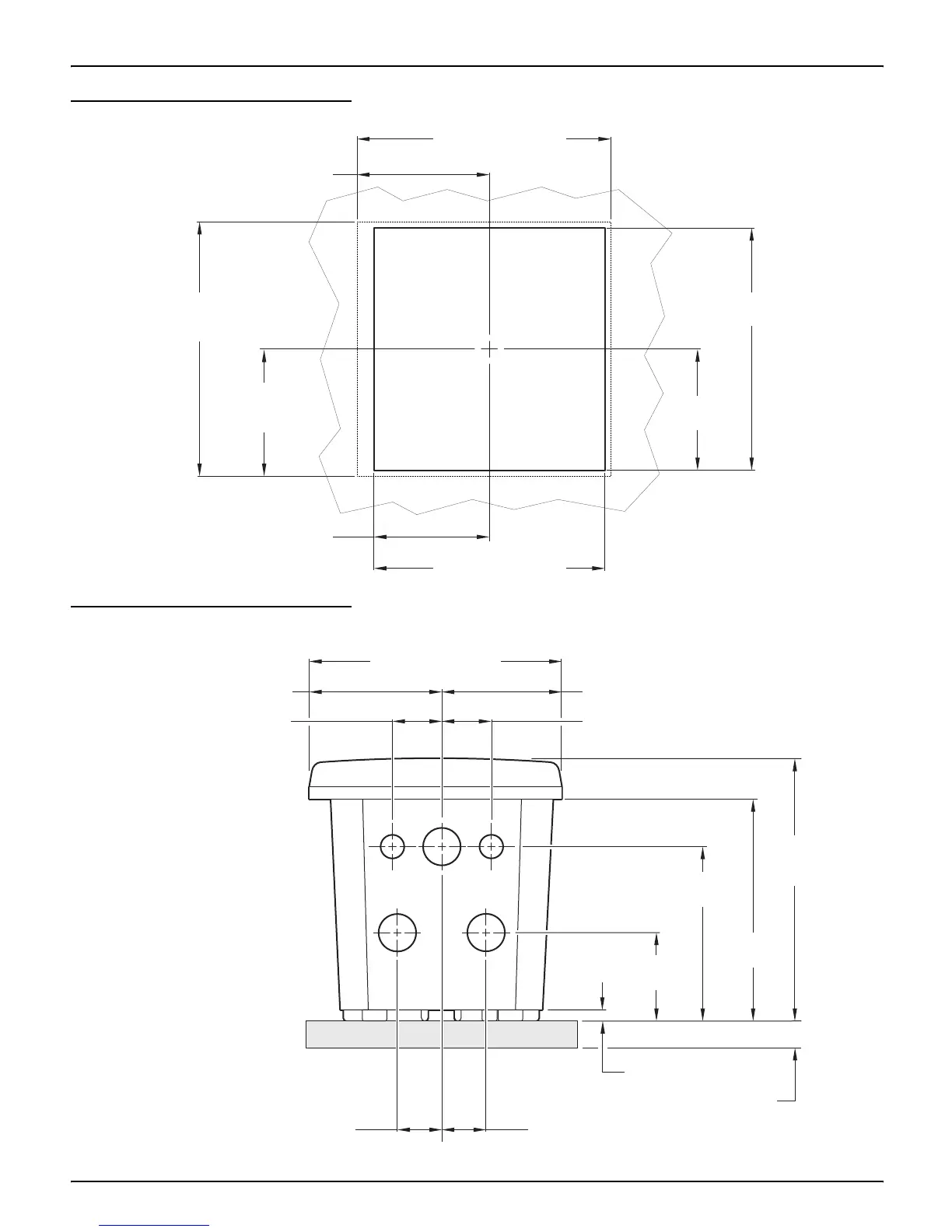

Figure 5 Panel Mount Cut-out Dimensions
Figure 6 Conduit Hole Dimensions
133 mm 5.25 inches
144 mm 5.67 inches
(ref only)
135 mm
5.31 inches
144 mm
5.67 inches
(ref only)
67.4 mm
2.65 inches
72 mm
2.835 inches
(ref only)
66.67 mm 2.625 inches
75 mm 2.955 inches
(ref only)
6.35 mm 0.25 inch
15.24 mm 0.60 inch
28.57 mm 1.125 inches
75.07 mm 2.955 inches
127 mm
5.00 inches
150 mm
5.91 inches
(ref only)
99.31 mm
3.91 inches
50.8 mm
2.00 inches
28.57 mm 1.125 inches
68.96 mm 2.715 inches
25.4 mm 1.00 inches25.4 mm 1.00 inches
144 mm 5.67 inches

Hach sc100 1720E Specifications

General

Model	sc100 1720E
Measurement Parameter	Turbidity
Resolution	0.01 NTU
Detector	Silicon Photodiode
Repeatability	±1% of reading or ±0.01 NTU, whichever is greater
Power Supply	100 - 240 VAC, 50/60 Hz
Measurement Principle	Nephelometric
Light Source	LED
Operating Temperature	0 to 50 °C (32 to 122 °F)
Output	4-20 mA
Enclosure Rating	NEMA 4X/IP66
Accuracy	±2% of reading or ±0.02 NTU, whichever is greater
