Installation
3.1.3 Mounting the Controller
Attach the controller to a rail or wall or mount it in a panel. Supplied mounting
hardware is shown in Figure 9, Figure 10, and Figure 11.

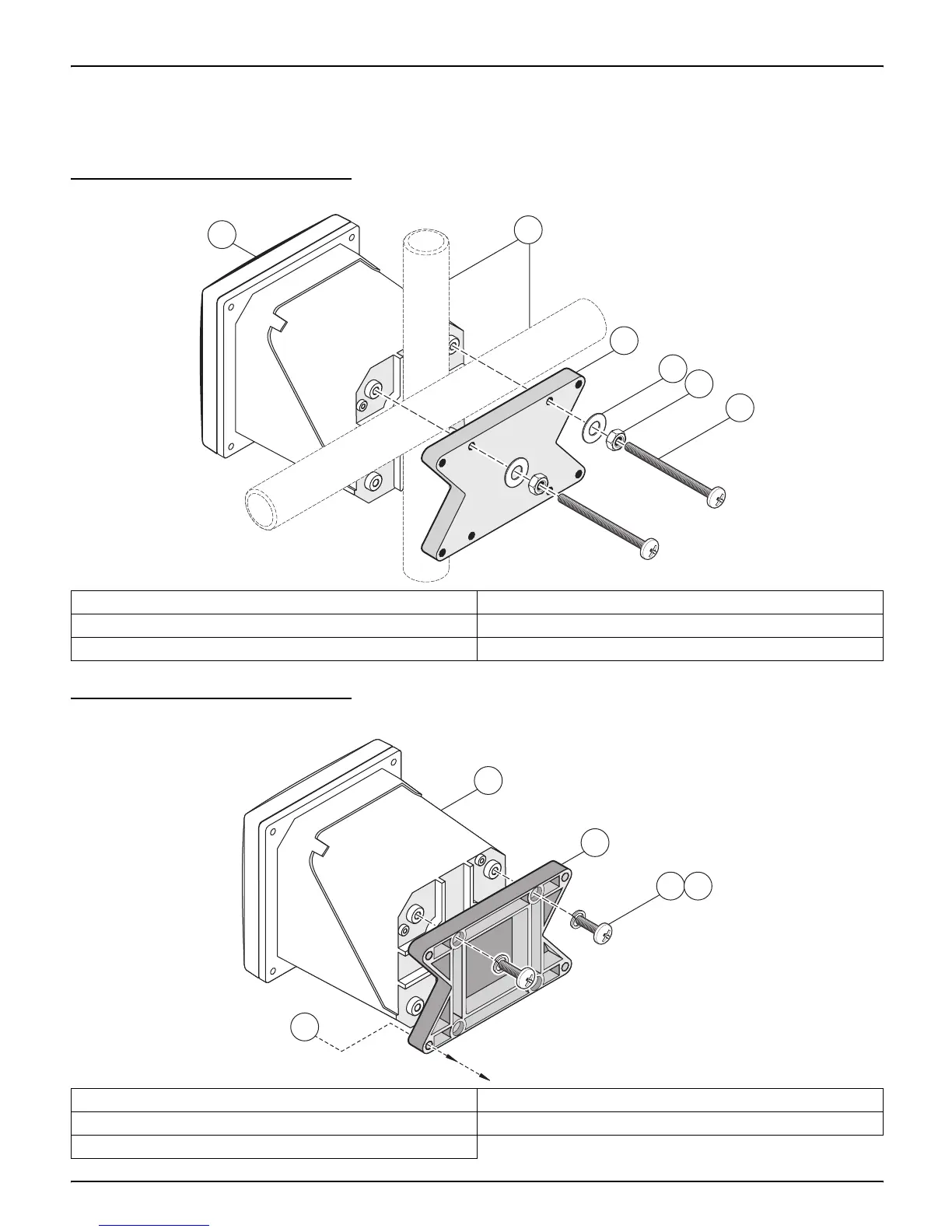

Figure 9 Vertical or Horizontal Pipe Mounting the Controller
Figure 10 Wall Mounting the Controller
1. Controller 4. Flat washer, ¼-inch I.D. (4), Cat. No. 8H1346
2. Pipe (vertical or horizontal) 5. Hex nut, M6 (4), Cat. No. 5867300
3. Bracket, pipe mounting, Cat. No. 1000C4F3217-101 6. Pan head screw, M6 x 1.0 x 100 mm (4), Cat. No. 5867400
1. Controller 4. Pan head screw, M6 x 1.0 x 20 mm (4), Cat. No. 5867400
2. Bracket, Cat. No. 1000C4F3217-101 5. Customer-supplied hardware for wall mounting
3. Lock washer, ¼-inch I.D., Cat. No. 8H1336
3
1
2
4
5
6
3
4
2
1
5

Hach sc100 1720E Specifications

General

Model	sc100 1720E
Measurement Parameter	Turbidity
Resolution	0.01 NTU
Detector	Silicon Photodiode
Repeatability	±1% of reading or ±0.01 NTU, whichever is greater
Power Supply	100 - 240 VAC, 50/60 Hz
Measurement Principle	Nephelometric
Light Source	LED
Operating Temperature	0 to 50 °C (32 to 122 °F)
Output	4-20 mA
Enclosure Rating	NEMA 4X/IP66
Accuracy	±2% of reading or ±0.02 NTU, whichever is greater
