Hach sc100 1720E User Manual

Installation
9

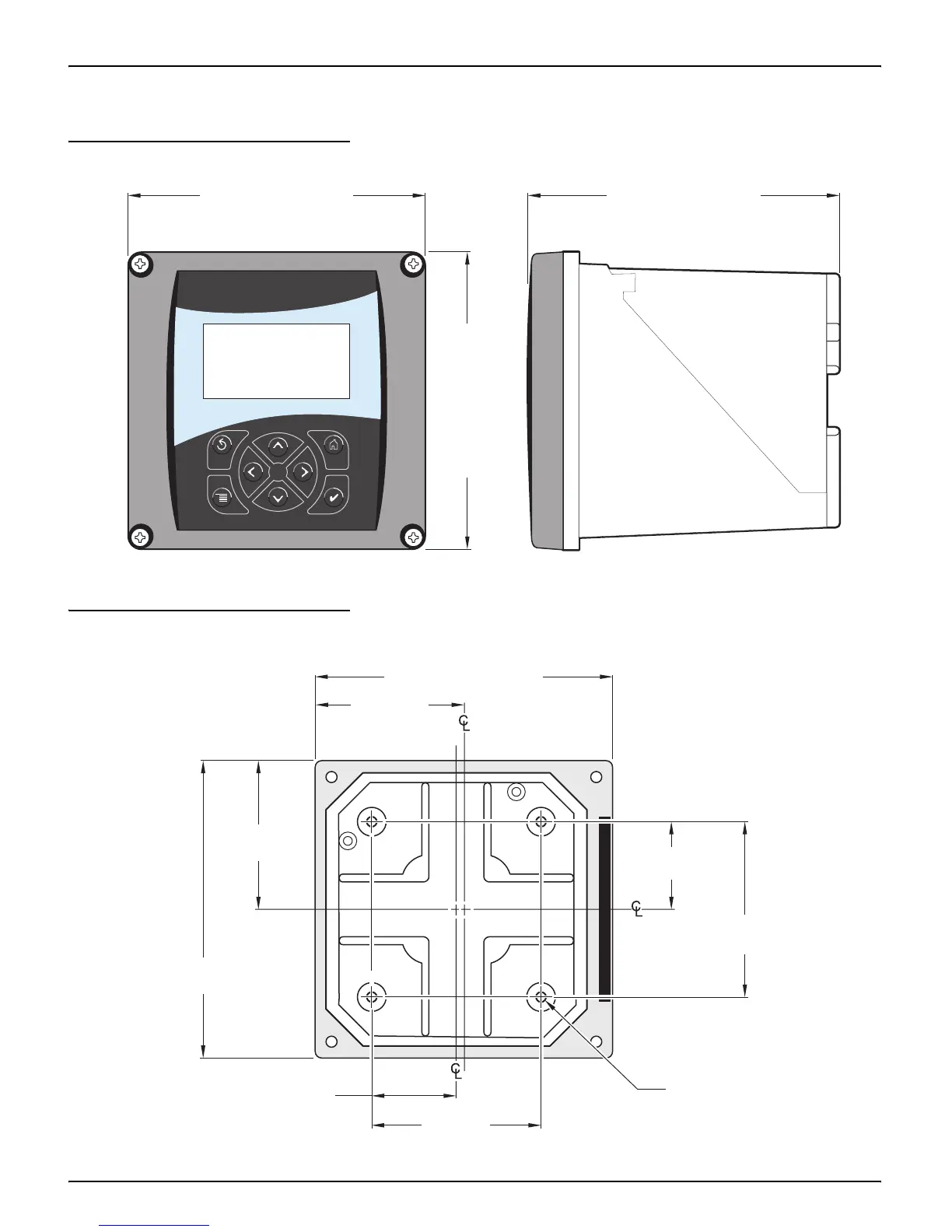

3.1.1 Controller Dimension Illustrations
Figure 3 Controller Dimensions
Figure 4 Controller Mounting Dimensions
sc100
144.0 mm (5.67 inches) 150.0 mm (5.91 inches)
144.0 mm (5.67 inches)
80.27 mm
(3.16 inches)
144.02 mm (5.67 inches)
80.27 mm
(3.16 inches)
144.02 mm
(5.67 inches)
72.01 mm
(2.84 inches)
72.01 mm
(2.84 inches)
40.14 mm (1.58 inches)
M6 x 1.0
40.14 mm
(1.58 inches)

Hach sc100 1720E Specifications

General

Model	sc100 1720E
Measurement Parameter	Turbidity
Resolution	0.01 NTU
Detector	Silicon Photodiode
Repeatability	±1% of reading or ±0.01 NTU, whichever is greater
Power Supply	100 - 240 VAC, 50/60 Hz
Measurement Principle	Nephelometric
Light Source	LED
Operating Temperature	0 to 50 °C (32 to 122 °F)
Output	4-20 mA
Enclosure Rating	NEMA 4X/IP66
Accuracy	±2% of reading or ±0.02 NTU, whichever is greater
