138 Chapter 8, Records
P/N 120745-IE, Manual revision: AA Haemonetics
®
Cell Saver
®
Elite
®
User Manual

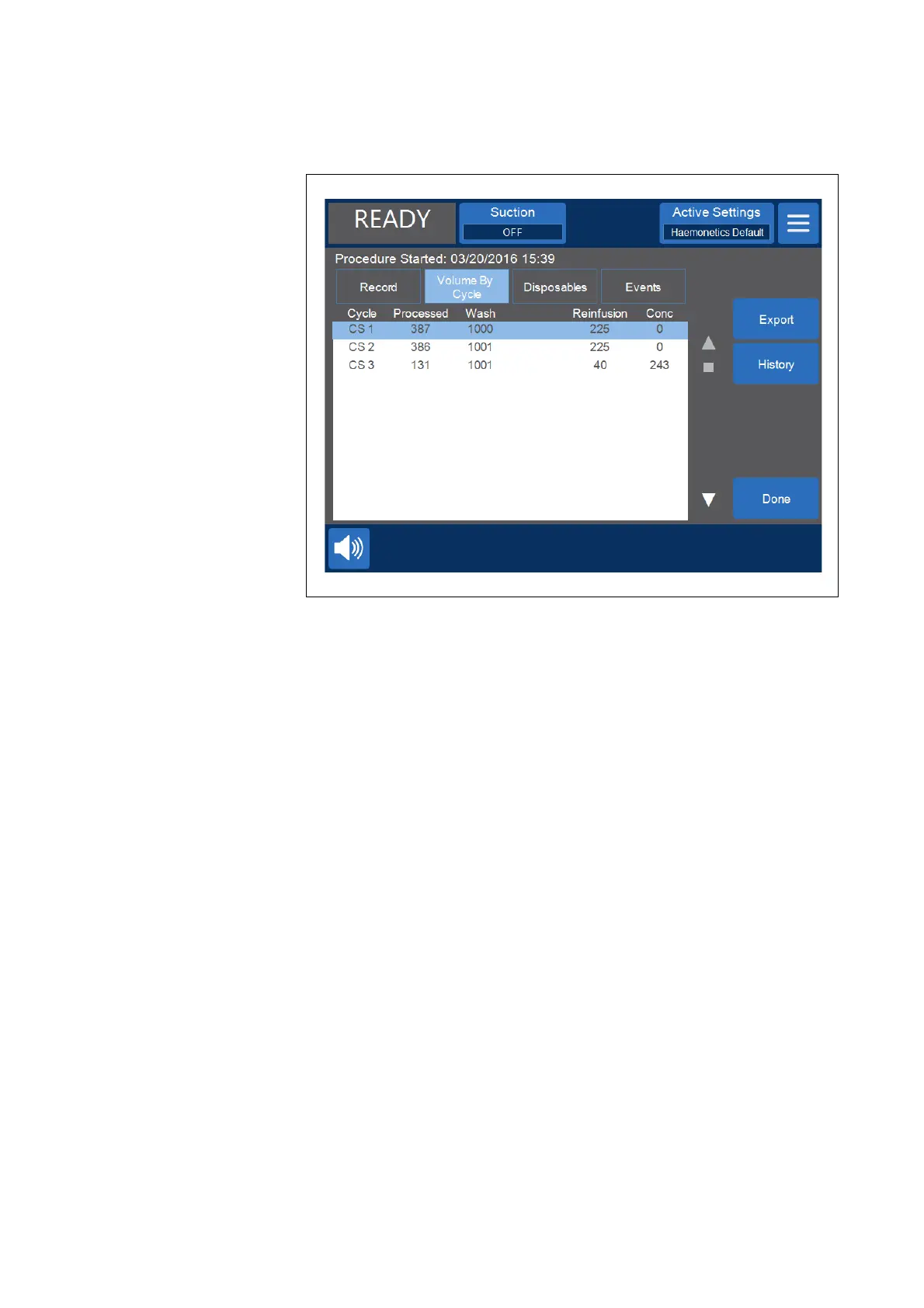

Figure 69, Example of the Volume By Cycle tab
If concentrate is used during the procedure, the volume of RBCs removed from
the RBC bag during the concentrate phase will be shown next to the reinfusion
volume for that cycle, as shown in Figure 69. The total reinfusion volume for
the procedure is equal to the sum of the reinfusion volume of each individual
cycle, minus the sum of the Conc volume for each cycle.
Disposables
Tab
The Disposables tab displays information about the disposable sets and
solutions used during a procedure. This information includes disposable type,
list number (REF), lot number, and expiration date. This information can be
entered using the barcode reader from the Bowl Selection screen when the
device is first powered or from the Disposables tab.
