Haemonetics Cell Saver Elite - Sequestration Set

Chapter 3, Disposable Set Description 59
Haemonetics
®
Cell Saver
®
Elite
®
User Manual P/N 120745-IE, Manual revision: AA
Sequestration Set
The Sequestration set allows the sequestration of platelets before the
beginning of a Cell Salvage procedure. The parts of the Sequestration set
include the:
 Blood bag adaptor harness: the tubing that connects the blood bags
to the red line of the processing set. At the end of Sequestration, the user
removes the upper portion of the blood bag adaptor harness using the
twist-lock connector.
 Collection bag harness: the collection bags and air bag

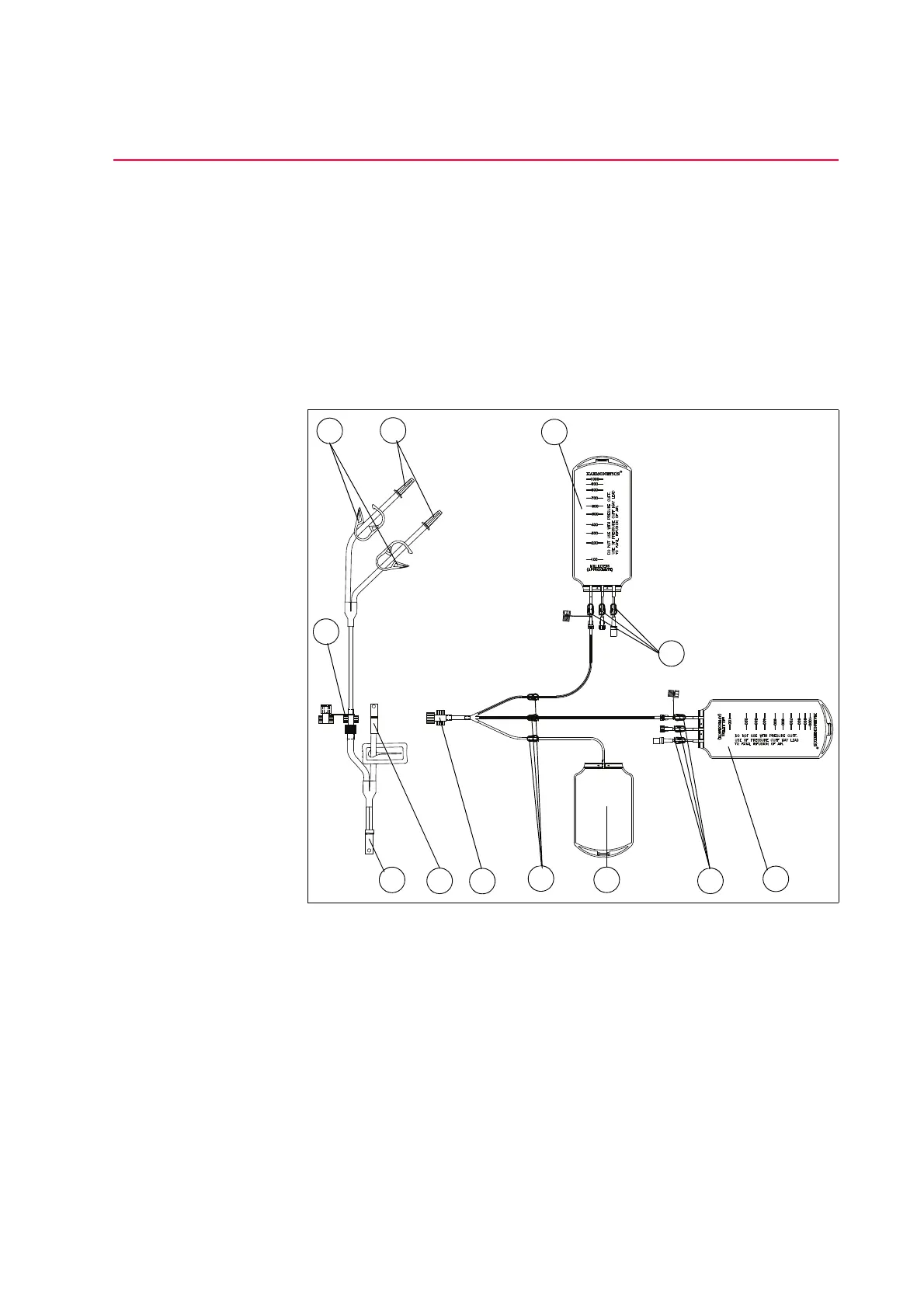

Figure 30, Example of a Sequestration set
1.
8.
10.
5.
4.
6.
7.
9.
10.
9.
3.
2.
1. Blood bag line ratchet
clamps
2. Blood bag spikes
3. Twist-lock connector
4. Red line connection
5. Reservoir drain port
connection
6. Effluent line connection
7. Yellow, blue, and clear
line ratchet clamps
8. Air bag
9. Collection bag ratchet
clamps
10. Collection bags
