58 Chapter 3, Disposable Set Description
P/N 120745-IE, Manual revision: AA Haemonetics
®
Cell Saver
®
Elite
®
User Manual

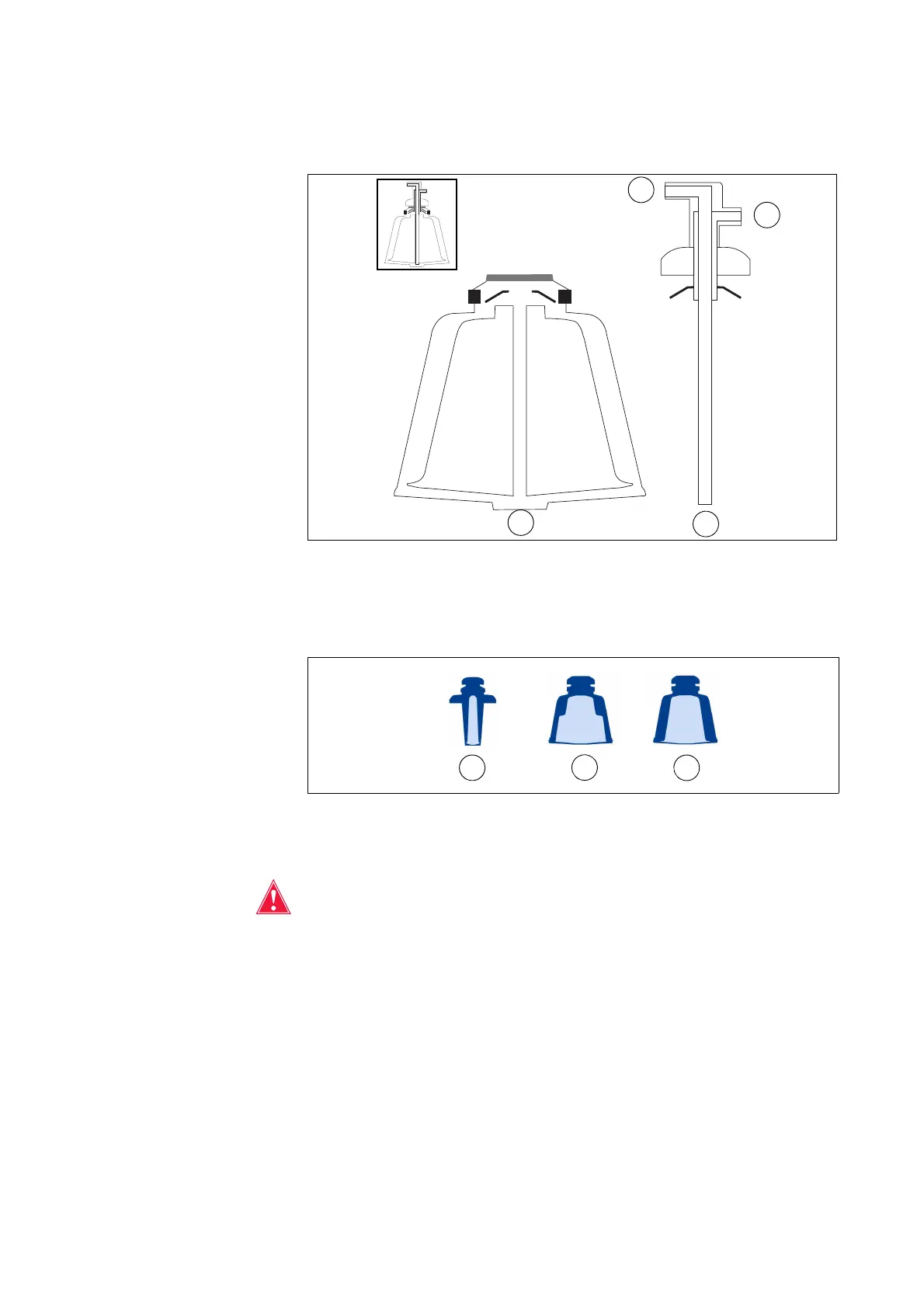

Figure 28, Example of the Latham bowl subassemblies
There are three bowl sizes: 70mL, 125mL, and 225mL. The 125mL and 225mL
bowls are Latham bowls. The 70mL bowl is uniquely shaped to efficiently
separate smaller volumes of fluid.
Figure 29, Example of the three bowl sizes
Centrifuge Chuck Adaptor
Warning: Do not grease any part of the centrifuge or centrifuge chuck
adaptor. If grease has been applied to the chuck, contact the Haemonetics
hotline immediately.
The 70mL bowl requires a centrifuge chuck adaptor to correctly load the bowl.
The chuck adaptor is a white plastic cylinder that snaps into the centrifuge
chuck. Install the chuck adaptor before loading the processing set.
1. Inlet
2. Outlet
3. Rotating outer subassembly
4. Stationary inner
subassembly
1.
2.
3.
4.
1.
2.
3.
1. 70mL bowl
2. 125mL bowl
3. 225mL bowl
