Reservoir
Reservoir
The collection reservoir holds the unprocessed salvaged blood from the field.
The top of the reservoir contains a vacuum connection and three filtered inlet
ports for A&A line and post-op suction set connections. The reservoir also has
a drain port on the bottom and an internal filter. It connects to the processing
set via the reservoir drain port.

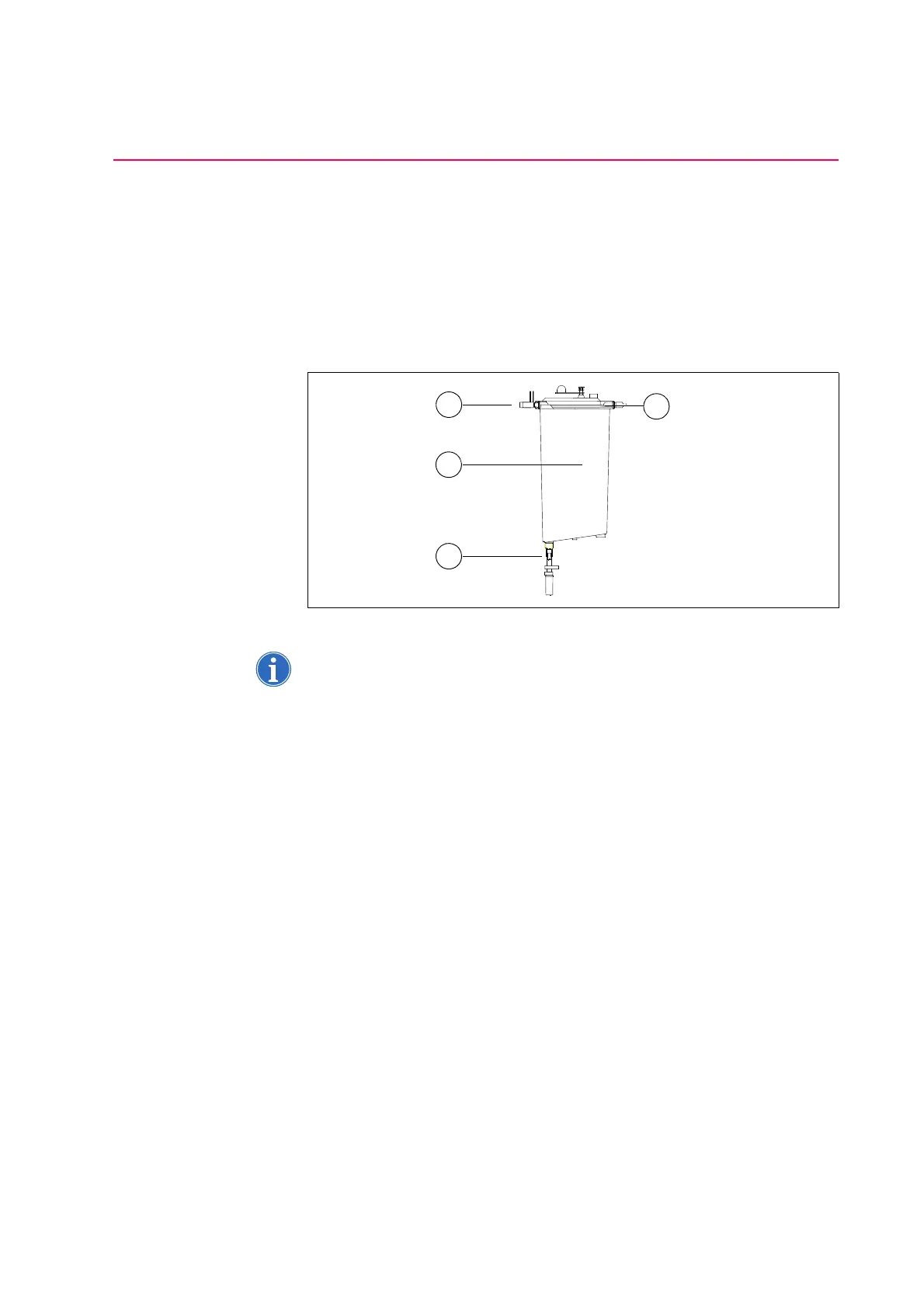

Figure 23, Example of a reservoir
Note: Softshell reservoirs (LN 00300-MTSA and LN 00240-MTSA) must be
used with the LN 00208-MT A&A line and the reusable reservoir holder 02100-
MT.
1.
2.
3.
4.
1. Filtered inlet ports (x3)
2. Reservoir
3. Reservoir drain port
4. Vacuum line connection
