9. Extensions and connections
The system can be extended. The following connections are available on the
FT 200 / FT 200 CAP furniture terminal:

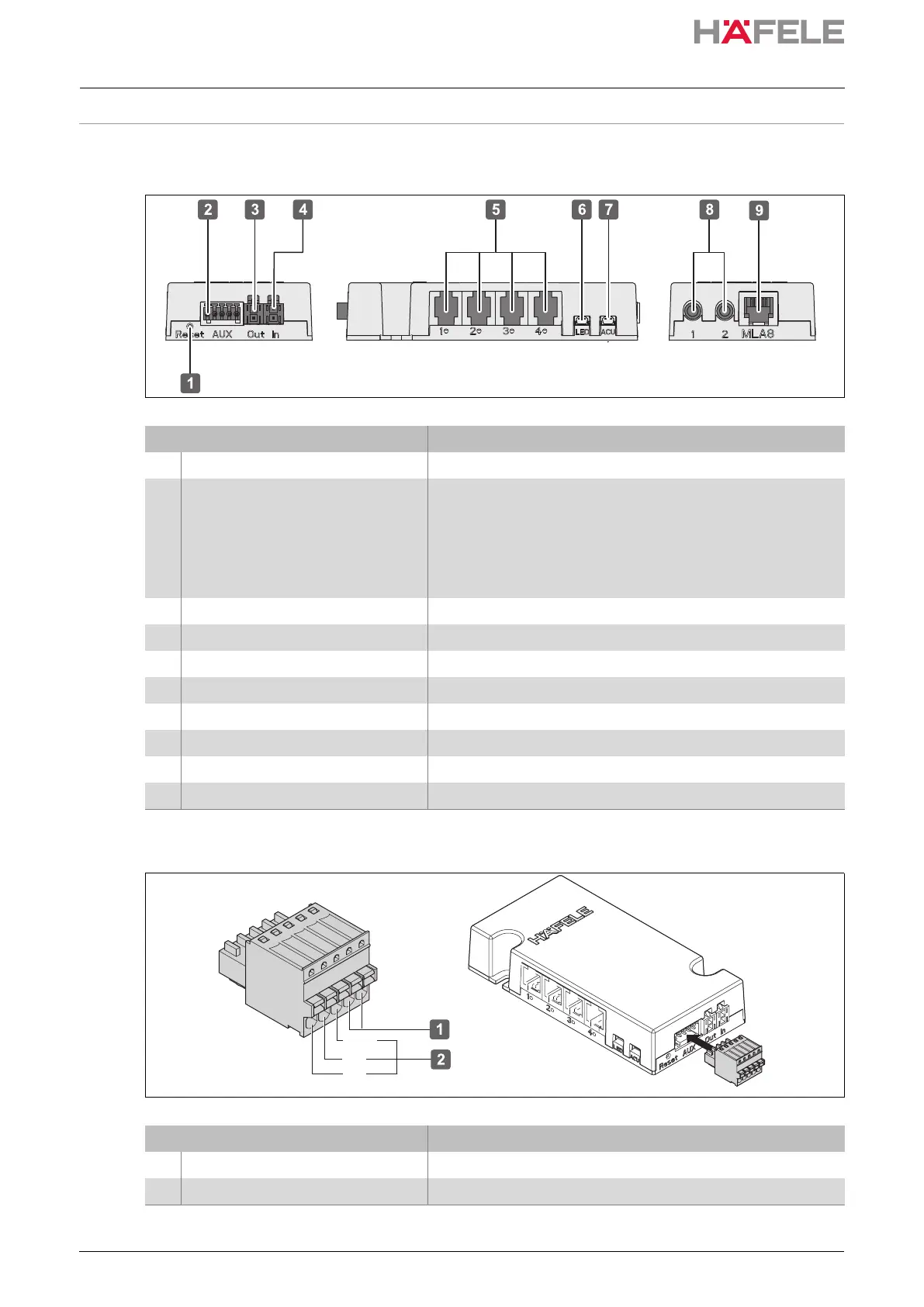

Fig. 2: FT 200 / FT 200 CAP connections
9.1 Connections to the potential free input/output
Fig. 3: Connections to the potential free input/output
Connection Description
1 Reset button • Reset
 12. Reset, page 76
2 Potential-free input/output • Relay output port NO, NC, COM
• Digital input port
• Connection via separate terminal clamp (green)
• Macros required
•
 10. Installation examples, page 71
3 Power supply output •
 3.2 Technical data, page 49
4 Power supply input •  3.2 Technical data, page 49
5 Furniture lock EFL 3 / EFL 3C • Basic components
 3.1 System overview, page 46
5 MLA 6P multi-lock adapter • Extension  3.1 System overview, page 46
6 Signal generator, visual (LED) • Extension
 3.1 System overview, page 46
7 Acoustic signal generator (105 dB) • Extension  3.1 System overview, page 46
8 Antenna FAN 200 • Basic components
 3.1 System overview, page 46
9 Multi-lock adapter MLA 8 • Extension  3.1 System overview, page 46
Connection Description
1 Input • e.g. switches
2 NO, NC, COM • Relay (e.g. for alarm system; macro required)
COM
NC
NO
