10.4 Several MLA 6P at the FT 200 / FT 200 CAP in keyed alike operation

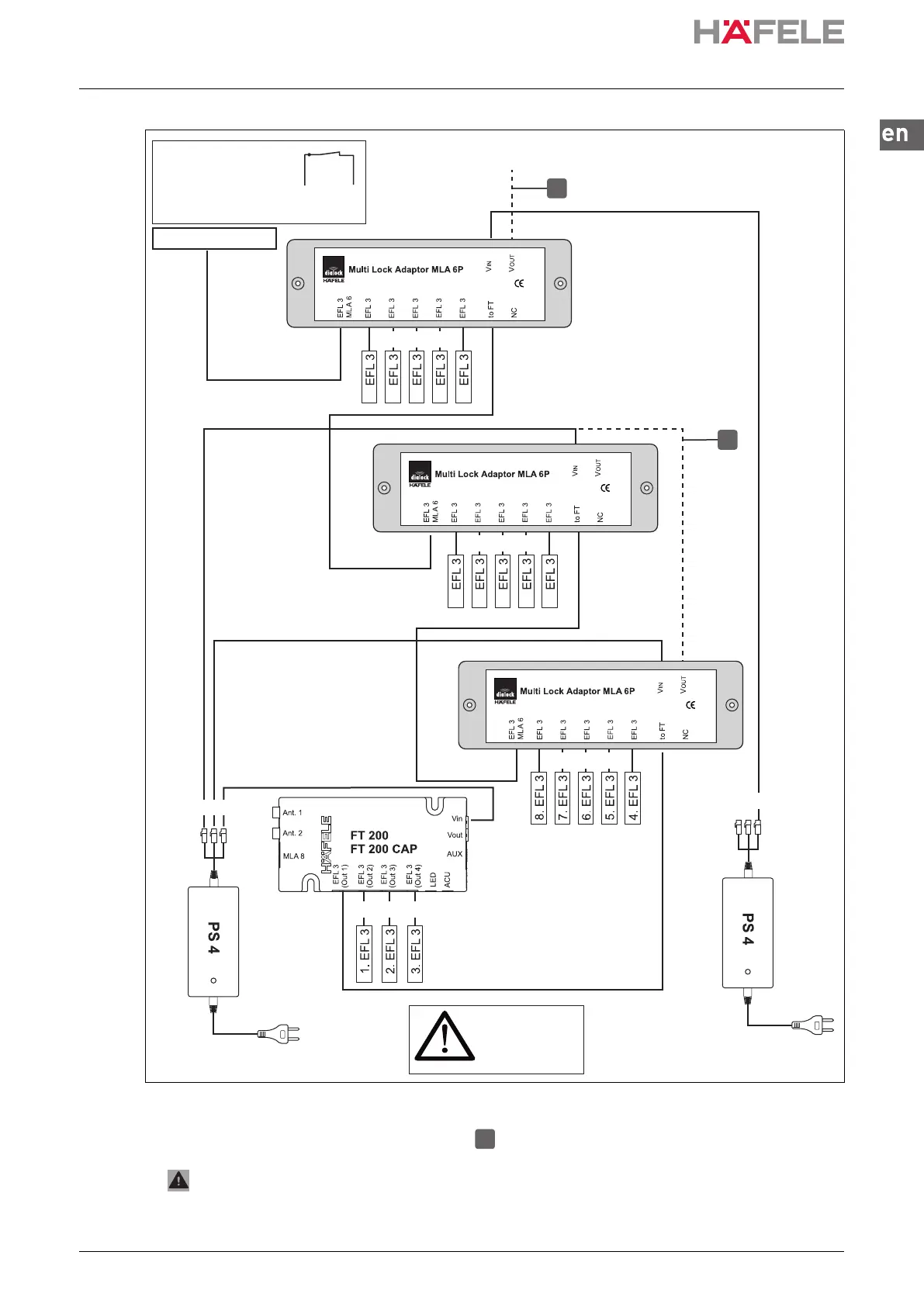

Fig. 7: Installation example 4 - Several MLA 6P at the FT 200 / FT 200 CAP in keyed alike operation.
The voltage supply of multi-lock adapter MLA 6P can be provided directly via power supply unit
PS 4 or (max. 2x) from MLA 6P to MLA 6P .
Attention: please note the rated values of the system components!
3.2 Technical data, page 49
max. 10 m
14. 15. 16. 17. 18.
max. 10 m
9.
10. 11. 12. 13.
max. 10 m
max. 10 m
PS 4 (max. 2,5 A)
to FT / n x MLA 6P
max. 10 m
max. 10 m
A
A
NC
24 V, 1 A
Schaltkontakt, ext.
Monitoring contact, ext.
Contact de supervision, ext.
Contato di monitaggio, ext.
Contacto del supervision, ext.
Contato de monitoramento, ext.
